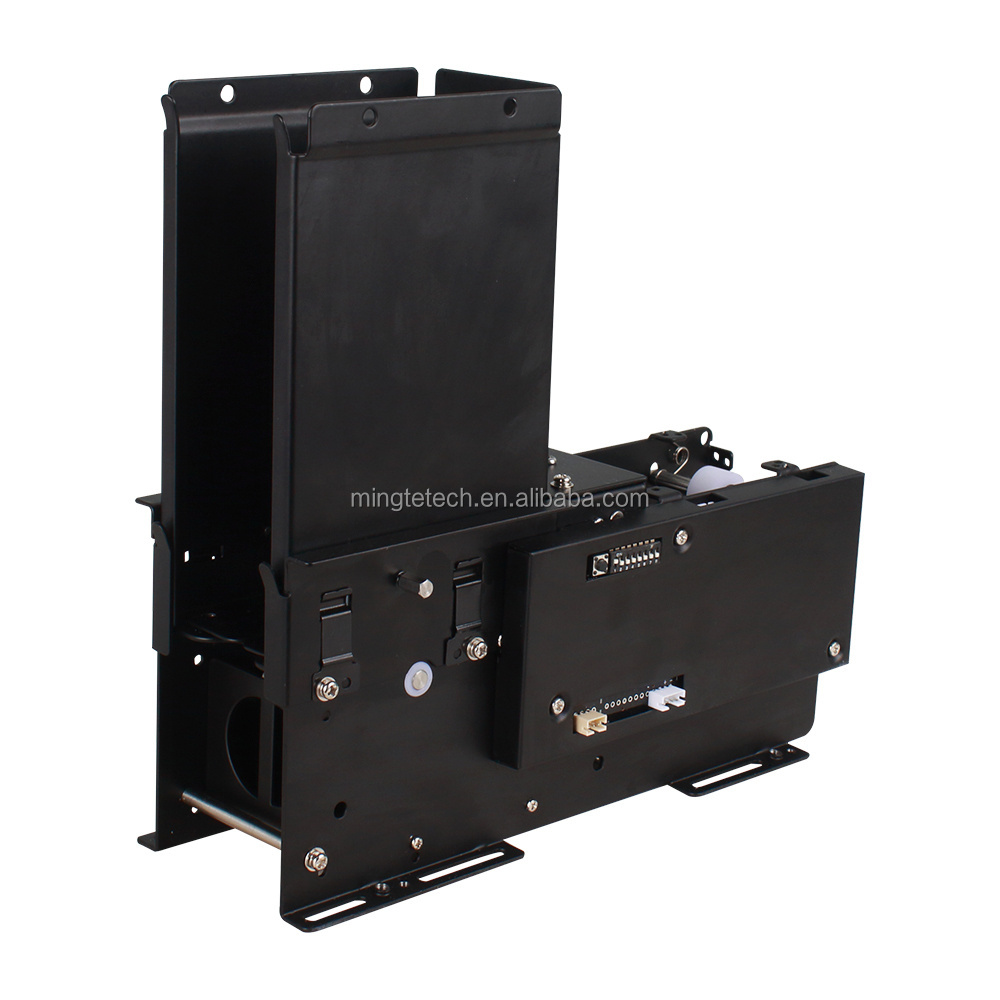

RS232 Ticket Vending/Automatic Vending Card Dispenser And Issuing Machine for Parking System
RS232 Ticket Vending/Automatic Vending Card Dispenser And Issuing Machine for Parking System
RS232 Ticket Vending/Automatic Vending Card Dispenser And Issuing Machine for Parking System
RS232 Ticket Vending/Automatic Vending Card Dispenser And Issuing Machine for Parking System
RS232 Ticket Vending/Automatic Vending Card Dispenser And Issuing Machine for Parking System
RS232 Ticket Vending/Automatic Vending Card Dispenser And Issuing Machine for Parking System
RS232 Ticket Vending/Automatic Vending Card Dispenser And Issuing Machine for Parking System
RS232 Ticket Vending/Automatic Vending Card Dispenser And Issuing Machine for Parking System

RS232 Ticket Vending/Automatic Vending Card Dispenser And Issuing Machine for Parking System

FOB Reference Price: Get Latest Price
≥1 Pieces
US $135
≥101 Pieces
US $130
≥300 Pieces
US $125
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty:
1 Year
Place of Origin:
Guangdong, China
Brand Name:
Mingte
Power:
other
Product name:
Card dispensing/collecting
Application:
Automatic Vending Machine
Power supply:
DC 24V±5%
Capacity:
>25 pcs
Interface:
RS-232,I/O, TTL
Type Card:
Contactless IC Cards
Weight:
2120g
Lifetime:
>2000000 Cycles
Bezel:
With Shutter&Multi Bezel
Card Hopper Capacity:
180pcs

Quick Details

Type:
Vending Machines
Dimension:
other
After-sales Service Provided:
Online support
Warranty:
1 Year
Place of Origin:
Guangdong, China
Brand Name:
Mingte
Power:
other
Product name:
Card dispensing/collecting
Application:
Automatic Vending Machine
Power supply:
DC 24V±5%
Capacity:
>25 pcs
Interface:
RS-232,I/O, TTL
Type Card:
Contactless IC Cards
Weight:
2120g
Lifetime:
>2000000 Cycles
Bezel:
With Shutter&Multi Bezel
Card Hopper Capacity:
180pcs
Overview
Based on reliable structure design and massive integrated circuit, MT166 specially supports automatic card dispensing (collecting), which function controlled card dispensing & collecting and RF card operation. Transmitting power by stepper motor, properties with high speed, high stability, highly reliability and long working lifetime
Products Description

Features

* Compact, high reliability and durability
* Support contactless IC card (ISO14443 TYPE A & B)-optional
* Support S50 & S70 (Mifare) card (ISO14443 TYPE A & B)
* With two stepper motors and lifetime over 2 million cycles.
* Designed with shutter, dust and water proof
* Adjustable card thickness &dispensing speed
* Extension stackable cards hopper capacity: 180pcs (card thickness: 0.8mm)
* With error card recycling and card-low indication
* With multi bezel (Optional)
* Various corresponding and custom design
Specifications
Card Type
Contactless IC Cards(Optional)
Card Specification
Size: 54x86mm        Thickness: 0.3-2.0mm
Contactless IC Card(Optional)
R/W(Optional)
ISO14443 Type A & B & Mifare

Card Dispensing Speed
>1pcs/s
Card Recycling Hopper Capacity
25 pcs
Card Hopper Capacity
180 pcs
Lifetime
>2000000 Cycles
Interface
RS232, I/o, TTL
Power Supply
DC24 ± 5%
Current
Max Current: 2A(24V)
Working Temperature
-40-+65°C
Weight
Approx 2120g
Remark
With Sutter & Multi Bezel(Optional)
Applications

Packaging

Single package size: 28.5*30*14cm
Single item gross weight: 2.7kg
Carton package, 4 units in one carton
Support Card Hopper Capacity upgrade: C onnect the hoppers with screws
Added one hopper ↑
Added two hopper↑
The Hopper
Capacity: 180pcs cards(Thickness: 0.8mm)
Single item weight: 0.4kg

Cables

RS232: 1.5m
Power cable: 1..5mm
Application sites
* Kiosk Terminals
* Fuel Dispensers
* CNG Dispensers
* Parking management systems
* Automatic card vending machines
* Ticket vending machines
* Highway card dispenser systems
Product Services
Our Services
1. MINGTE provide high-quality products to customers (Every product will pass three times strict test before delivery)
2. MINGTE provide communication Protocol,SDK for customers to develop
3. MINGTE provide technical support to customers when they met problems in develop processing
4.MINGTE provide OEM products to customers
5.MINGTE provide a high efficiency team and pleasure purchase process to customers
