Product Description
|
Material:
|
FR4
|
|
Input Voltage:
|
DC 12V~30V
|
|
Max. Current:
|
20A
|
|
Power:
|
1000W
|
|
Board Size:
|
Approx. 8.4 * 6.8cm / 3.31 * 2.68in
|
|
Item Weight:
|
Approx. 165g / 5.82oz
|
|
Package Size:
|
Approx. 9.5 * 8 * 3cm / 3.74 * 3.15 * 1.18in
|
|
Package Weight:
|
Approx. 174g / 6.14oz
|
|
Package List:
|
|
|
|
|
|||
|

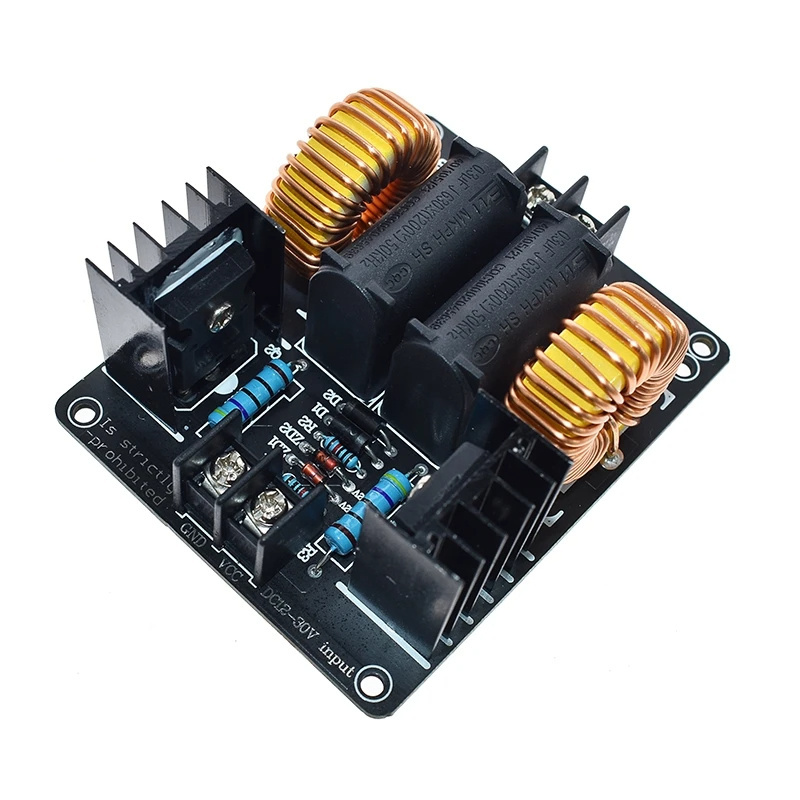

1 * ZVS Induction Heating Board
|
|
|
|
|
|||
|
4 * Screws
|
|
|
|
|
|||
|
4 * Copper Tubes
|
|
|
|
|
|||
Specification
|
item
|
value
|
|
Manufacturer Part Number
|
ZVS Heating Coil Module
|
|
Type
|
integrated circuit
|
|
Place of Origin
|
China
|
|
Brand Name
|
AEAK
|
|
Applications
|
Learning and testing
|
|
