Quick Details
-
Charging Port:
-
NO
-
Connection:
-
NO
-
Combination:
-
NO
-
Voltage:
-
220V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Duosida / Zencar
-
Model Number:
-
EV Charging Station
-
Design Style:
-
NO
-
Rated current:
-
32A
-
Max output power:
-
22KW
-
Socket:
-
Type 2
-
Operating voltage:
-
220V - 380V AC
-
Working frequency:
-
50Hz/60Hz
-
Charging control mode:
-
WIFI + RFID Card
-
Contact impedance:
-
0.5mΩ Max
-
Protection degree:
-
IP54
-
Working temperature:
-
-30℃~+50℃
-
Installation:
-
Wall hanging
Quick Details
-
Function:
-
NO
-
Car Fitment:
-
BYD, bmw, Tesla
-
Type:
-
NO
-
Charging Port:
-
NO
-
Connection:
-
NO
-
Combination:
-
NO
-
Voltage:
-
220V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Duosida / Zencar
-
Model Number:
-
EV Charging Station
-
Design Style:
-
NO
-
Rated current:
-
32A
-
Max output power:
-
22KW
-
Socket:
-
Type 2
-
Operating voltage:
-
220V - 380V AC
-
Working frequency:
-
50Hz/60Hz
-
Charging control mode:
-
WIFI + RFID Card
-
Contact impedance:
-
0.5mΩ Max
-
Protection degree:
-
IP54
-
Working temperature:
-
-30℃~+50℃
-
Installation:
-
Wall hanging
Products Description

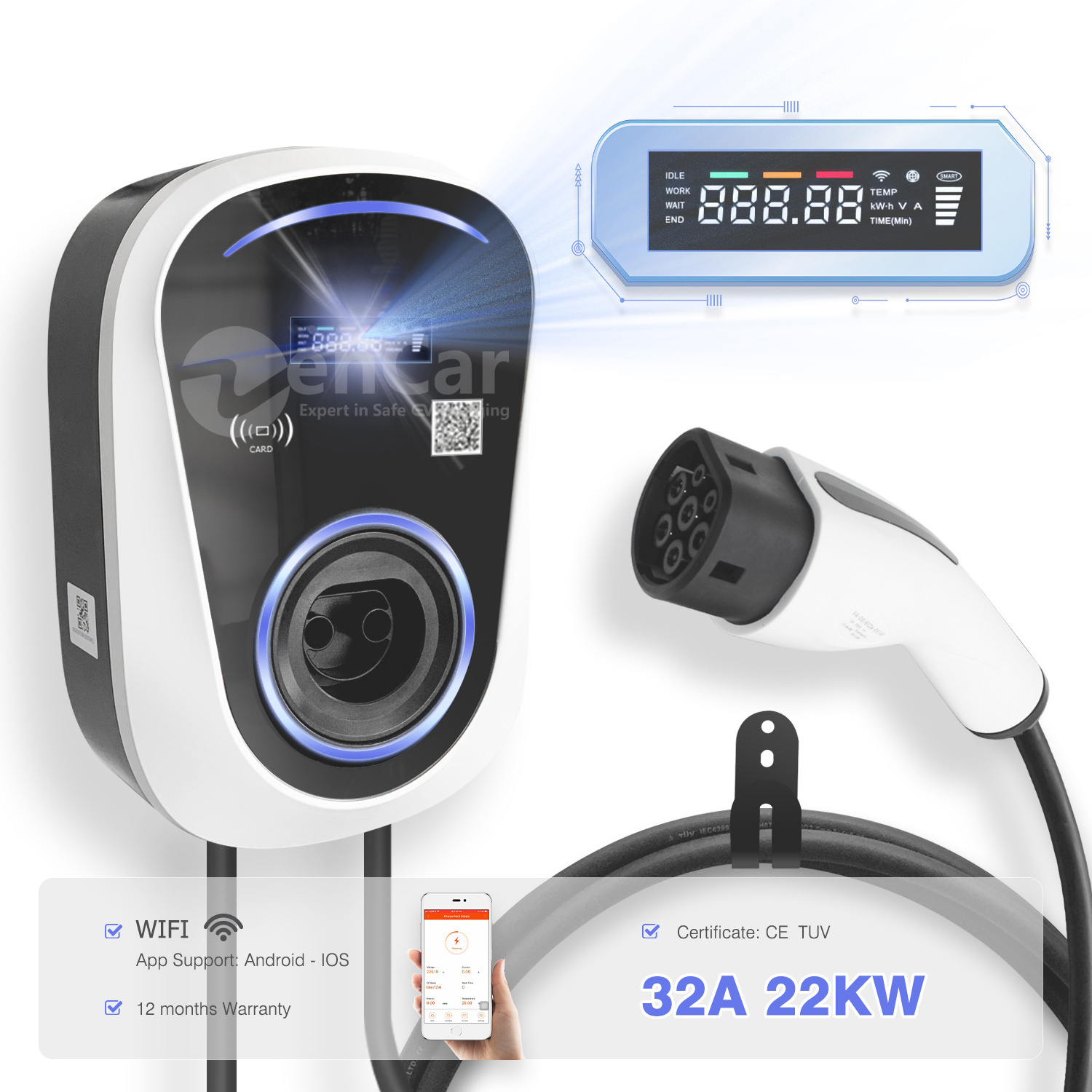

Duosida wallbox ev charger 32A 22kw 380V ev fast car charging station for home using ev charger Tesla BWM BYD VINFAST
1. Techical Specifications
*Installation method: upright post / wall-mounted
*Maximum power:22KW
*Outdoor protection: IP65 ( Outside )
*Satety specifications:Conforms to the latest IEC 61851 and IEC 62196 standards ( TUV and the latest GB/T 18487 and GB/T20234 standards )
*Operating Temperature:-30℃ to +50℃
2. EV car charging station output
*22 KW: 220V/380V AC@32A
3. EV car charging station basic skills
*Start method: plug and charge, RFID card, WIFI
*Remind function:charge indication, fault indication
*Self-test function: fault self-positioning
*Human-computer interaction: OLED display
4. EV car charging station Security
*Leakage detection and protection.
*Double lighting protection ( Professional SPD + Lightning Protection Circuit ).
*Mergency stop button protection
*Over-currenct, over-voltage, under-voltage, over-temperature protection.
*Power failure data records.
*Surge protection meets latest IEC 61851 & GB/T 18487 standards.
*Electromagnetic compatibility complies with the latest IEC 61851 & GB/T 18487 standards.
5. EV car charging station OLED Screen shows ( Smart WIFI )
*Voltage
*Installation method: upright post / wall-mounted
*Maximum power:22KW
*Outdoor protection: IP65 ( Outside )
*Satety specifications:Conforms to the latest IEC 61851 and IEC 62196 standards ( TUV and the latest GB/T 18487 and GB/T20234 standards )
*Operating Temperature:-30℃ to +50℃
2. EV car charging station output
*22 KW: 220V/380V AC@32A
3. EV car charging station basic skills
*Start method: plug and charge, RFID card, WIFI
*Remind function:charge indication, fault indication
*Self-test function: fault self-positioning
*Human-computer interaction: OLED display
4. EV car charging station Security
*Leakage detection and protection.
*Double lighting protection ( Professional SPD + Lightning Protection Circuit ).
*Mergency stop button protection
*Over-currenct, over-voltage, under-voltage, over-temperature protection.
*Power failure data records.
*Surge protection meets latest IEC 61851 & GB/T 18487 standards.
*Electromagnetic compatibility complies with the latest IEC 61851 & GB/T 18487 standards.
5. EV car charging station OLED Screen shows ( Smart WIFI )
*Voltage
*Current
*Temperature
*Temperature
*WIFI
*Time
*KWH
Product Parameters
|
Standards
|
EN 61851-1
|
|
Rated Voltage
|
220V - 380V
|
|
Operating Voltage
|
220V - 380V
|
|
Current
|
32A
|
|
Cable
|
3 phase
|
|
Working frequency
|
50Hz / 60Hz
|
|
Display
|
OLED Dispaly
|
|
Warranty
|
12 month
|
|
EMI
|
CISPR22/EN 55022 CLASS B
|
|
IP Grade
|
IP54 ( storage )
|
|
Operating
Temperature
|
-30℃~+50℃
|
|
EMS
|
EN 61000-4-5 ±2KV/±4KV perf. Criteria B
|
|
European requirement
|
Yes, Type B current protection:
AC 30mA + DC 6mA
|
Product Show
Feature:
2. Opeating temperature: -30℃~+50℃
3. Easy use
The OLED Display showing the following parameters:
1. Current
2. Voltage
3. Time
4. KWH
5. WIFI
6. Temperature
App Showing
1. Start and stop charging
2. Reserve the time
3. Adjust the current from 6A to 32A
3. Adjust the current from 6A to 32A
Product Processing
Product Packing
Why Choose Us
We never lost our reputation in the past 13 years.
