Quick Details
-
Usage:
-
Indoor
-
Tube Chip Color:
-
FULL COLOR
-
Display Function:
-
Video
-
Pixels:
-
256*128mm
-
Pixel density::
-
250000dot/m2
-
scan mode:
-
1/32 scan
-
chip:
-
SM
-
lamp:
-
epistar,sanan
-
Brightness:
-
900cd/sqm
-
Life span:
-
100000 Hours
Quick Details
-
Application:
-
indoor
-
Brand Name:
-
Huacai
-
Place of Origin:
-
Fujian, China
-
Usage:
-
Indoor
-
Tube Chip Color:
-
FULL COLOR
-
Display Function:
-
Video
-
Pixels:
-
256*128mm
-
Pixel density::
-
250000dot/m2
-
scan mode:
-
1/32 scan
-
chip:
-
SM
-
lamp:
-
epistar,sanan
-
Brightness:
-
900cd/sqm
-
Life span:
-
100000 Hours
Product Parameter
| Technical parameters | UNIT | ( parameters values ) | |
| Pixel pitch | mm | 2 | |
| Panel size | mm | L128*H128*T15 | |
| Physical density | /m2 | 250000 | |
| Pixel configuration | R/G/B | 1,1,1 | |
| Driving method | Constant current 1/32scan | ||
| LED Encapsulation | SMD | 1515 | |
| Display resolution | DOTS | 64X64=4096 | |
| LED Parameter | MCD | R:82-102 G:245-305 B:45-56 | |
| NM | R:621-625 G:524-528 B:468-472 | ||
| Module working voltage | VDc | 5 | |
| Module consumption | W | <=15 | |
| Viewing angle | Deg. | 120 | |
| Driving device | ICND2038S | ||
| Frame Frequency | Hz | ≥60 | |
| Refresh frequency | Hz | ≥1920 | |
| Equilibrium brightness | cd/ m2 | 700-1000 | |
| Working environment temperature | 0C | -10~60 | |
| Working environment humidity | RH | 10%~70% | |
| Colour temperature | >=10000K | ||
| Gray scale/color | >=16.7M color | ||
| Mean free error time | Hours | >5000 | |
| Life | Hours | 100000 | |
| Lamp failure frequency | <0.0001 | ||

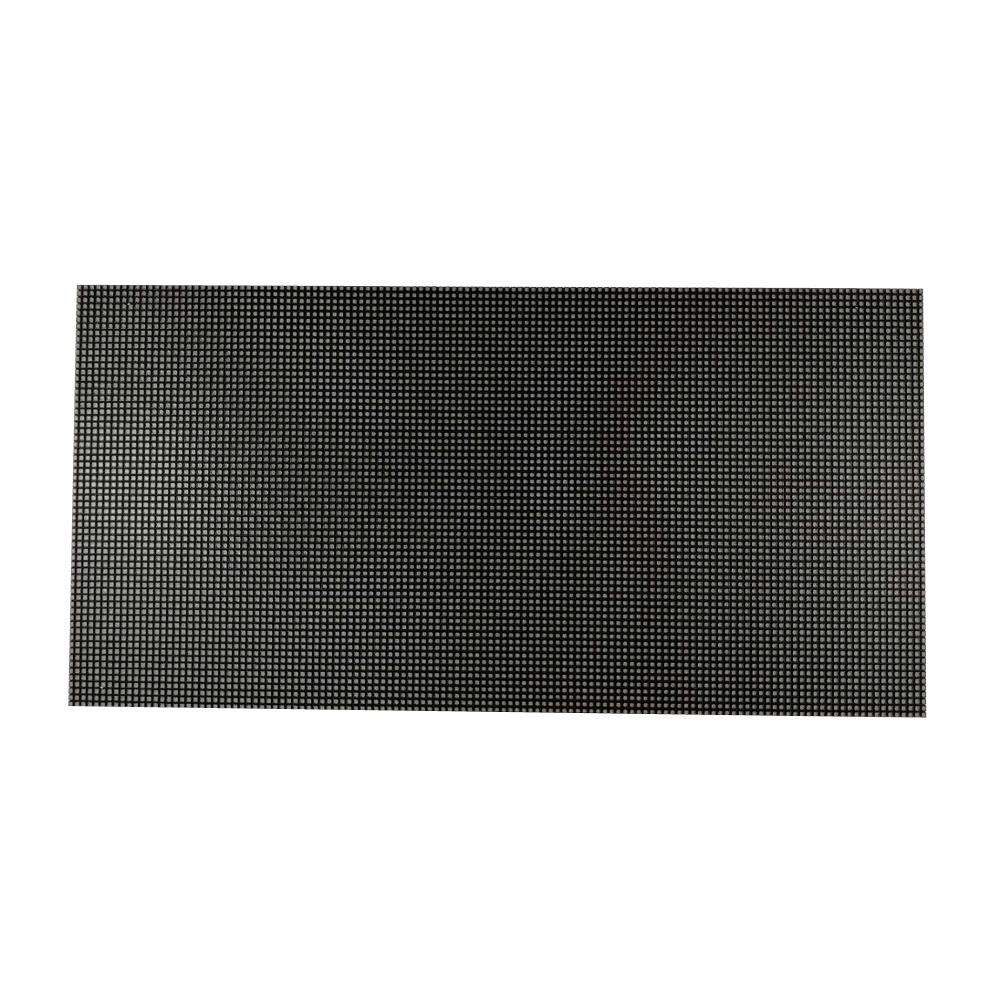

Module - front:
Module - back:
Advantages of LED Display
Indoor LED display screens are widely used in large stadiums, train waiting rooms, live TV broadcasts, exhibition venues, performing arts centers, entertainment venues, large-scale cultural evenings, concerts, etc.
1.High brightness: LEDs with ultra-high brightness are still clearly visible at long distances;
2.Good effect: using nonlinear correction technology, the image is clearer and the layering is stronger;
3.High reliability: using distributed scanning technology and modular design technology, reliability and stability are higher;
4.Diversification of display modules: support multiple display modes;
5.Easy to operate: Universal video playback software makes operation very convenient.
Packing & Delivery
| Cabinet : |
Plywood standard package, 2pcs per wooden case or According to customer's Request; |
| Led Module : |
60pcs/Carton; Size: 48.5*44.5*45.5cm use international standard packaging |
| Delivery : | 5 to 10 days or depends on the quantity. |
1. Nearest s ea port to factory ? Xiamen port.
2. Payment terms? 40%T/T, balance prepaied before shippment.
3. Brand of your diode chip? Silan, Epistar, Cree ect.
