Quick Details
-
operating system:
-
plc control with touch screen,combine automatic and manual
-
advantage:
-
low repair rate,environment friendly
-
Warranty::
-
1 year warranty and lifetime maintenance
-
technology:
-
IPG coating arc ion sputtering magnetron sputtering
-
machine:
-
vertical, single door
-
Certification::
-
TUV,TUV&ISO&BV
-
color::
-
gold,rose gold ,black, sliver, rainbown and so on
Quick Details
-
Place of Origin:
-
Shandong, China
-
coating:
-
vacuum coating TIN,TIC,TICR,TIALN,TICRN etc
-
weight:
-
6-8 ton for pvd vacuum coating machine
-
operating system:
-
plc control with touch screen,combine automatic and manual
-
advantage:
-
low repair rate,environment friendly
-
Warranty::
-
1 year warranty and lifetime maintenance
-
technology:
-
IPG coating arc ion sputtering magnetron sputtering
-
machine:
-
vertical, single door
-
Certification::
-
TUV,TUV&ISO&BV
-
color::
-
gold,rose gold ,black, sliver, rainbown and so on

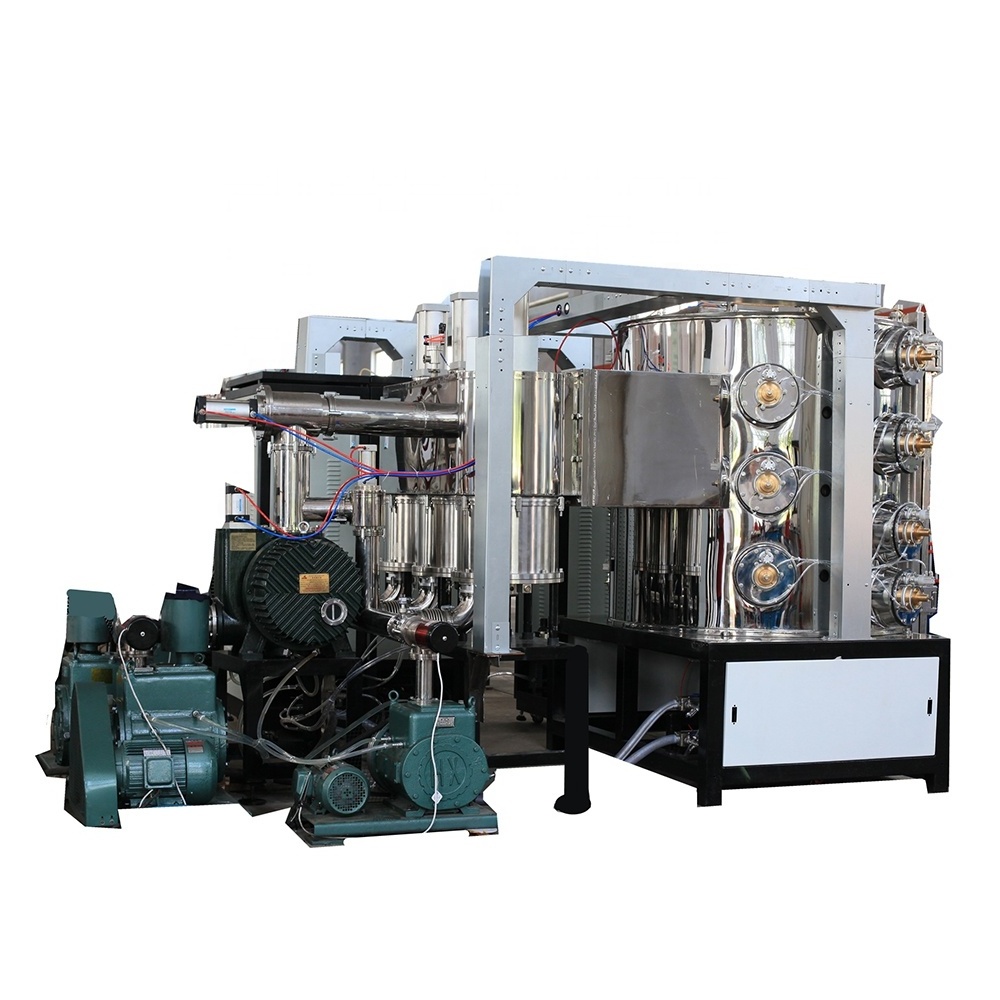

hot sale small Jewelery full automatic vacuum arc deposition equipment/pvd machine
1.Description:
vacuum coating equipment ---
is suitable for many kinds of coating material. Vacuum coating machine is the ideal equipment to gain the decorative films on stainless steel products with perfect quality at low price. Any color stainless steel substrate can be coated as brightly colors such as golden, silver, black, rainbow, blue, gray and multi-color and makes the product look more graceful and attractive. It can save time and have big capacity
It is widely used in the field of toys, jewelry, crafts, mobile shell, electronics and package, the substrates can be stainless steel ,plastic, ceramic, glass and so on. home
Quality : Each machine we design and build represents who we are. This fact drives us to
ensure each system is created with the highest quality components and is engineered to perform.
Solutions : Let us know what your thin film challenges are and we will use our experience and resources to help find the solution.
Customer Focused: We will work closely with you to develop features and capabilities
specific to your needs. This customer centric approach ensures we stay innovative while
providing you with a competitive advantage
We deal with the Customer who is eagerly looking for the complete setup of PVD Plant.
Our team comprises with talented Engineers and well experienced Process Analyst.
Young,Dynamic,Result Oriented, Positvie Attitude and High learning aptitude Engineers will ensure that all your requirements starts from ‘ Planning for setup of a PVD Plant ’ to ‘ Quality testing of your products ’ .
2 , Technical parameter / More models can be choosen :
|
700 type |
800 type |
900 type |
1000 type |
||
|
dimension of vacuum chamber |
700×1000mm |
800×1000 mm |
900×1000 mm |
1000×1000 mm |
||
|
pumping speed |
1×105Pa~3×10-3Pa≤20min |
|||||
|
limit vacuum |
≤1×10-3Pa |
|||||
|
system form a complete set |
KT-600×2-2X-30/2X-70×4(ZLD-300×2) |
KT-600×2-2X-30/2X-70×4 (ZLD-300×2) |
||||
|
Work piece system |
Rotation of the planet forms(8 roating shaft, since the amount) |
|||||
|
heating methods |
Edge installation of stainless steel heating tube |
|||||
|
ion bombardment |
direct current 1000V or contravariant impulse 1000V high voltage bombardment |
|||||
|
vent system |
Mass flow controller control input gas |
|||||
|
arc target amount |
20 |
25 |
||||
|
working methods |
plc semi-auto control or pc+plc auto control |
|||||
|
working gas |
Ar N2 |
|||||
|
total power |
120KW |
160KW |
||||
|
compress air |
0.4~0.8MPa |
|||||
|
water-cooling system |
hydraulic pressure/water temperature:≤25°C/≥0.25MPa(user provide for himself |
|||||
vacuum chamber that be made by SUS 304 stainless steel:
click here to contact with us?
3.samples coated by our machine:
We don't only offer the machine , also provide after- sales service,
hope to establish forever business relationship with you.
Dear friends:
When you send us a inquiry, in order to design the most suitable machine for your project, please inform me the following questions in your letter:
1. What is your product, its material and application
2. What is the possible max. size of your product
3. What is your desired productivity per 8 hours/shift.
The answers to the above question will help us a lot on designing or do the recommendation.
Pls send the inquiry at the bottom of this page.
O ur machine is custom made,If you need any help ,pls feel free to contact me !
