Quick Details
-
Model Number:
-
E51
-
Voltage:
-
220V/230V
-
Power consumption:
-
2 W
-
Setting range:
-
5-90 ℃(can be adjusted to 35-90℃)
-
Limitation setting:
-
5 - 60℃(Factory setting:35℃)
-
Switch differential:
-
0.5 - 10℃ adjustable(Factory setting:1℃)
-
Ambient temperature:
-
-5 to 50℃
-
House protection:
-
IP20
-
Housing material:
-
anti-flammable PC
-
Certification:
-
EPA
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
huanri
-
Model Number:
-
E51
-
Voltage:
-
220V/230V
-
Power consumption:
-
2 W
-
Setting range:
-
5-90 ℃(can be adjusted to 35-90℃)
-
Limitation setting:
-
5 - 60℃(Factory setting:35℃)
-
Switch differential:
-
0.5 - 10℃ adjustable(Factory setting:1℃)
-
Ambient temperature:
-
-5 to 50℃
-
House protection:
-
IP20
-
Housing material:
-
anti-flammable PC
-
Certification:
-
EPA
Product Description
Introduction

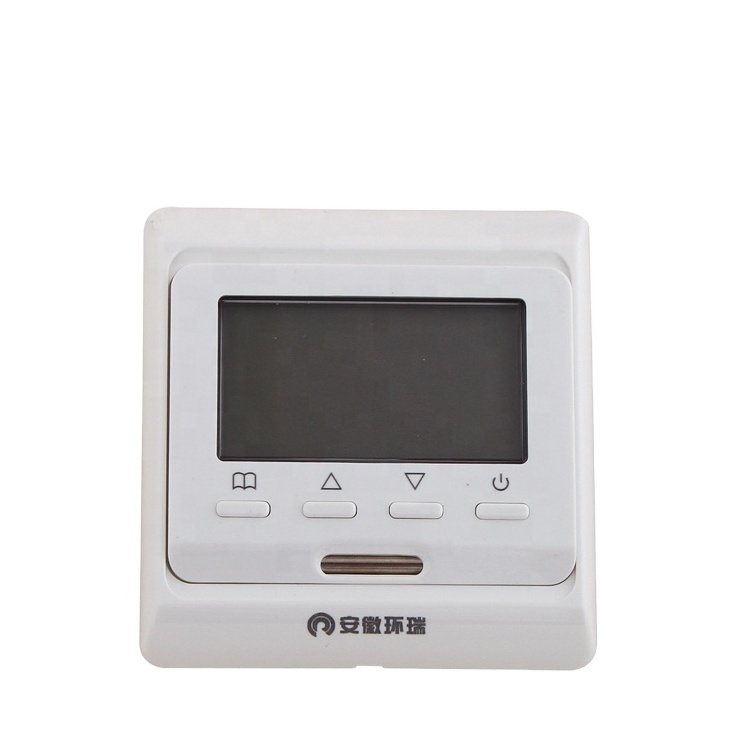

Weekly Programming Digital Thermostat temperature control switch measuring instrument with LCD Screen
Weekly Programming Digital Thermostat temperature control switch measuring instrument with LCD Screen , which has 6-event everyday. Manual mode and programme mode could be selected. The thermostat is recommended for control of electric heating devices or ON/OFF value actuator used in floor heating.
Weekly Programming Digital Thermostat temperature control switch measuring instrument with LCD Screen , which has 6-event everyday. Manual mode and programme mode could be selected. The thermostat is recommended for control of electric heating devices or ON/OFF value actuator used in floor heating.
Selection Table
|
MODEL
|
CURRENT
|
APPLICATION
|
|
E51.716
|
16A
|
Built-in & floor sensor, floor limit sensor weekly programme
|
OEM LOGO on thermostat available
Product Parameters
Technical data
|
Voltage
|
220V/230V
|
|
Power comsuption
|
2W
|
|
Setting range
|
5~90℃ (can adjust to 35~90℃)
|
|
Limitation setting
|
5~60℃ (factory setting: 35℃)
|
|
Switch temperature
|
0.5~60℃ (factory setting: 1℃)
|
|
Protective housing
|
IP20
|
|
Housing material
|
Anti-flammable PC
|
