Quick Details
-
Brix Min. Div.:
-
±0.3% (standard )
-
Measurement Range:
-
0-53%
-
Warranty:
-
18 months
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ZHYQ
-
Model Number:
-
CZ-S
-
Min. Div.:
-
±0.3% (standard )
-
Brix Range:
-
0-53%
-
Name:
-

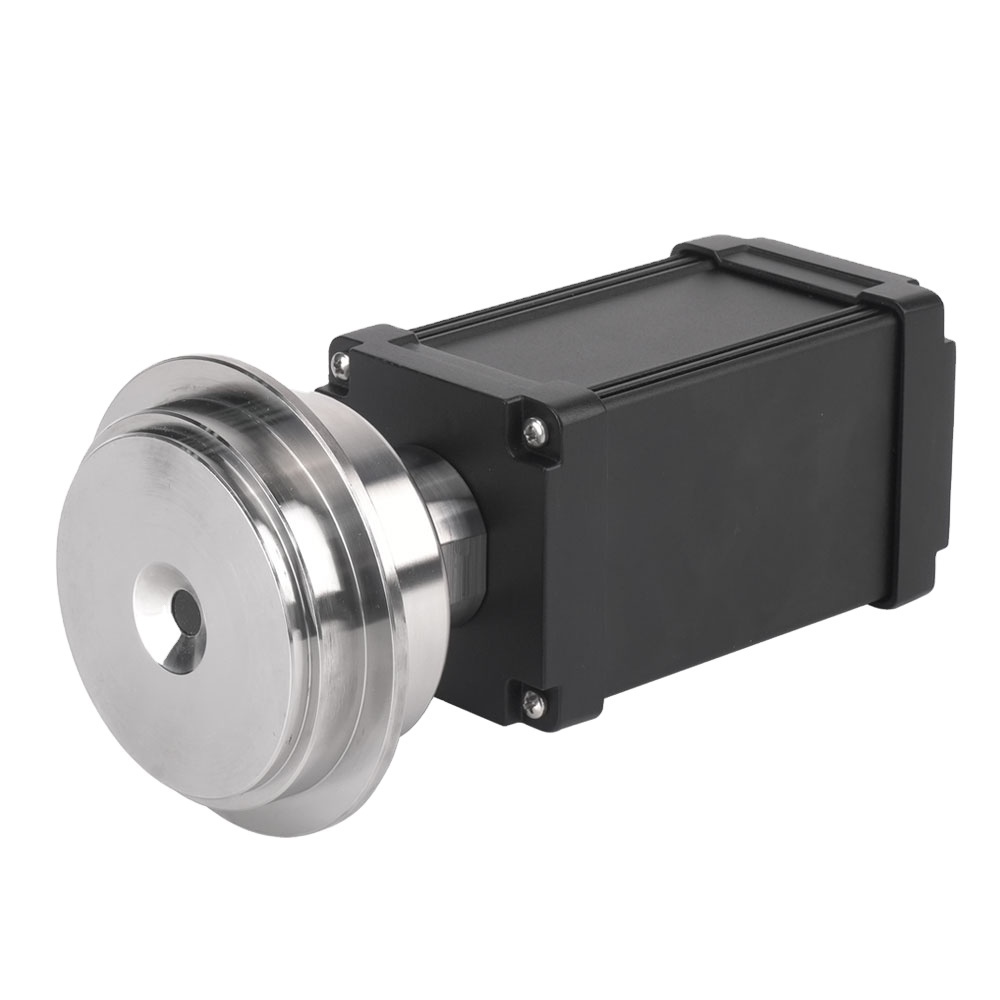

Economical Inline Refractometer
-
Protection grade:
-
IP67
-
Max Pressure::
-
1MPa
-
Power::
-
24V DC
-
Output:
-
4-20mA or RS485 optional
-
Operating current:
-
≤200mA
-
Measurement range:
-
0-53%
-
Working temperature:
-
10-60℃
Quick Details
-
Size:
-
175mm*120mm*80mm, 230mm*170mm*65mm
-
Weight:
-
2kg, 2kg
-
Measurement Accuracy:
-
±0.5%
-
Brix Min. Div.:
-
±0.3% (standard )
-
Measurement Range:
-
0-53%
-
Warranty:
-
18 months
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ZHYQ
-
Model Number:
-
CZ-S
-
Min. Div.:
-
±0.3% (standard )
-
Brix Range:
-
0-53%
-
Name:
-
Economical Inline Refractometer
-
Protection grade:
-
IP67
-
Max Pressure::
-
1MPa
-
Power::
-
24V DC
-
Output:
-
4-20mA or RS485 optional
-
Operating current:
-
≤200mA
-
Measurement range:
-
0-53%
-
Working temperature:
-
10-60℃
Application
Products Description
Product Paramenters
|
Model:
|
CZ-S
|
|
Measure Parameters:
|
Refractive index(nD), Brix (%), Temperature (° C)
|
|
Measure range:
|
0-53%
|
|
Min Resolution Ratio:
|
Brix: 0.1% ( Range for 15% & 53% )
|
|
Measurement Accuracy:
|
Brix:±0.3% (standard )
|
|
Measurement Temperature:
|
0-85℃(Automatic Temperature Compensation)
|
|
Operating current:
|
≤200mA
|
|
Display menu:
|
Refractive index(nD) , Brix(%), Temperature (° C)
|
|
Output :
|
4-20mA , 4-20mA+ RS485 optional
|
|
Power:
|
12-24V DC
|
|
Wetted parts material:
|
Prism: sapphire, Prism stage: SS304 , SS316L (can be customized)
|
|
Optical source:
|
LED(the wave length approximate to D line)
|
|
Max Pressure:
|
1MPa
|
|
Environment Temperature:
|
10-60℃
|
|
Protection grade:
|
IP65
|
|
Instrument Size:
|
230mm*170mm*65mm
|
|
Process connection:
|
1/2NPT, other size supply free adaptor
|
|
Recorder output cable:
|
2M ,3M ,5M,10M optional
|
|
Temperature sensor:
|
Thin film platinum sensor
|
