Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINGHAN
-
Model Number:
-
KCD1-124
-
Insulation resistance:
-
≥100MΩ
-
Contact resistance:
-
≤50mΩ
-
Endurance:
-
≥50000Cycles
-
Ambient temperature:
-
T85
-
Material:
-
pa66/pc
-
Function:
-
Momentary 1NO
-
Panel opening size:
-
19x13mm
-
Button Color:
-
Red Black
-
Degree of protection:
-
IP55
-
Certification:
-
TUV CE
Quick Details
-
Protection Level:
-
IP55
-
Max. Current:
-
6A/10A
-
Max. Voltage:
-
125V/250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINGHAN
-
Model Number:
-
KCD1-124
-
Insulation resistance:
-
≥100MΩ
-
Contact resistance:
-
≤50mΩ
-
Endurance:
-
≥50000Cycles
-
Ambient temperature:
-
T85
-
Material:
-
pa66/pc
-
Function:
-
Momentary 1NO
-
Panel opening size:
-
19x13mm
-
Button Color:
-
Red Black
-
Degree of protection:
-
IP55
-
Certification:
-
TUV CE

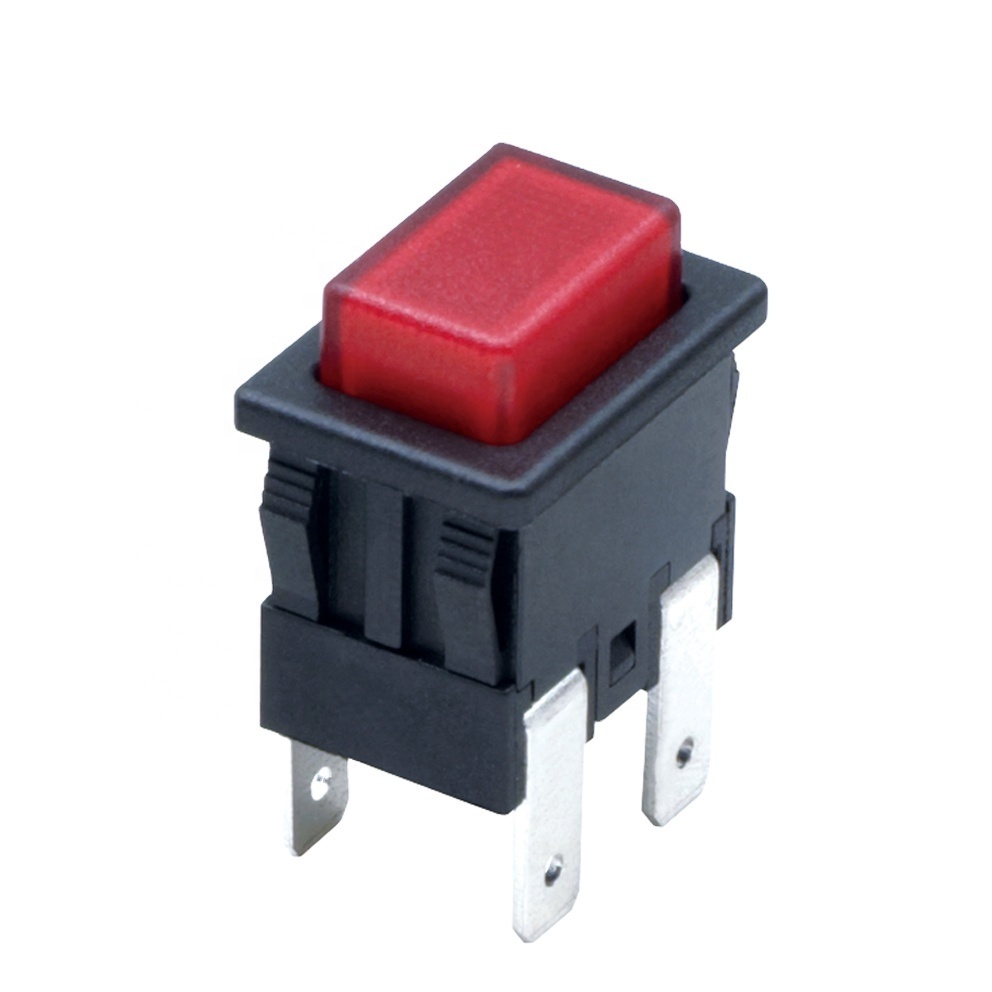

Dust collector electronic switches 4 pins push button switch t85 Momentary on off switch
Main technical characteristics
|
Push button Switch |
|||||
|
Rating |
6A 250VAC 10A 125VAC |
Operating Temp. |
-25+85°C |
||
|
Contact Resistance |
≤ 50MΩ |
Electrical life |
≥ 10000 Cycles |
||
|
Insulation Resistance |
≥ 100MΩ |
Withstand Voltage |
1500VAC/5S |
||
|
Material |
Housing & Light bracket |
PA66 |
Contacts |
Copper with compound silver |
|
|
Push button |
PC |
Terminals & Mid pins |
Copper with silver plated |
||
|
Waterproof cover(Optional) |
PVC |
Side pins |
Brass with silver plated |
||
