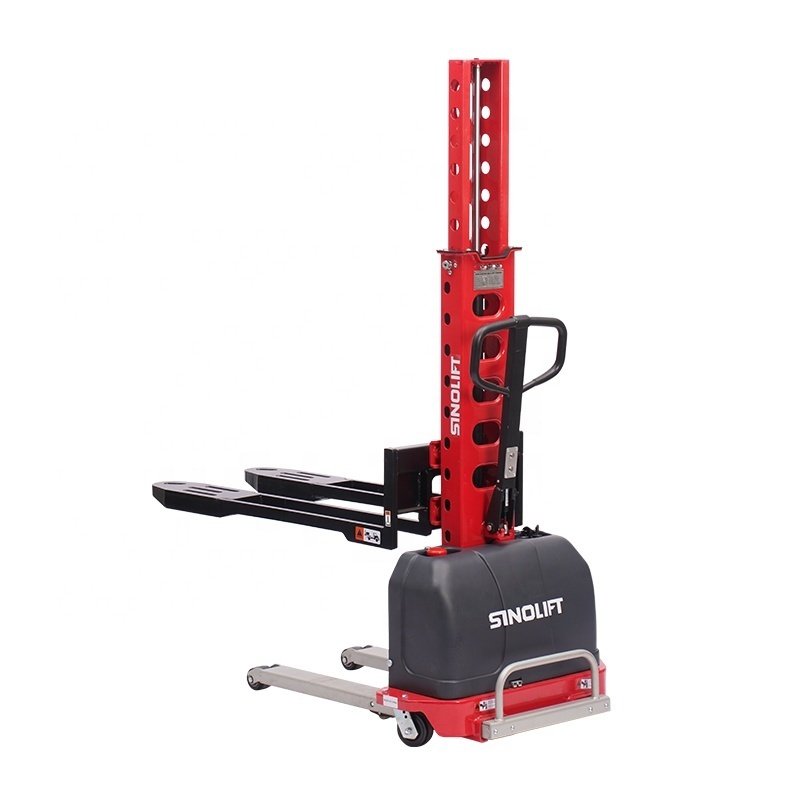

SINOLIFT SDYG Series Semi Electric Stacker Self Loading Stacker
SINOLIFT SDYG Series Semi Electric Stacker Self Loading Stacker
SINOLIFT SDYG Series Semi Electric Stacker Self Loading Stacker
SINOLIFT SDYG Series Semi Electric Stacker Self Loading Stacker
SINOLIFT SDYG Series Semi Electric Stacker Self Loading Stacker
SINOLIFT SDYG Series Semi Electric Stacker Self Loading Stacker
SINOLIFT SDYG Series Semi Electric Stacker Self Loading Stacker
SINOLIFT SDYG Series Semi Electric Stacker Self Loading Stacker

SINOLIFT SDYG Series Semi Electric Stacker Self Loading Stacker

FOB Reference Price: Get Latest Price
≥1 Pieces
US $1490
≥5 Pieces
US $1460
≥10 Pieces
US $1450
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Sinolift
Fork Length:
1600mm
Fork Width:
780mm
Overall Dimensions:
1600X780X1150mm
Weight (KG):
219 kg
Product Name:
SINOLIFT SSL Series Semi Electric Stacker Self Loading Stacker
Key word:
Lifting Pallet Stacker
Type:
Electric
Type of Driving:
Pedestrain
Load Capacity:
500kg
Lifting Height:
1300mm
Lifting Speed:
80mm/s
Application:
Transportation Logistics
Mast:
1 Stage
Certification:
CE

Quick Details

Min. Lifting Height:
90mm
Warranty:
1 Year
Place of Origin:
Shanghai, China
Brand Name:
Sinolift
Fork Length:
1600mm
Fork Width:
780mm
Overall Dimensions:
1600X780X1150mm
Weight (KG):
219 kg
Product Name:
SINOLIFT SSL Series Semi Electric Stacker Self Loading Stacker
Key word:
Lifting Pallet Stacker
Type:
Electric
Type of Driving:
Pedestrain
Load Capacity:
500kg
Lifting Height:
1300mm
Lifting Speed:
80mm/s
Application:
Transportation Logistics
Mast:
1 Stage
Certification:
CE
Model

SDYG-Z 0509
SDYG-Z 0510
SDYG-Z 0511
SDYG-Z 0513
Rated Capacity
Q(Kg)
50o
50o
500
500
Load Center
C(mm)
400
400
400
400
Ways to lift

Electric
Electric
Electric
Electric
Mode of operation

Walkie
Walkie
Walkie
Walkie
material

Polyurethane
Polyurethane
Polyurethane
Polyurethane
wheelbase
y(mm)
860
860
860
860
Front track
b11(mm)
380
380
380
380
Rear track
b10(mm)
670
670
670
670
Number of steering/load-bearing wheels/balance wheels

37293
37293
37293
37293
Load bearing wheel size
mm
Ф70x60
Ф70x60
Ф70x60
Ф70x60
Steering wheel size
mm
Ф100x50
Ф100x50
Ф100x50
Ф100x50
Balance wheel size
mm
Ф40x26
Ф40x26
Ф40x26
Ф40x26
Auxiliary balance wheel size
mm
Ф30×26
Ф30×26
Ф30×26
Ф30×26
Minimum height of forks off the ground
mm
90
90
90
90
Maximum height after fork lifting
h3(mm)
900
1000
1100
1300
Fork outside width
mm
535
535
535
535
Fork inside width
mm
225
225
225
225
Fork working length
l(mm)
1150
1150
1150
1150
Single-sided fork size
e/s(mm)
155/60
155/60
155/60
155/60
Vehicle length
L1(mm)
1565
1565
1600
1600
Vehicle width
b1(mm)
790
790
790
790
Vehicle height (when forks are lowered)
h1(mm)
1195
1250
1400
1600
The height of the vehicle after the mast is lifted
h4(mm)
2100
2300
2500
2900
Length to the vertical face of the fork
l2(mm)
1150
1150
1150
1150
Minimum turning radius
Wa(mm)
1120
1120
1100
1120
Maximum lifting speed (full/unloaded)
mm/s
80/110
80/110
80/110
80/110
Maximum descent speed (full/unloaded)
mm/s
80/80
80/80
80/80
80/80
Lifting motor
V/Kw
12/0.8
12/0.8
12/O.8
12/0.8
Battery capacity
V/Ah
12/33
12/33
12/33
12/33
Battery weight
Kg
10
10
10
10
Weight
Kg
175
186
197
219
