Quick Details
-
Strike Structure:
-
Stainless Steel
-
Holding Stength:
-
500kg
-
Voltage:
-
DC12V(Need Order DC24V)
-
Current:
-
12V/320mA;24V/160mA
-
Feature:
-
Fail Secure(YS-138LKNO); Fail Safe(YS-138LKNC)
-
Suitable for:
-
Wooden Door,Metal Door,PVC Door
-
Function:
-
Built-out MOV
-
Optional Accessories:
-
YS-308
-
Weight:
-
0.42kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YLI
-
Lock Size:
-
250Lx43.7Wx35H(mm)
-
Strike Structure:
-
Stainless Steel
-
Holding Stength:
-
500kg
-
Voltage:
-
DC12V(Need Order DC24V)
-
Current:
-
12V/320mA;24V/160mA
-
Feature:
-
Fail Secure(YS-138LKNO); Fail Safe(YS-138LKNC)
-
Suitable for:
-
Wooden Door,Metal Door,PVC Door
-
Function:
-
Built-out MOV
-
Optional Accessories:
-
YS-308
-
Weight:
-
0.42kg
Product Description
Product Application

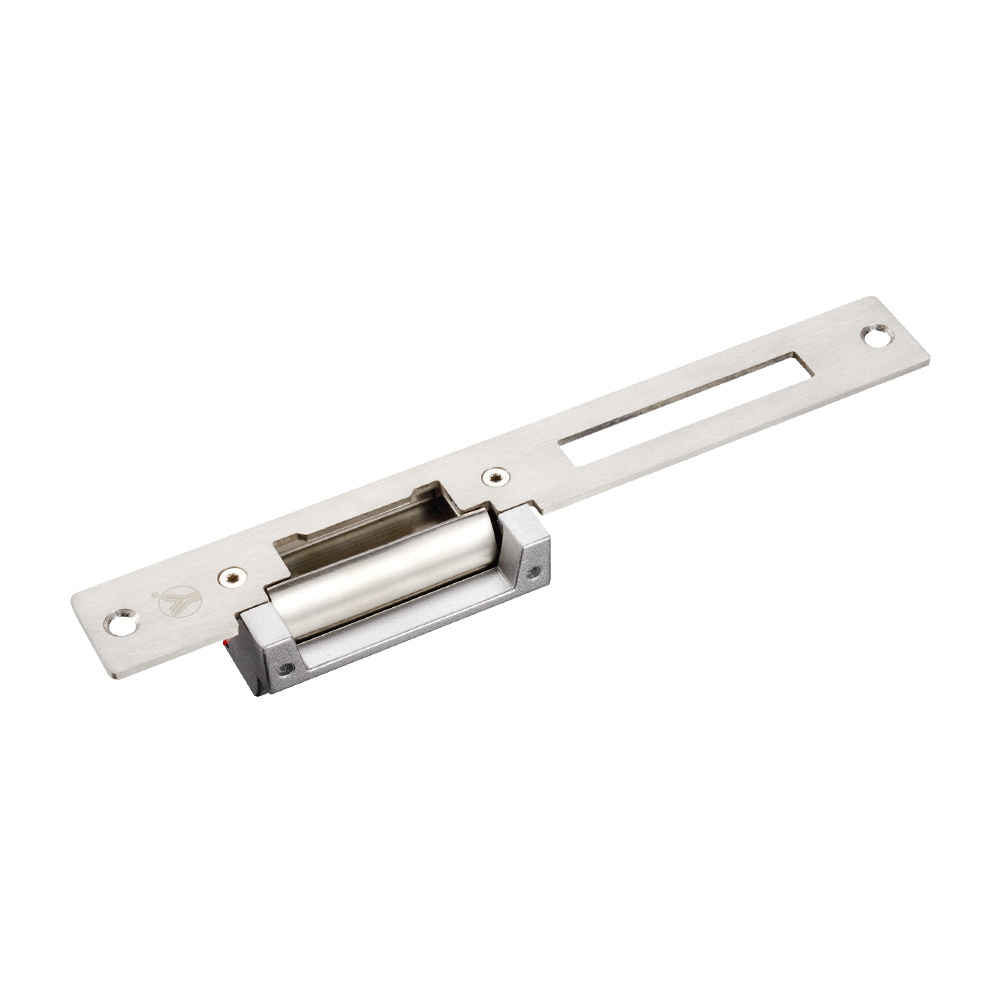

YS-138LK is a Long Type European Electric Strike. Which is made of Stainless Steel. The Holding Force is 500KG. The Voltage is default DC12V. But DC24V is avaliable. The current is Fail Secure(YS-138LKNO); Fail Safe(YS-138LKNC). Which is suitable for Wooden Door,Metal Door,PVC Door.
|
Lock Size
|
250Lx43.7Wx35H(mm)
|
|
|
||
|
Strike Structure
|
Stainless Steel
|
|
|
||
|
Holding Force
|
500kg
|
|
|
||
|
Voltage
|
DC12V (Need Order DC24V)
|
|
|
||
|
Current
|
12V/320mA;24V/160mA
|
|
|
||
|
Feature
|
Fail Secure(YS-138LKNO); Fail Safe(YS-138LKNC)
|
|
|
||
|
Suitable For
|
Wooden Door,Metal Door,PVC Door
|
|
|
||
|
Surface Temperature
|
Within +20℃
|
|
|
||
|
Suitable Temperature
|
-10~+55℃(14-131F)
|
|
|
||
|
Operating Humidity
|
0~90%(non-condensing)
|
|
|
||
|
Face plate Housing
|
Painted Steel
|
|
|
||
|
Function
|
Built-out MOV
|
|
|
||
|
Optional Accessories
|
YS-308
|
|
|
||
|
Weight
|
0.42kg
|
|
|
||
|
Patent No.
|
201320470904.1
|
|
|
||
