Quick Details
-
Application:
-
Electronics
-
Keypad Button Material:
-
PET,PC,silicone,metal
-
Name:
-
flat button membrane switch with metal dome f
-
Material:
-
PET(polyester),PC(polycarbonate)
-
Size:
-
According to CAD/AI/CDR drawing of membrane keypad
-
Color:
-
Pantone and RALcolor matching system
-
Printing:
-
Silk-screen print
-
Key of membrane keypad:
-
Embossed or flat
-
Clear or transparent window:
-
OK
-
Rear adhesive:
-
3M 467MP, 3M 468MP
-
Contact Bounce:
-
< 5ms
-
Insulation Resistance:
-
100MΩ 100V
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
new membrane keypad
-
Model Number:
-
new membrane keypad
-
Application:
-
Electronics
-
Keypad Button Material:
-
PET,PC,silicone,metal
-
Name:
-
flat button membrane switch with metal dome f
-
Material:
-
PET(polyester),PC(polycarbonate)
-
Size:
-
According to CAD/AI/CDR drawing of membrane keypad
-
Color:
-
Pantone and RALcolor matching system
-
Printing:
-
Silk-screen print
-
Key of membrane keypad:
-
Embossed or flat
-
Clear or transparent window:
-
OK
-
Rear adhesive:
-
3M 467MP, 3M 468MP
-
Contact Bounce:
-
< 5ms
-
Insulation Resistance:
-
100MΩ 100V

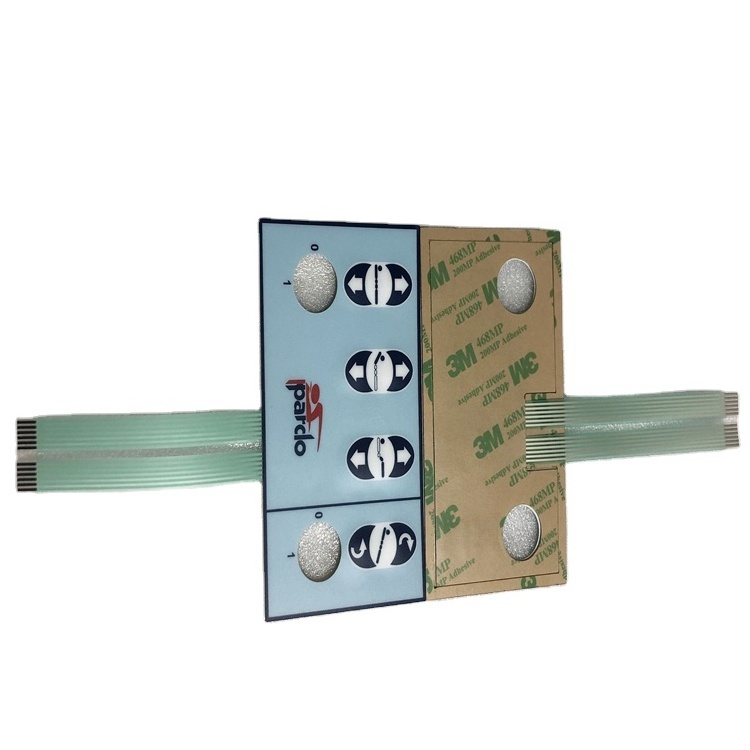

Factory customize waterproof push button switch membrane panel flat button membrane switch with metal dome for medical equipment
Metal Dome Switches
Manufactured from nickel plated stainless steel, metal dome membrane switches are momentary switch contacts that become normally-open tactile switches when used in conjunction with a printed circuit board, flex circuit, or printed membrane circuit. Tactile metal dome switches provide an extremely reliable user interface and are installed through a pocket design concept, or directly on printed circuit boards with pressure-sensitive adhesive tape or dome cover.
Tactile Metal Dome Membrane Switch Advantages
Since metal dome switches are available in a wide range of shapes and sizes, including fully customized options they are often found in electronic devices, test equipment, industrial controls, and other types of measurement equipment. Metal dome membrane switches provide the following beneficial features:
- Lightweight design
- Low-profile
- Many actuation force options
- Reliable tactile response
- Fully ruggedized design
- Integrates well into most all applications
Home appliances : washing machine, induction, microwave oven, remote control etc.
Industrial equipment : CNC lathe, injection molding machine etc.
Commercial equipment : cash register, electronic scale, refueling machine,medical equipment,measuring instruments, telecommunication equipment, OA equipment, Information application productstoys...etc.
| New membrane keypad | |
| Material | Matte PC(smooth),gloss PC+matte oil ,gloss PC,PET,and PVC |
| Thickness | 0.05-1.0mm |
| LED windows | Transparent,translucent,matte,gloss |
| Embossed keys | No embossed keys and domes,domes without embossed keys,embossed keys without domes,embossed keys and domes |
| Adhesive | 3M467,3M468,and no adhesive |
| Tail | Tail with clear mask or green mask |
| custom-made membrane switch/membrane keypad Design Option |
1.Matte finished/ glossy finished 2.Embossed keys Overlay/ Flat Overlay 3.With metal dome/poly dome 4.With LCD window 5.With LEDS 6.Eith Shielding Layer/EL backlight 7.Circuit layer 8.Adhesive
|
Packing: 10-25 pcs per PE bag which is based on the product feature and Foam around Bags ,Then in Carton The carton box size is 15cmx25cmx30cm or as per customer request.
Shiping: FedEx/DHL/UPS/TNT/EMS.
1. Manufacturer over 10 years' experience.
2. Accept Escrow for your fund safe.
3. OEM and ODM is available, can faster churning out your innovative products.
4. Materials are PC,PET and PE, non-toxic, harmless, eco-friendly.
5. If want to import some membrane switch to test the market, we can lower the MOQ.
6. The Alibaba.com Recommended Supplier.
7. Perpetual support with our strong strength, maintain long-term strategic partnership.
8. Quality is our culture,,With us Your money in safe Your business in safe Your success is our super goal,our honest will
