Quick Details
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
6kw
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ledio
-
Voltage:
-
380V 3P/50-60Hz
-
Dimension(L*W*H):
-
3600x2100x1900mm
-
Power (kW):
-
15
-
Weight (KG):
-
1800
-
Type:
-
LD-1325
-
work travel:
-
1300x2500x200mm
-
Operation speed:
-
20m/min
-
Work voltage:
-
380V 3P /50-60Hz
-
Spindle power:
-
6kw
-
Command language:
-
HPGL,G code.u00.mmg.plt
-
Software operating environment:
-
Windows98/2000/XP
-
Control system:
-
Taiwan syntec control system
-
Spindle speed:
-
0-18000rpm/min
-
Motor and driver:
-
Taiwan Delta servo motor and driver
Quick Details
-
Working Table Size(mm):
-
1300x2500x200mm
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
6kw
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ledio
-
Voltage:
-
380V 3P/50-60Hz
-
Dimension(L*W*H):
-
3600x2100x1900mm
-
Power (kW):
-
15
-
Weight (KG):
-
1800
-
Type:
-
LD-1325
-
work travel:
-
1300x2500x200mm
-
Operation speed:
-
20m/min
-
Work voltage:
-
380V 3P /50-60Hz
-
Spindle power:
-
6kw
-
Command language:
-
HPGL,G code.u00.mmg.plt
-
Software operating environment:
-
Windows98/2000/XP
-
Control system:
-
Taiwan syntec control system
-
Spindle speed:
-
0-18000rpm/min
-
Motor and driver:
-
Taiwan Delta servo motor and driver

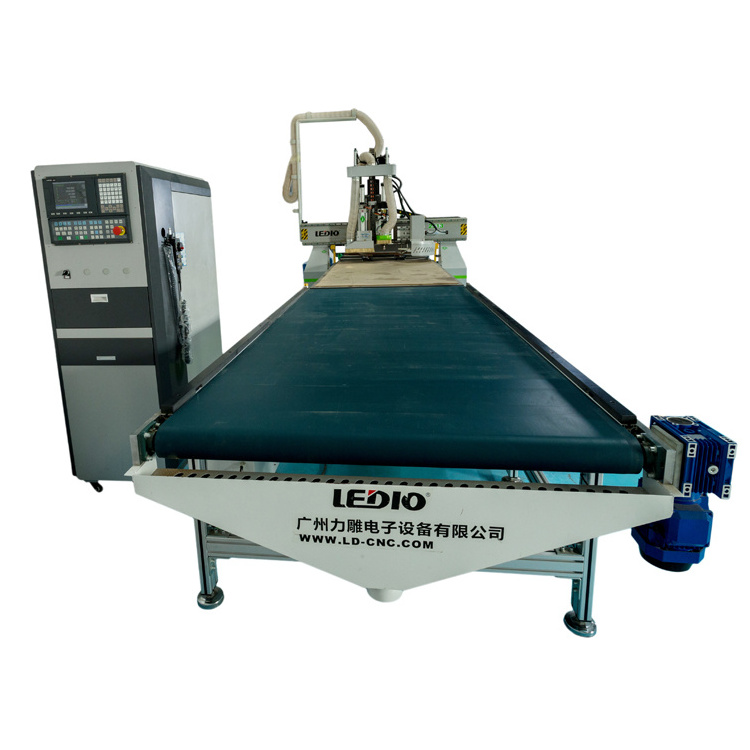

4X8 atc machine price wood carving cnc router linear ATC machine for wood door kitchen cabinet furniture
What kind of material the machine can make?
This wood engraving machine widely used in wood making, advertising, furniture line, arts and crafts line, metalwork line, can process double-colour board, pvc borad, mould, forming, board, copper, aluminum, fire Woodworking Engraving machineproofing board and so on.
Cnc machine characteristic
1.Combined with mechanical principle Reinforcement at the main force position
Can withstand the processing of various plates. Exclusive research and development of special bed processing methods and processes to ensure the parallelism of the track and rack surface, and the parallelism between the
gantry and the bed is controlled within 0.02mm.
2.Taiwan Syntec all-in-one control system: a well-known brand of CNC system at home and abroad, with fast data processing speed, stable operation, convenient operation, simple and fast, easy to learn and use.
3.Taiwan high-precision square linear guides have high precision, long service life, large contact surface, strong load carrying capacity, and the use of vertical rail technology can better ensure the stability of operation.
4.Z-axis adopts Taiwan double-nut ball screw with high precision and precise cutting. Both spindles adopt domestically made high-power 6KW air-cooled spindles, which automatically switch tools.
Machine parameters
| Working area | 1300*2500*200mm |
| Spindle motor power | 9KW/18000RPM |
| Row drilling | CC9 Vertical vertical drill (5+4 rows of drills) |
| Driver and motor | TAIWAN DELTA servo motor and drive( Z axis with brake) |
| Rail screw | Taiwan25mm HIWIN original square liner guide + Taiwan TBI original 2510 screw |
| Working voltage | AC380V/3PH/50HZ |
| Control system | Taiwan Syntec control system |
| Frequency converter | Kerun brand 7.5KW high precision inverter |
| Machine table | Vacuum table with 5.5kw water cooling vacuum pump |
| Working speed | 20-26m/min(MAX)according to material thickness |
