Quick Details
-
Feature:
-
shallow theory designed
-
Product name:
-
Lamella Clarifier
-
Application:
-
wastewater treatment
-
Type:
-
Automatic
-
Function:
-
efficient sedimentation tank
-
Usage:
-
Industrial process water
-
Capacity:
-
5-150m3/h
-
Keywords:
-
Inclined Plate
-
Voltage:
-
380V/50Hz
-
Color:
-
Customerized
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Weight (KG):
-
1500 kg
-
Working hours:
-
24 hours
-
Feature:
-
shallow theory designed
-
Product name:
-
Lamella Clarifier
-
Application:
-
wastewater treatment
-
Type:
-
Automatic
-
Function:
-
efficient sedimentation tank
-
Usage:
-
Industrial process water
-
Capacity:
-
5-150m3/h
-
Keywords:
-
Inclined Plate
-
Voltage:
-
380V/50Hz
-
Color:
-
Customerized

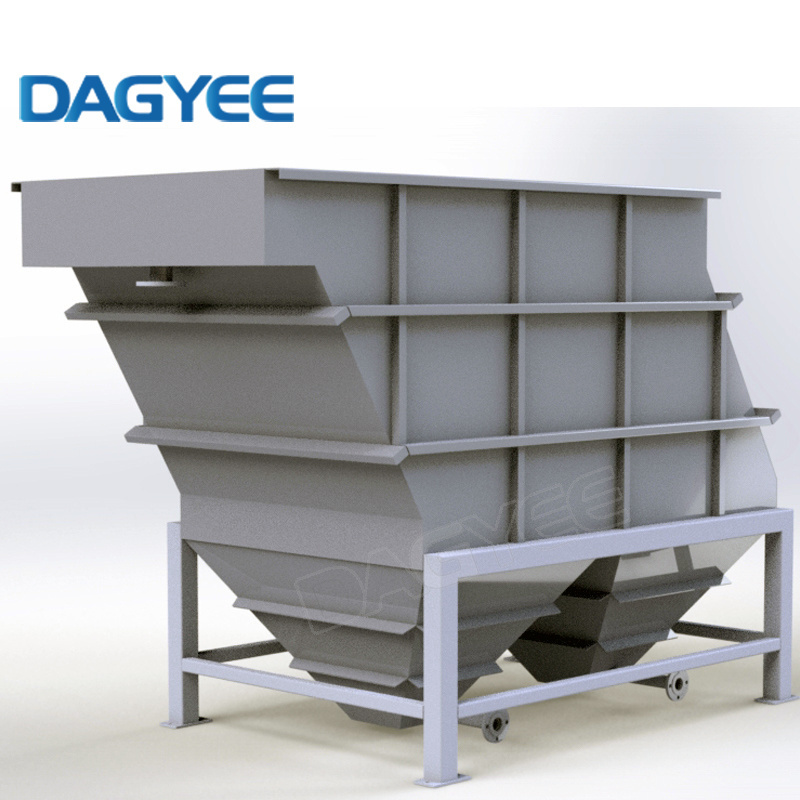

Lamella clarifier
inclined plate settler (IPS) a type of settler designed to remove particulates from liquids.
They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.
|
DCL
Model |
Capacities
(m3/h) |
Piping Connections(mm)
|
|
|
|
Physical Dimensions(m)
|
|
|
|||||
|
|
|
Inlet(a)
|
Effluent(b)
|
Sludge(c)
|
Backwash(d)
|
L
|
W
|
H
|
|||||
|
DCL-
|
5
|
80
|
80
|
50
|
50
|
2.55
|
1.6
|
2.9
|
|||||
|
DCL-
|
10
|
100
|
100
|
50
|
50
|
3.35
|
1.82
|
3
|
|||||
|
DCL-
|
15
|
100
|
100
|
50
|
50
|
3.35
|
2.02
|
3
|
|||||
|
DCL-
|
20
|
100
|
100
|
50
|
50
|
3.35
|
2.02
|
3
|
|||||
|
DCL-
|
30
|
150
|
150
|
50
|
50
|
4.2
|
2.22
|
3
|
|||||
|
DCL-
|
40
|
150
|
150
|
50
|
50
|
4
|
2.8
|
3
|
|||||
|
DCL-
|
50
|
200
|
200
|
50
|
50
|
4.65
|
2.82
|
3
|
|||||
|
DCL-
|
60
|
200
|
200
|
50
|
50
|
4.7
|
3
|
3
|
|||||
|
DCL-
|
70
|
250
|
200
|
50
|
50
|
6.4
|
2.6
|
3
|
|||||
|
DCL-
|
80
|
250
|
200
|
50
|
50
|
6.8
|
2.82
|
3
|
|||||
|
DCL-
|
100
|
250
|
250
|
50
|
50
|
7.05
|
3.02
|
3
|
|||||
Lamella clarifier features
simple structure,without wearing parts,
steady operation,easy operation
small power,save energy
small occupy area, low investment, high efficient
short retention time, high sediment efficiency, no sludge backflow.
Primary clarification of wastewater streams
Backwash water recovery
Industrial water treatment systems
Potable water treatment systems
River water abstraction clarification
Wash water recovery and recirculation systems
Wet scrubber and slaking effluent treatment
