Quick Details
-
Brand Name:
-
NICE-POWER
-
Model Number:
-
SPS3010
-
Output Frequency:
-
50Hz
-
Output Current:
-
10A
-
Product Name:
-
Laboratory Power Supply
-
Application:
-
Testing Repairing
-
Certification:
-
CE/FCC
-
Type:
-
DC Power Supply
-
Protection:
-
Overload Protection
-
Warranty:
-
1 Year
-
Name:
-
30V 10A DC Power Supply n
-
Color:
-
White
-
Display Type:
-
Four Digital Display
-
Cooling:
-
Intelligent temperature control fan
Quick Details
-
Input Voltage:
-
220V
-
Output Voltage:
-
30V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NICE-POWER
-
Model Number:
-
SPS3010
-
Output Frequency:
-
50Hz
-
Output Current:
-
10A
-
Product Name:
-
Laboratory Power Supply
-
Application:
-
Testing Repairing
-
Certification:
-
CE/FCC
-
Type:
-
DC Power Supply
-
Protection:
-
Overload Protection
-
Warranty:
-
1 Year
-
Name:
-
30V 10A DC Power Supply n
-
Color:
-
White
-
Display Type:
-
Four Digital Display
-
Cooling:
-
Intelligent temperature control fan

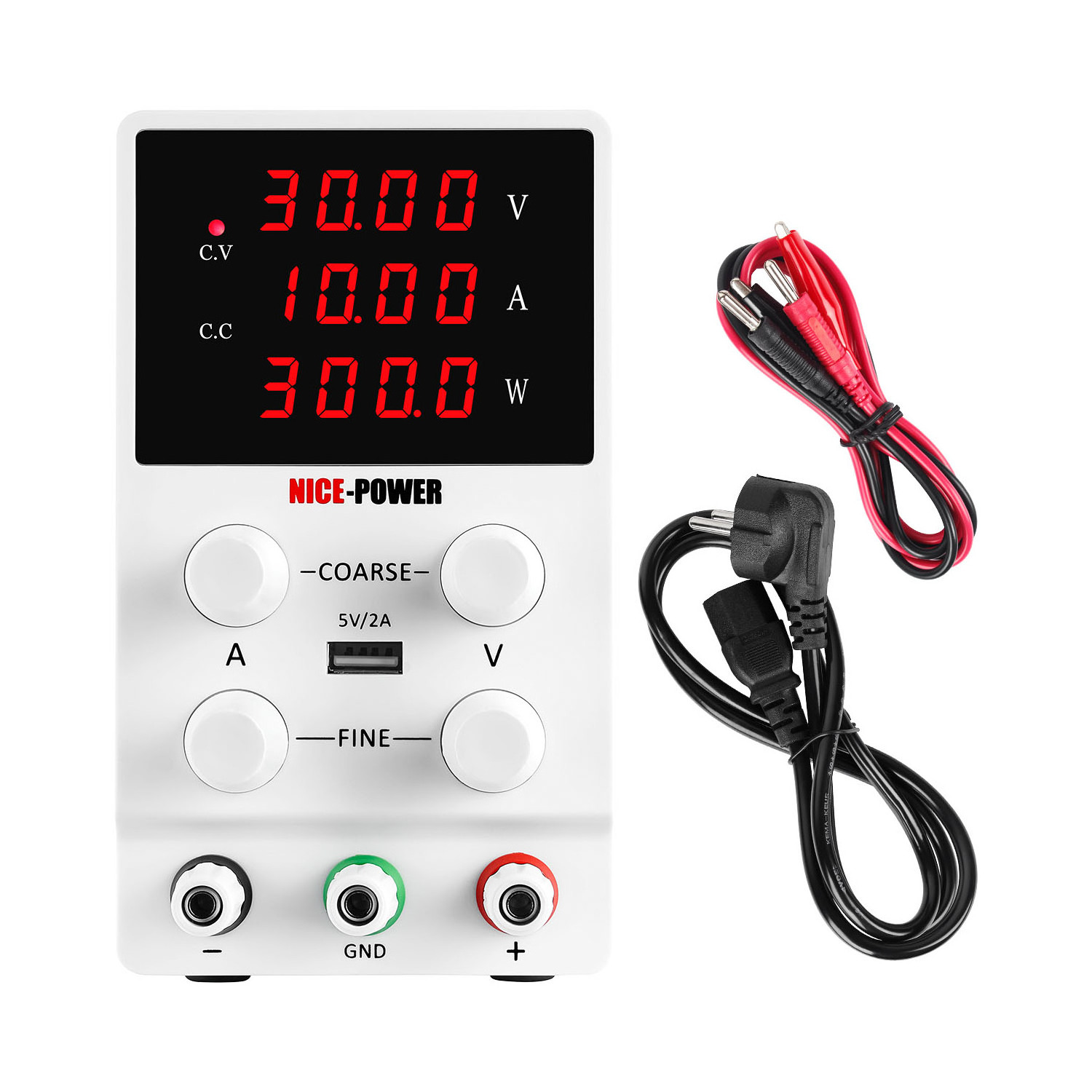

China Factory Supply Nice Power Sps3010 30V 10A Display Power Switch For School Lab Teach Industrial Power Supply
Advantage
1.Have complete operating protection function
2.Highly efficient, low ripple, small volume, light weight
3.Double display voltage, current, and high precision
4.Voltage stabilization, current limiting, simple operation
5.Dual voltage input and convenient choice
6.Temperature control fan heat dissipation, low noise
7.Double potentiometer more precise adjustment
More Parameters
Output Voltage ranges from 0 to
30V
with continuous adjustment .
Output Current ranges from 0 to
10A
with continuous adjustment .
Voltage regulation : Line regulation<5mV. Load regulation<5mV.
Recovery time<500us(50% Load change, minimum load 0.5A)
Ripple & Noise<5m Vrms, 100m Vp-p
Temperature coefficient<100p pm/C.
Output current ranges from 0 to rating current with continuous adjustment
Current regulation line regulation<3mA. load regulation<3mA.
Indicator Meter
Voltage display precision: +-(0.5% of rdg + 2 digits).
Current display precision: +-(0.5% of rdg + 2 digits).
Operation Temperature & Humidity : 0 ~ 40 C, RH<80%.
Storage Temperature & Humidity : -10 ~ 70 C, RH<70%.
|
Model
|
SPS3010
|
|
Input voltage
|
AC 110V 50HZ or 110V 60HZ
|
|
Output voltage
|
0 ~ 30V
|
|
Output current
|
0 ~10A
|
|
Voltage resolution
|
10mV
|
|
Current resolution
|
1mA
|
