- Product Details
- {{item.text}}
Quick Details
-
Screen Type:
-
other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jlinkiot
-
Model Number:
-
TV106
-
Size:
-
100mm*52mm*18mm
Quick Details
-
Car Fitment:
-
Abarth
-
Resolution:
-
1920*1080
-
Function:
-
Other
-
Screen Type:
-
other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jlinkiot
-
Model Number:
-
TV106
-
Size:
-
100mm*52mm*18mm
Product Description

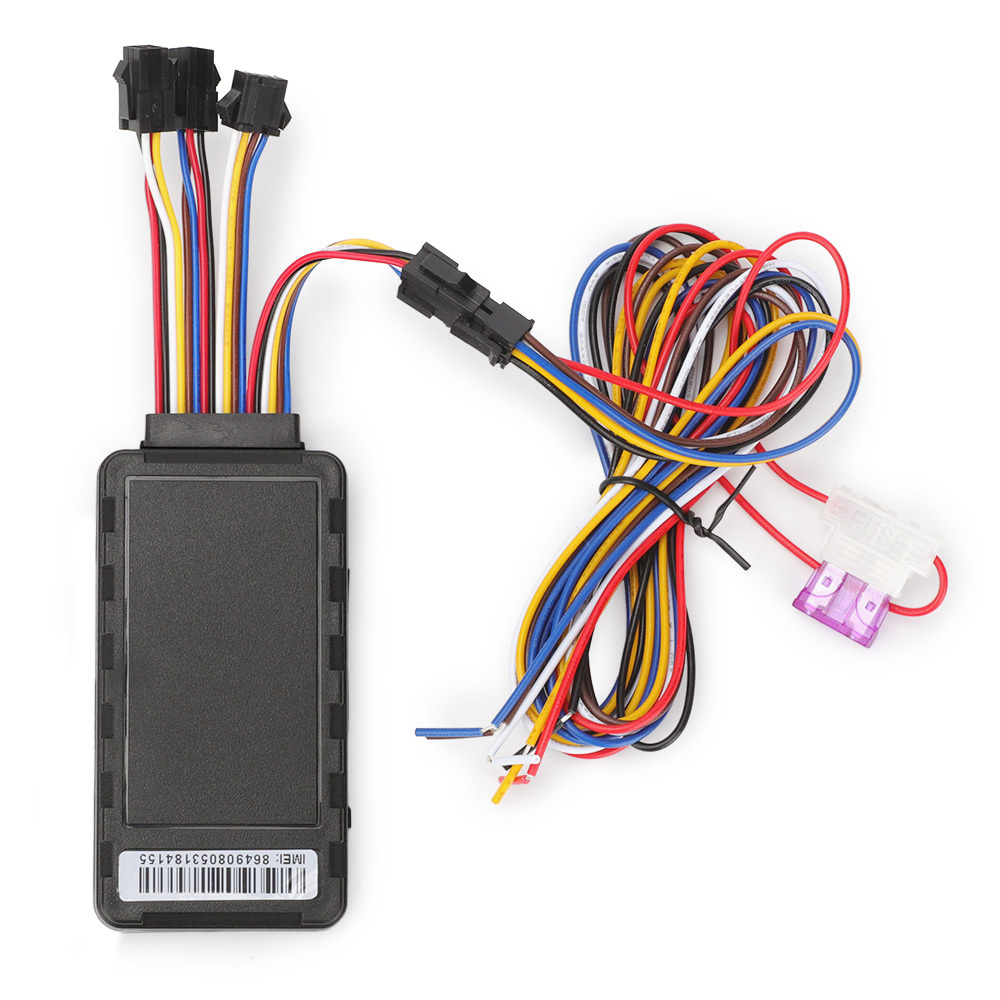

TV106 is mainly applied to DLT regulatory requirements for operating vehicles, fleet management, school buses and buses.
Specification
|
GNSS Specification
|
|
|
SYSTEM
|
GPS+BEIDOU+GLONASS
|
|
Chipset
|
AT6558R
|
|
Receiver
|
32 Channel
|
|
Cold start
|
≤32s
|
|
Hot start
|
≤1s
|
|
Cold start capture sensitivity
|
-148dBm
|
|
Tracking sensitivity
|
-165dBm
|
|
Accuracy
|
<2.5m（CEP50）
|
|
4G Module Specification
|
|
|
SYSTEM
|
LTE(CAT1)/GSM/GPRS
|
|
Bands
|
-CN
LTE FDD：Band 1,3,5,8 LTE TDD：Band 34,38,39,40,41 GSM：900/1800MHz -EU LTE FDD：Band 1,3,7,8,20,28* GSM：900/1800MHz -LA LTE FDD：Band 1,2,3,4,5,7,8,28,66 GSM：850/900/1800MHz/1900MHz |
|
General Specification
|
|
|
Demensions
|
100*52*18mm
|
|
Weight
|
0.15kg
|
|
Working Voltage
|
DC-9-40V
|
|
Operating Current
|
130mA@DC12V
|
|
Back-up Battery
|
150mAh@3.7V
|
|
Operating Temperature
|
-20℃-80℃
|
|
Operating Humidity
|
5%-95% non-condensing
|
|
Input IO
|
4 way (default for ACC/SOS/AC/Custom)
|
|
Output IO
|
3 way (default for cut off oil and electricity\buzzer\DC5V peripheral power supply
|
|
Analog Input
|
2 way (default for fuel consumption/custom)
|
|
RS232interface
|
1 way (default docking MSR100 magnetic stripe reader)
|
|
voice call
|
One two-way MIC and one horn
|
|
Motion sensor
|
3D acceleration sensor
|
|
Memory
|
8MB flash (1.3MB available for users)
|
|
Antenna
|
GSM/GPS default built-in antenna
|
|
LED
|
3 indicator
|
|
SIM
|
Micro SIM card
|
Details Images
FAQ
What is your terms of packing?
Generally, we pack our goods in neutral blank brown-paper boxes.
What is your terms of payment?
(1). For order quantity less than 200pcs,100% TT accepted;
(2). For order quantity more than 200pcs, T/T 30% as deposit, and 70% before delivery;
(3). For sample and order less than 100pcs, Trade Assurance accepted.
What is your terms of delivery?
EXW, CNF Shenzhen or FOB Shenzhen.
How about your delivery time?
Generally, it will take 2-3 days after receiving your advance payment. The mass production delivery time depends on the items and the quantity of your order, maximum 10-20 days.
Do you accept re-branding?
Yes, re-branding on product case and gift box is available.
Can you do hardware/firmware customization?
Yes, OEM/ODM is our specialty. Our R&D team has more than 6years of industry experience.
What is your policy sample?
If we have ready-made parts inventory, we can provide samples, but the customer must pay the sample cost and higher cost.
How are quality control and warranty?
All products have been 100% strictly Quality Checked in the house before packing.
How do you make our business long-term and good relationship?
We will maintain good quality and competitive prices to ensure that our customers benefit. We regard every customer as our friend, and we sincerely do business with them and make friends with them. No matter where they come from.
