Quick Details
-
Brand Name:
-
XFusion Server
-
Model Number:
-
2288H V7
-
Place of Origin:
-
Beijing, China
Quick Details
-
Type:
-
Rack
-
Processor Type:
-
Intel Xeon
-
Processor Main Frequency:
-
2.0GHz
-
Brand Name:
-
XFusion Server
-
Model Number:
-
2288H V7
-
Place of Origin:
-
Beijing, China
Products Description

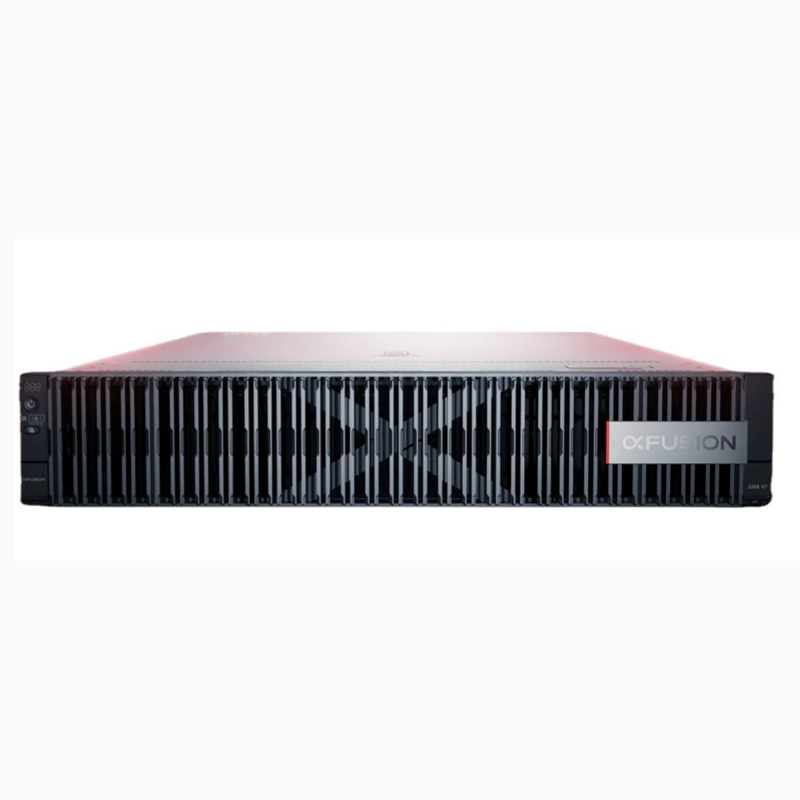

Xfusion Servers 2288H V7
The FusionServer 2288H V7 is a new-generation 2U 2-socket rack server designed for the Internet, Internet Data Center(IDC), cloud computing, enterprise business, and telecom. It is also ideal for IT core services, virtualization, high-performance computing, distributed storage, big data processing, and other complex workloads. The 2288H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.
Huawei XFusion Server 2288H V7 Specs:
We accept OEM order.If you want to custom your server,please send us your configuration and budget so that we will give you competitve price and professional services.
|
Item
|
Huawei Xfusion Servers 2288H V7 Computer Win Server 2022 Standard GPU 2U Rackmount Server Chassis
|
|
Brand
|
Xfusion Servers
|
|
Type
|
2U Dual Socket Rack Server
|
|
Processor
|
1 or 2 x 4rd Gen Intel Xeon Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor
|
|
Memory
|
32 DDR5 DIMMs, with up to 4800 MT/s speed.
Supports memory expansion via CXL with up to 16 x DDR5 or DDR4 DIMM slots; up to 48 x DIMM slots
|
|
Storage Controllers
|
RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
.
|
|
Drive Bays
|
Hot-swappable drives with the following configuration options are supported:
• 8 to 31 x 2.5" SAS/SATA/SSD drives • 12 to 20 x 3.5" SAS/SATA drives • 4/8/16/24 x NVMe SSDs • 36 x E1.s SSDs or 48 x E3.s SSDs • Up to 45 x 2.5" drives, or 34 x full NVMe SSDs • 2 x M.2 SSDs |
|
Power Supply
|
2 x hot-swappable PSUs in 1+1 redundancy mode. Supported options include:
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs 1000 W (input: 100 V to 127 V AC) 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC) • 3000 W AC Titanium PSUs 2500 W (input: 200 V to 220 V AC) 2900 W (input: 220 V to 230 V AC) 3000 W (input: 230 to 240 V AC) • 2000 W AC Platinum PSU 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) |
Recommend Products
Product Structure
Huawei 2U Rack Server Structure:
