Quick Details
-
Product Name:
-
exported low cost china prefabricated homes
-
Material:
-
eps sandwich panel, steel,concrete
-
Install time:
-
within 7 days
-
CUSTOM-MADE:
-
accepted
-
Service Life:
-
60-70 years
-
Fire rated partition:
-
4 hour FRP
-
Anti-earthquake:
-
Class 7.5
-
Acoustic performance:
-
46 dB
-
Character:
-
environmental, easy and fast to install
-
Certificate:
-
ISO 9001 ;CQGC; CNAS, BV
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
rigel
-
Model Number:
-
rigel-20
-
Product Name:
-
exported low cost china prefabricated homes
-
Material:
-
eps sandwich panel, steel,concrete
-
Install time:
-
within 7 days
-
CUSTOM-MADE:
-
accepted
-
Service Life:
-
60-70 years
-
Fire rated partition:
-
4 hour FRP
-
Anti-earthquake:
-
Class 7.5
-
Acoustic performance:
-
46 dB
-
Character:
-
environmental, easy and fast to install
-
Certificate:
-
ISO 9001 ;CQGC; CNAS, BV
Exported low cost china prefabricated homes
1. Introdcution :
When build single floor house,we only need rigel panel.
When build double or more floors, we will build the concrete or steel frame first. Then build the rigel panel as the exterior and interior wall. And,The roof system , floor system and wall body of Rigel Prefab House are all made by rigel lightweight eps cement sandwich panel , it has the advantages of fast construction , beautiful , durable and environmentally-friendly .
The house's design &decoration can be made according with customer's requirement and we will provide complete designing & installation drawings , installation guide and send engineers to provide with projects
2. Main Material of Prefab House :
|
main material
|
|||||
| steel structure and wall body | wall structure frame | U shape steel frame | roof&ceiling | steel roof truss | C steel or steel structure |
| concrete frame | roof panel | eps cement sandwich panel or color steel sandwich panel | |||
| exterior | eps cement sandwich panel | roof tile | strip slate or glazed tile | ||
| exterior wall decorative board | imitation brick texture wall | ceiling | PVC panel or gypsum board | ||
| interior wall | eps cement sandwich panel | floor | floor lateral support | round steel or concrete | |
| interior wall decorative material | tile | floor girder | H steel | ||
| panel used in kitchen & toilet | eps cement sandwich panel | floor panel | eps cement sandwich panel | ||
| comer post | suquare tube or concrete | floor decorative board | tile or composite wooden floor panel | ||
| wall pillar | rectangular tube or concrete | toliet ground tile | tile | ||
3.Description of EPS Cement Sandwich Panel :
|
EPS cement sandwich wall panel
|
|
|
1.Composition:
•Core materials: cement, EPS, sand and additives. •Surface materials: cement calcium silicate board. |
|
|
2.Specification:
•Thickness: 60, 75, 90, 100, 120, 150, 180mm •Width: 610mm •Length: 2270mm--3000mm (custom-made length can be made for volumn order). |
|
|
3.Usage:
Interior wall, exterior wall,roof and floor on steel or concrete structure. For various buildings, additions or renovations. |
|
|
4.Characteristics:
•Energy-saving, lightweight, and environmental protection
|
|
4. Install process of EPS Cement Sandwich Panel
5 . Install process of prefab house
6. Advantages of Prefab House
The main wall building material is from EPS & cement sandwich wall panel, which will make the prefab house
- 96% ENERGY SAVING warm preservation of DQ Panel
- 300% FAST INSTALLATION
- 39% LABOUR COST SAVING
- 8 GRADE ANTI-SEIMIC
- 240 MINS FIRE PROOF (1000 degree)
- 70 YEARS LIFE SPAN

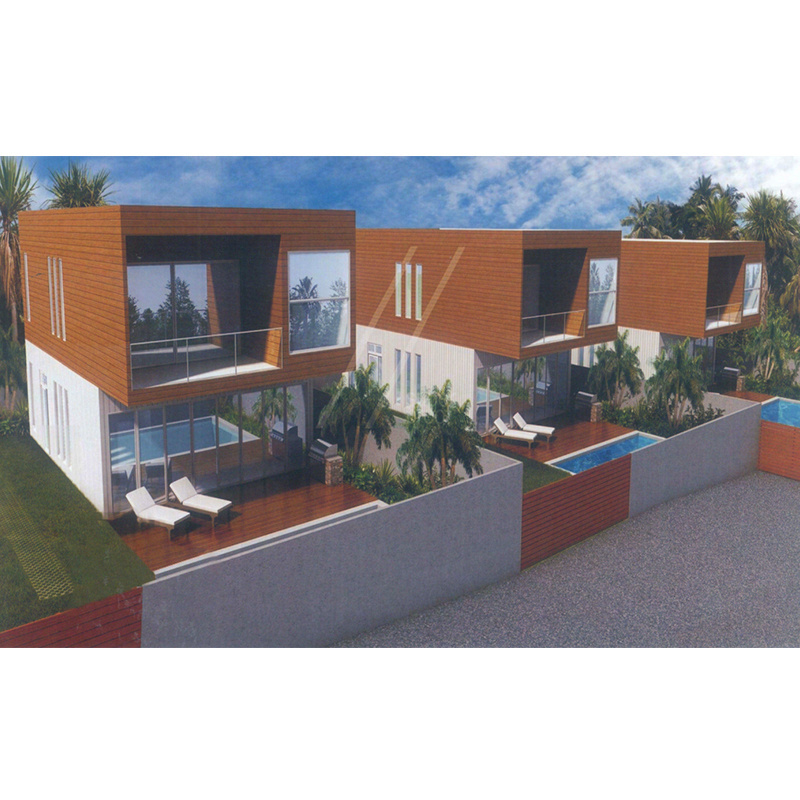

7. Sample of Prefab House
| Item | Specification(mm) | Loading 20GP | Loading 40HQ | ||
| Quantity | Weight | Quantity | Weight | ||
|
EPS&Cement sandwich panel |
2270×610×60mm | 436m²/315pcs | 18000kg | 565m²/409pcs | 26000kg |
| 2270×610×75mm | 349m²/252pcs | 17500kg | 481m²/349pcs | 25900kg | |
| 2270×610×90mm | 287m²/207pcs | 15900kg | 419m²/304pcs | 25769kg | |
| 2270×610×100mm | 262m²189pcs | 16900kg | 376m²/273pcs | 25935kg | |
| 2270×610×120mm | 212m²/153pcs | 15000kg | 340m²/247pcs | 25441kg | |
| 2270×610×150mm | 174m²/126pcs | 16000kg | 287m²/208pcs | 26000kg | |
| 2270×610×180mm | 137m²/99pcs | 14800kg | 230m²/167pcs | 25885kg | |
