Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CAGE
-
Model Number:
-
AEP12/1250-25
-

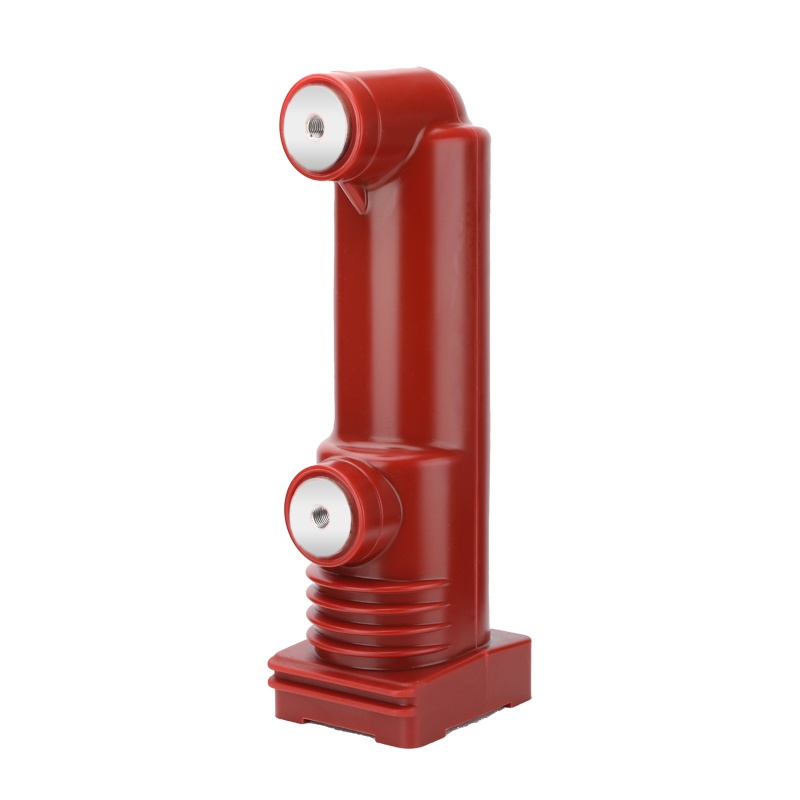

Product name:
-
Embedded Pole
-
Type:
-
Vacuum
-
Rated frequency:
-
50HZ
-
Material:
-
Epoxy Resin
-
Application:
-
Indoor Vacuum Circuit Breaker
-
Colour:
-
Red
Quick Details
-
Breaking Capacity:
-
25kA
-
Rated Voltage:
-
12KV
-
Rated Current:
-
1250A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CAGE
-
Model Number:
-
AEP12/1250-25
-
Product name:
-
Embedded Pole
-
Type:
-
Vacuum
-
Rated frequency:
-
50HZ
-
Material:
-
Epoxy Resin
-
Application:
-
Indoor Vacuum Circuit Breaker
-
Colour:
-
Red
PRODUCT PARAMETERS
|
Rated Voltage
|
12KV
|
|
Rated Current
|
630/1250A
|
|
Rated Frequency
|
50Hz
|
|
Rated Short-time Power Frequency Withstand Voltage (1 min)
|
48kV
|
|
Rated Lightning Impulse Withstand Voltage
|
85kV
|
|
Rated Short-circuit Breaking Current
|
25/31.5kA
|
|
Rated Peak Withstand Current
|
63/80kA
|
|
Rated Short-circuit Making Current
|
63/80kA
|
|
Breaking Operations of Rated Short Circuit Breaking Current
|
30 Times
|
|
Rated Back-to-back Cap Acitor Breaking Current
|
400A
|
|
Rated Breaking Current of Single Capacitor Bank
|
630A
|
|
Rated Short-time Withstand Current
|
25/31.5kA
|
|
Mechanical Life
|
10000Times
|
|
Rated Back-to -back Capacitor Bank Breaking Current
|
400A
|
|
Mechanical Endurance
|
10000 Operations
|
|
Contact Closing Force Due to Bellows and Atmosphere
|
100±30N
|
|
Counterforce at Rated Contact Stroke
|
200±30N
|
|
Circuit Resistance at Rated Contact Force
|
200±40
|
|
Circuit Resistance At Min.Rated Contact Force
|
≤25μ Ω
|
|
Shelf Life
|
20 Years
|
|
Contact Erosion Limit
|
3 mm
|
PRODUCT DISPLAY
RELATED PRODUCTS
COMPANY PROFILE
CERTIFICATES DISPLAY
FAQ
Q:Are you trading company or manufacture?
A: We are factory at Yueqing China.
Q:Can I get some samples
?
A: Yes, 1 set sample order is acceptable.
Q: What is your packaging standard?
A: Usually we use standard foam and carton packaging. If you have special requirements, we can also meet your requirements.
Q:What is the delivery time?
A:It depends on the quantity.
Q: What are your payments?
A:T/T、Western Union、L/C, etc.
Q: Can your factory produce according to customers' requirements?
A:Yes, customized products are acceptable. Please send us the details.
