Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XR
-
Dimension(L*W*H):
-
customized
-
Weight:
-
0.35kg
-
Working Temperature Range:
-
10 - 180 ℃
-
Core Components:
-
resistance wire
-
Insulation Material:
-
Silicone rubber
-
Heating material:
-
etched metal foil
-
Shape:
-
square
-
Mounting:
-
PSA or mechanical
-
Thermocouple:
-
with or w/o
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Online support
-
Marketing Type:
-
New Product 2020
-
Certification:
-
ISO9001
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
220V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XR
-
Dimension(L*W*H):
-
customized
-
Weight:
-
0.35kg
-
Working Temperature Range:
-
10 - 180 ℃
-
Core Components:
-
resistance wire
-
Insulation Material:
-
Silicone rubber
-
Heating material:
-
etched metal foil
-
Shape:
-
square
-
Mounting:
-
PSA or mechanical
-
Thermocouple:
-
with or w/o
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Online support
-
Marketing Type:
-
New Product 2020
-
Certification:
-
ISO9001

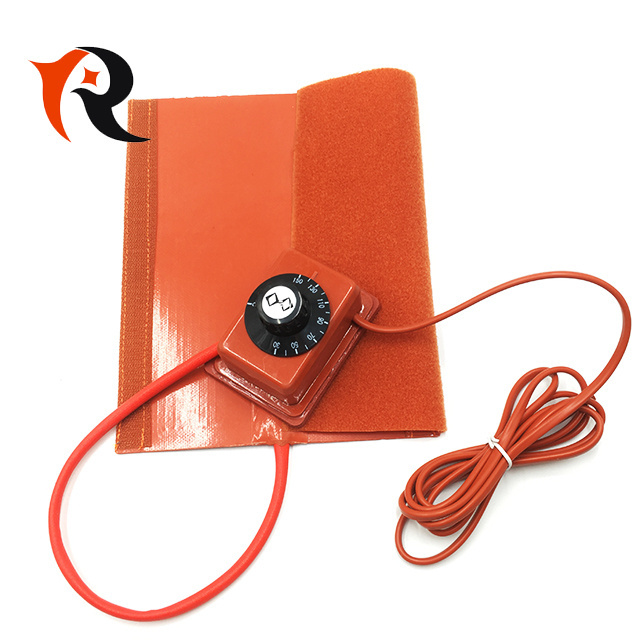

220V silicone rubber heater with temperature control heating pad
| Technical Parameters: | |
| Product Name: | 220V silicone rubber heater with temperature control heating pad |
| Size: | Rectangle (Lenght*Width), Round (Diameter), or provide the drawings |
| Shape: | Round, Rectangle, Square, any shape according to your requirement |
| Voltage Range: | 1.5v -- 400v |
| Power density range: | 0.1w/cm2 - 1w/cm2 |
| Using temperature range: | -60℃--180℃ |
| Optional Accessories: | 3M adhesive; Temperature Controller; Thermostat and so on |
|
Features:
|
|
Silicone rubber heater is a kind of thin film which heats upon electrified, in a standard thickness of 1.5mm, Adopting nickel chrome wires or 0.05 mm~0.10mm thick nickel chrome foils etched to some certain shapes, the heating component is wrapped with heat conducting and insulating materials on both sides, and completed in high-temperature die forming and aging heat treatment.
Main Application:
* Industrial equipment, pipelines, barrels, tanks, etc;
* Thermal transfer equipment;
* Medical equipment and devices;
* Airplane engine heaters and aerospace industry;
* Laser printers, duplicating machines;
* 3D printer.
The key questions which need to be answered before selecting a Silicone heater are:
1. What wattage and voltage will be used?
2. What is the size required?
3. What is the lead wire required?
4. Did you need 3M adhesive or temperature control?
5. Drawing or Sample required for special configuration.
Note:
1. We can custom silicone rubber heaters according to your voltage, power etc;
2. Any size and shape can be customized by your requirement.
