Automatic Hot Foil Stamping Machine Foil Printing Machine
Automatic Hot Foil Stamping Machine Foil Printing Machine
Automatic Hot Foil Stamping Machine Foil Printing Machine
Automatic Hot Foil Stamping Machine Foil Printing Machine
Automatic Hot Foil Stamping Machine Foil Printing Machine
Automatic Hot Foil Stamping Machine Foil Printing Machine
Automatic Hot Foil Stamping Machine Foil Printing Machine
Automatic Hot Foil Stamping Machine Foil Printing Machine

Automatic Hot Foil Stamping Machine Foil Printing Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $7800
≥2 Sets
US $7700
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
220V/1P/50Hz
Place of Origin:
Zhejiang, China
Brand Name:
WITY
Model Number:
TJ-450
Usage:
paper, leather
Dimensions(L*W*H):
1000x1450x1450
Weight:
450 KG
Platen Size:
300*280mm
Model:
TJ-450
Max.paper size:
400x400mm
Effective foil stamping size:
300*280mm
Paper thickness:
80-1500gsm
Stamping Speed:
15-40 pcs/min
max. pressure:
2 tons
Temperature:
0-300 degree

Quick Details

Condition:
New
Plate Type:
aluminum plate
Color & Page:
single color
Voltage:
220V/1P/50Hz
Place of Origin:
Zhejiang, China
Brand Name:
WITY
Model Number:
TJ-450
Usage:
paper, leather
Dimensions(L*W*H):
1000x1450x1450
Weight:
450 KG
Platen Size:
300*280mm
Model:
TJ-450
Max.paper size:
400x400mm
Effective foil stamping size:
300*280mm
Paper thickness:
80-1500gsm
Stamping Speed:
15-40 pcs/min
max. pressure:
2 tons
Temperature:
0-300 degree
Product Description

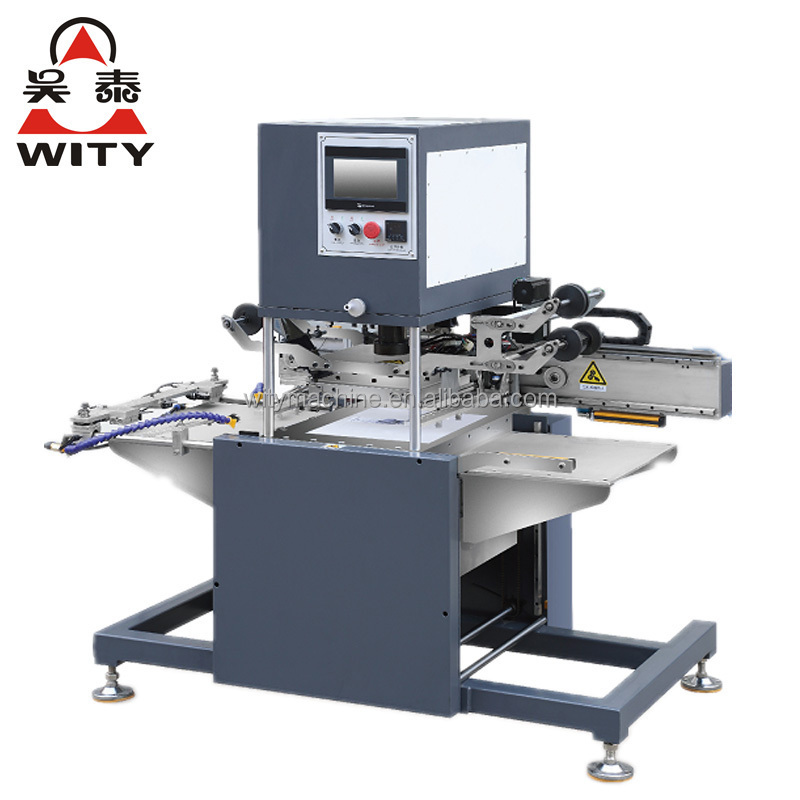

Automatic Foil Stamping Machine
- PLC control, easy to operate with one person. - Foil stamping pressure, temperature and time can be adjusted.
- The feeding guide can be adjusted in both direction.
- Foil stamping plate vertical position can be micro-adjusted through touch screen.
- Servo motor for feeding, paper deliver and collecting with sensor for positioning.
- Feeding and collecting table work up and down automatically.
- Automatic working mode.
- With safety protection, machine will automatically stop when sensing operator approaching dangerous area.
Specification
Model
TJ-450
TJ550
TJ-780
Max. Paper size
400*400mm
550*500mm
750*550mm
Effective foil stamping size
300*280mm
300*280mm
500*500mm
Paper thickness
80-1500gsm
80-1500gsm
80-1500gsm
Working speed
15-40pcs/min
15-35pcs/min
15-30pcs/min
Max. pressure
1 tons
1.2 tons
2 tons
Temperature
0-300℃
0-300℃
0-300℃
Feeding paper height
320mm
500mm
500mm
Delivery paper height
320mm
500mm
500mm
Air supply
0.6Mpa
0.6Mpa
0.6Mpa
Power required
220V 1P
380V 3P
380V 3P
Machine weight
About 450KGS
About 750 KGS
About 1500KGS
Machine dimension
1000*1450*1450mm
1700*1150*1600mm
2650*1450*1900mm
