Quick Details
-
Brand Name:
-
BESTJADES
-
Pressure:
-
Medium Pressure
-
Working Pressure:
-
0.05Mpa - 1Mpa
-
Cold Water Supply:
-
4°C-29 °C
-
Hot Water Supply:
-
40 °C -90 °C
-
Control precision::
-
±2 °C
Quick Details
-
Port Size:
-
DN20-DN25, 3/4''/1''
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
BJ45008
-
Brand Name:
-
BESTJADES
-
Pressure:
-
Medium Pressure
-
Working Pressure:
-
0.05Mpa - 1Mpa
-
Cold Water Supply:
-
4°C-29 °C
-
Hot Water Supply:
-
40 °C -90 °C
-
Control precision::
-
±2 °C
BASIC INFORMATION

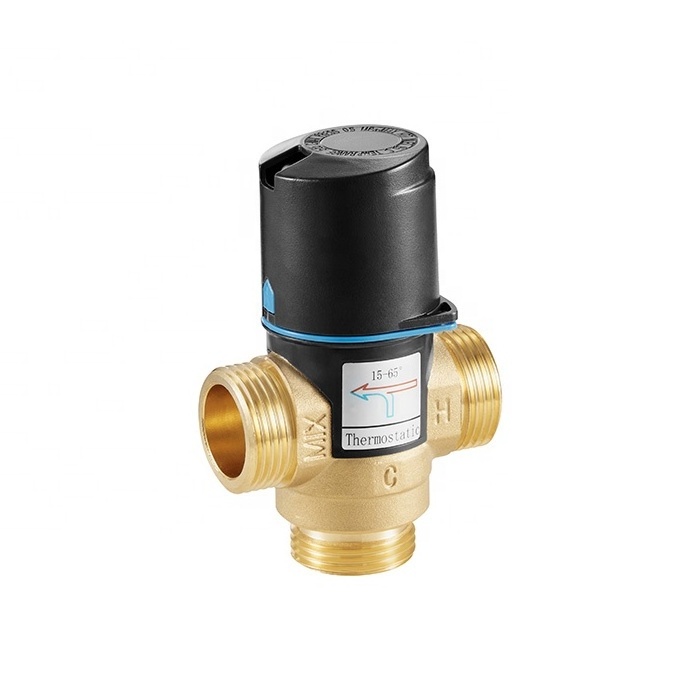

| Descriptions | 3 Way Boiler Brass Thermostatic Mixing Valve |
| Model No. | BJ45008 |
| Material |
Brass |
| Processing | Forging, CNC Machining |
| Surface Treatment |
Brass Color |
| Size |
3/4''/1'' |
| Working Medium | Hot/Cold water |
| Cold Water Inlet Temprature | 4°C-29 °C |
| Hot Water Inlet Temprature | 40 °C -90 °C |
| Mixed Outlet Water Temperature | 20°C -60 °C |
| Working Pressure | 0.03-1Mpa |
| Control Precision | ±2 °C |
FEATURES & ADVANTAGES
>> Rapid failsafe on either hot or cold supply failure
>> Imported sensor element, d elivers stable mixed water temp erature
>> Extended mix temperature range : 20℃-60℃
>> Forging process, 100% no leakage
>> High precision machining, p rofessional engineered designed and produced, to give out excellent performance.
INSTALLATIONS
1. All installations should be carried out by a Licensed Professional.
2.Install in accordance with markings on valve body. i.e. hot water inlet-marked H, cold water inlet-marked C.
3. After temperature setting, if inlets temperature or pressure fluctuates, outlet temperature variation is within +/-2 C.
4. The external check valves at inlets prevent cross-flow of hot&cold water when inlets pressure is not the same.
5. If the ratio between two inlets is too large, one flow-limiting valve should be fixed at the side of higher pressure.
6. Prior to installation, provisions should be made to flush the piping of any debris or other foreign materials to ensure proper system operation.
