Quick Details
-
Drilling Speed:
-
790 - 1200 r
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
DL Drilling Tapping Machine
-
Model Number:
-
DL-ZS1450*2
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1390*1110*1750MM
-
Power (kW):
-
3
-
Weight (KG):
-
1200 KG
-
Marketing Type:
-
Part Processing Machine
-
Type:
-
Automatic drilling and tapping machine
-
Application:
-
Metal processing
-
Weight of the whole machine:
-
1300 kg
-
Color:
-
Customizable
-
Usage:
-
Drilling and tapping metal parts
-
Size of Appearance of Machine:
-
650 x 1130 x 1630 mm
-
Size of working plate:
-
500 x 225 mm
-
Go up and down distance:
-
350 mm
-
Max drill capacity:
-
19/25/32mm
Quick Details
-
type:
-
Drilling & Tapping Machine
-
Max. Drilling Dia. (mm):
-
90 mm
-
Range of Spindle Speed(r.p.m):
-
10 - 1400 r.p.m
-
Drilling Speed:
-
790 - 1200 r
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
DL Drilling Tapping Machine
-
Model Number:
-
DL-ZS1450*2
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1390*1110*1750MM
-
Power (kW):
-
3
-
Weight (KG):
-
1200 KG
-
Marketing Type:
-
Part Processing Machine
-
Type:
-
Automatic drilling and tapping machine
-
Application:
-
Metal processing
-
Weight of the whole machine:
-
1300 kg
-
Color:
-
Customizable
-
Usage:
-
Drilling and tapping metal parts
-
Size of Appearance of Machine:
-
650 x 1130 x 1630 mm
-
Size of working plate:
-
500 x 225 mm
-
Go up and down distance:
-
350 mm
-
Max drill capacity:
-
19/25/32mm
Product Description
What
Advantage of Tapping Drilling Machine
?
1. With wide range of speed and feed,with manual power and fine feeds.The feed of machines are engaged easily and disengaged at any time.
2. With safe and reliable feed machine,all parts are operated and changed easily.
3. All controls centralized on the head stock and easy to operate.With rapid and accurate hydraulic preselection of speeds and feeds of spindle.
4. Main parts are made by machine center which is imported from foreign.KIA with high precision and efficiency,ensuring reliability and high quality.
5. Integrating technology for casting parts is excellent,adopting casting equipment,ensuring high quality of material for basic parts.
6. Spindle parts are made by special high quality steel heat treatment to be made by first class equipment,ensuring high strength and durability.
7. Main gears are processed by gear grinding.With high precision and low noise.
8. Machine tool applies to drill hole,expand hole,ream hole,get into heavy first hole and tap.

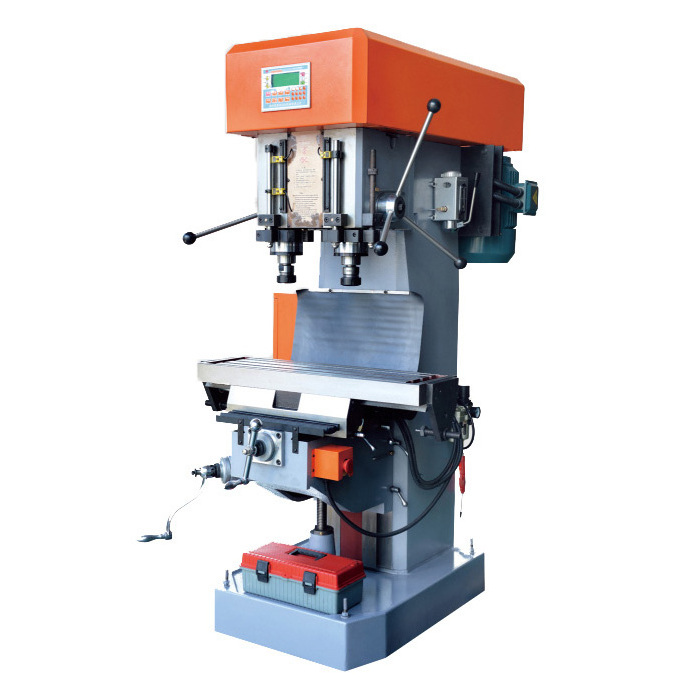

Machine Details
|
Technical Parameter
|
|
|
|
Type
|
ZS4150*2
|
|
|
Performance Dimension
|
1390*1110*1750(mm)
|
|
|
Machine Weight
|
1200KG
|
|
|
Worktable Size
|
800*230mm
|
|
|
Worktable Stoke Length
|
240mm
|
|
|
Main Spindles number
|
2 unit
|
|
|
Spindle Forms
|
MT4
|
|
|
Spindle Power
|
3KW/6P
|
|
|
Spindle Rotating Speed
|
left: 675 (r/min)
right: 675/1000 (r/min)
|
|
|
Spindle Outer Diameter
|
90mm
|
|
