Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
45
-
Input Voltage(V):
-
AC 90-240V
-
Lamp Luminous Flux(lm):
-
2500
-
CRI (Ra>):
-
89
-
Working Temperature(℃):
-
-25 - 45
-
Working Lifetime(Hour):
-
60000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MJ
-
Model Number:
-
MJ-3A16
-
Product Type:
-
super power landmark laser light
-
Rated Voltage:
-
AC100~240V 50/60Hz
-
Rated Power:
-
<2000W
-
Scanner:
-
DT40K high speed module scanner
-
Scan angle:
-
±30°
-
Input Signal:
-
±5V
-
Linearity Distortion:
-
<2%
-
Net Weight:
-
100 KG
-
Gross Weight:
-
150 KG
-
Product Size:
-
80X60X112cm
Quick Details
-
Color Temperature(CCT):
-
RGB
-
Type:
-
LASER LIGHTS
-
Lamp Power(W):
-
25
-
Lamp Luminous Efficiency(lm/w):
-
45
-
Input Voltage(V):
-
AC 90-240V
-
Lamp Luminous Flux(lm):
-
2500
-
CRI (Ra>):
-
89
-
Working Temperature(℃):
-
-25 - 45
-
Working Lifetime(Hour):
-
60000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MJ
-
Model Number:
-
MJ-3A16
-
Product Type:
-
super power landmark laser light
-
Rated Voltage:
-
AC100~240V 50/60Hz
-
Rated Power:
-
<2000W
-
Scanner:
-
DT40K high speed module scanner
-
Scan angle:
-
±30°
-
Input Signal:
-
±5V
-
Linearity Distortion:
-
<2%
-
Net Weight:
-
100 KG
-
Gross Weight:
-
150 KG
-
Product Size:
-
80X60X112cm
Specification:
High power RGB laser scanning system, set the application of laser technology, computer image processing technology and the high-speed galvanometer control technology , will be pure, dazzle beautiful RGB laser over the city changes the dynamic line, surface, body of revolution, and edit the graphics and text. Visual effect is strong, shock, with majestic demeanor, is city landmark buildings and famous scenic , is a big stage advertising, party and designs city-lighting project, a symbol of high quality .At the top of the bridge can also be installed to increase the highlights of the night view of the bridge.
|
Model |
Description |
Configuration |
|
MJ-3A16-25000 |
25W RGB landmark laser |
R635nm/5W;G532nm/8W;B447/12W |
|
MJ-3A16-20000 |
20W RGB landmark laser |
R635nm/4W;G532nm/6W;B447/10W |
|
MJ-3A16-15000 |
15W RGB landmark laser |
R635nm/3W;G532nm/5W;B447/7W |
Technical Parameters:
1. Rated Voltage: AC100~240V 50/60Hz
2. Rated Power: <2000W
3. Scanner: DT40K high speed module scanner (Can be upgraded to 60K)
4. Scan angle:±30°
5. Input signal:±5V
6. Linearity distortion<2%)
7. Modulation: TTL (analog modulation is optional)
8. Control Modes: Automatic/DMX512(25CH)/Compatible ILDA laser show software/(SD card is optional)
9. Control Modes:ILDA Standard DB25 Connector,International Standard DMX 512
10. Pan:320°
11. Water resistant:IP33(Outdoor use)
12. Application: Cityscape, Architectural landmark,Laser show,Advertising promotion, etc
13. Product Size: 80X60X112CM
14. Net Weight 100 KG
15. Gross Weight: 150 KG

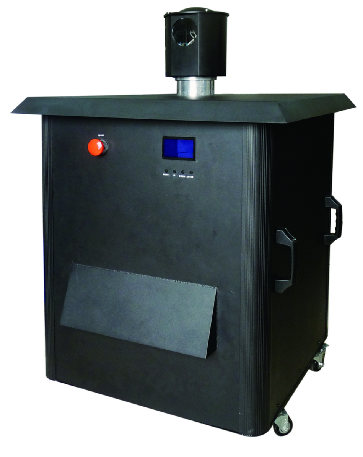

Product Photos:
