Flexible Single Color LED Cuttable 288 LEDs/m DC24V SMD 2835 Flexible LED Sheet Light Panel For Advertising Ceiling

Flexible Single Color LED Cuttable 288 LEDs/m DC24V SMD 2835 Flexible LED Sheet Light Panel For Advertising Ceiling

FOB Reference Price: Get Latest Price

≥5 Pieces

US $13.74

≥5000 Pieces

US $13.04

≥10000 Pieces

US $11.23

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Color Temperature(CCT):: Single Color LED Sheet Light

Support Dimmer:: Yes for LED Sheet Light

Lifespan (hours):: 50000 for LED Sheet Light

Working Time (hours):: 50000 for LED Sheet Light

Product Weight（kg）:: 0.2

Light Source:: SMD2835 LED for LED Sheet Light

Place of Origin:: Guangdong, China

Model Number:: YQ-LS2835V24 Single Color LED Sheet Light

Brand Name:: Metalux

Input Voltage(V):: DC24V LED Sheet Light

Working Lifetime(Hour):: 50000H for LED Sheet Light

Lamp Luminous Flux(lm):: 90-110 Lumens/w

Chip Qty of LED Sheet Light:: 288chips/pcs

Size of LED Sheet Light:: 480mm * 240mm each pcs

PCB of LED Sheet Light:: 3OZ

Power of LED Sheet Light:: 30W

LED Type of LED Sheet Light:: SMD2835

Package for LED Sheet Light:: An anti-static bag apiece

Mounting Method of LED Sheet:: Stick, Screw, Or Nail

OEM/ODM of LED Sheet Light:: Welcome

Dimming:: Available

LED Chip:: Original Epistar Chip

Quick Details

Lamp Luminous Efficiency(lm/w):: 90-110 Lumens/w for LED Sheet Light

IP Rating:: IP20 non-waterproof LED Sheet Light

Warranty(Year):: 3-Year for LED Sheet Light

Color Temperature(CCT):: Single Color LED Sheet Light

Support Dimmer:: Yes for LED Sheet Light

Lifespan (hours):: 50000 for LED Sheet Light

Working Time (hours):: 50000 for LED Sheet Light

Product Weight（kg）:: 0.2

Light Source:: SMD2835 LED for LED Sheet Light

Place of Origin:: Guangdong, China

Model Number:: YQ-LS2835V24 Single Color LED Sheet Light

Brand Name:: Metalux

Input Voltage(V):: DC24V LED Sheet Light

Working Lifetime(Hour):: 50000H for LED Sheet Light

Lamp Luminous Flux(lm):: 90-110 Lumens/w

Chip Qty of LED Sheet Light:: 288chips/pcs

Size of LED Sheet Light:: 480mm * 240mm each pcs

PCB of LED Sheet Light:: 3OZ

Power of LED Sheet Light:: 30W

LED Type of LED Sheet Light:: SMD2835

Package for LED Sheet Light:: An anti-static bag apiece

Mounting Method of LED Sheet:: Stick, Screw, Or Nail

OEM/ODM of LED Sheet Light:: Welcome

Dimming:: Available

LED Chip:: Original Epistar Chip

Products Description

Flexible LED Sheet Light

※ High color consistency, 3 Step Macadam

※ High CRI, Ra>90 / Ra>95

※ 1800K ~ 6500K/ Red/Green/Blue/Yellow/Amber/Pink and other custom CCT available

※Dual color, multi color and addressable RGB available
※M ore than 50000-hour lifespan

※ All of Materials Are Accord With RoHS & CE & EMC & ERP2.0 & REACH & FCC & ETL.

※ As a manufacturer, we can customize different sizes, voltage, power, color temperature and color rendering index according to customers' requirements.

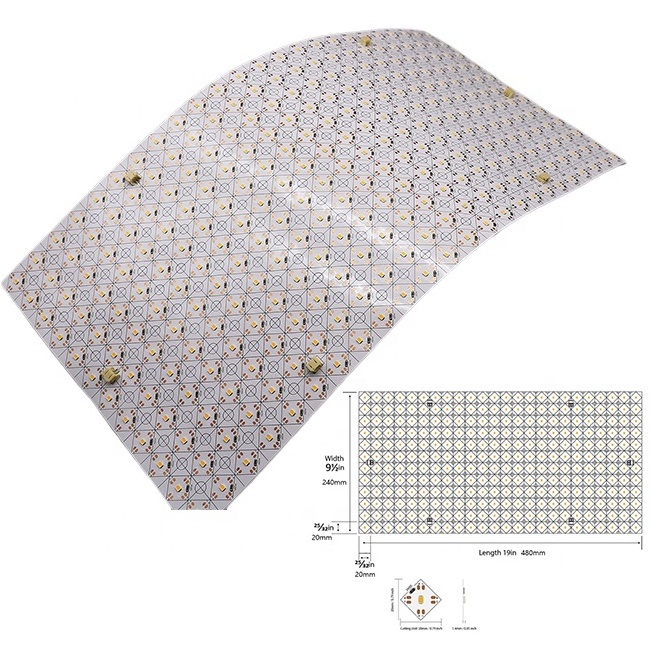

Metalux LED Limited Flexible LED Sheet Light Parameters
Part Number	YQ-LS2835V24
Size ( Length * Width)	480mm × 240mm
LED Quantity	288 LED
PCB & Color	3OZ & White board
Cutting Unit	20mm × 20mm (1LEDs)
Input Voltage	DC24V
Power	30W
Beam Angle	120 °
Color	Single Color (2700k/3000k/4000k/6000k)
IP Grade	IP20-non waterproof
Operating Temperature & Beam Angle	-25 to 45 ℃ & 180 °
Cetification	CE & LVD & EMC & RoHS & REACH & ERP2.0 & FCC & ETL
LED Type	SMD2835
Package Bag Size	510mm × 300mm
Package Carton MEAS	100pcs/CTN
Gross Weight	0.2kg per piece

Accessories

① Power Lead

② Long Jumper Wire

③ Short Jumper Wire

④ Cable Management Clip

⑤ Stand-off Spacer

⑥ WAGO Connector

PRODUCT FEATURE

Cut

Flexible LED sheets can be cut into small units along cutting lines of different directions allowing on-site

DIY, which shortening the lead time

of custom orders.

Fold

The Flexible Circuit Board (FCB) can bend along both axes and diagonally to fit various irregular shapes performing seamless and uniform backlighting effects for translucent materials.

Connect

Each side of LED flexible sheets have connectors for jumper wires to interconnect quickly and easily eliminating the need to solder and thus speeding installation.

Color Temperature Customization

Single Colour LED Sheet

2700K ~ 6500K Tunable White LED Sheet

R G B LED Sheet

R G B W 4in1 LED Sheet

R G B C W 5in1 LED Sheet

Addressable R G B LED Sheet

SDCM & Binning

Spectroscopic standard of Metalux LED Limited
Complying with international ANSI standard, Metalux divides every CCT into 2 or 3 bins, which is as
small as 2-step, to ensure customers to get the same color even for different orders.

SDCM <3, no visual difference between the same batch of products.

Customer-specific Bin management.
Always the same Bin for different batches.
One bin, 3-step. No visual difference forever.

Color Application Guidelines

Packaging & Delivery

Delivery Time

※ COB LED Strip delivery time will need 5-7days for normal orders.

※ SMD LED Strip delivery time will need 5-7days for normal orders.

※LED Sheet delivery time will need 5-7days for normal orders.

※ LED Module delivery time will need 3-5days for normal orders.

※ Aluminium Profile delivery time will need 3-5days for normal orders.

Remark: The delivery dates mentioned above are all in stock. For special products, please ask the customer service who serves you 24 hours a day.

FAQ

1. What is the main market for METALUNX Lighting?

We are selling more to EU and North America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new BENLED Lighting. We are also optimistic about the markets for other American and Asian regions.

2. Why Choose METALUX LED Sheets?

This LED sheet is manufactured using the highest quality components available on the market for the price making it a professional and commercial grade product. METALUX LED sheets carry a typical lifespan of 50000 Hours and come
complete with a 3-year guarantee to ensure superior quality and continued high performance.

3. Can I LED sheets?

How to cut LED sheets? To cut the sheets, you only need a pair of scissors. Of course, use a ruler to measure the size you need before cutting it. The circuit board of the sheet light has clearly marked the places that can be cut, and it can be cut along those lines.

4. Who can I contact for help or if I have any questions about LED sheet lights?

To learn more about reducing the challenges and costs associated with coordination of benefits, contact our sales representative or email: info@metalux-led.com
