Quick Details
-
Model Number:
-
MHD-900-06
-
Product name:
-

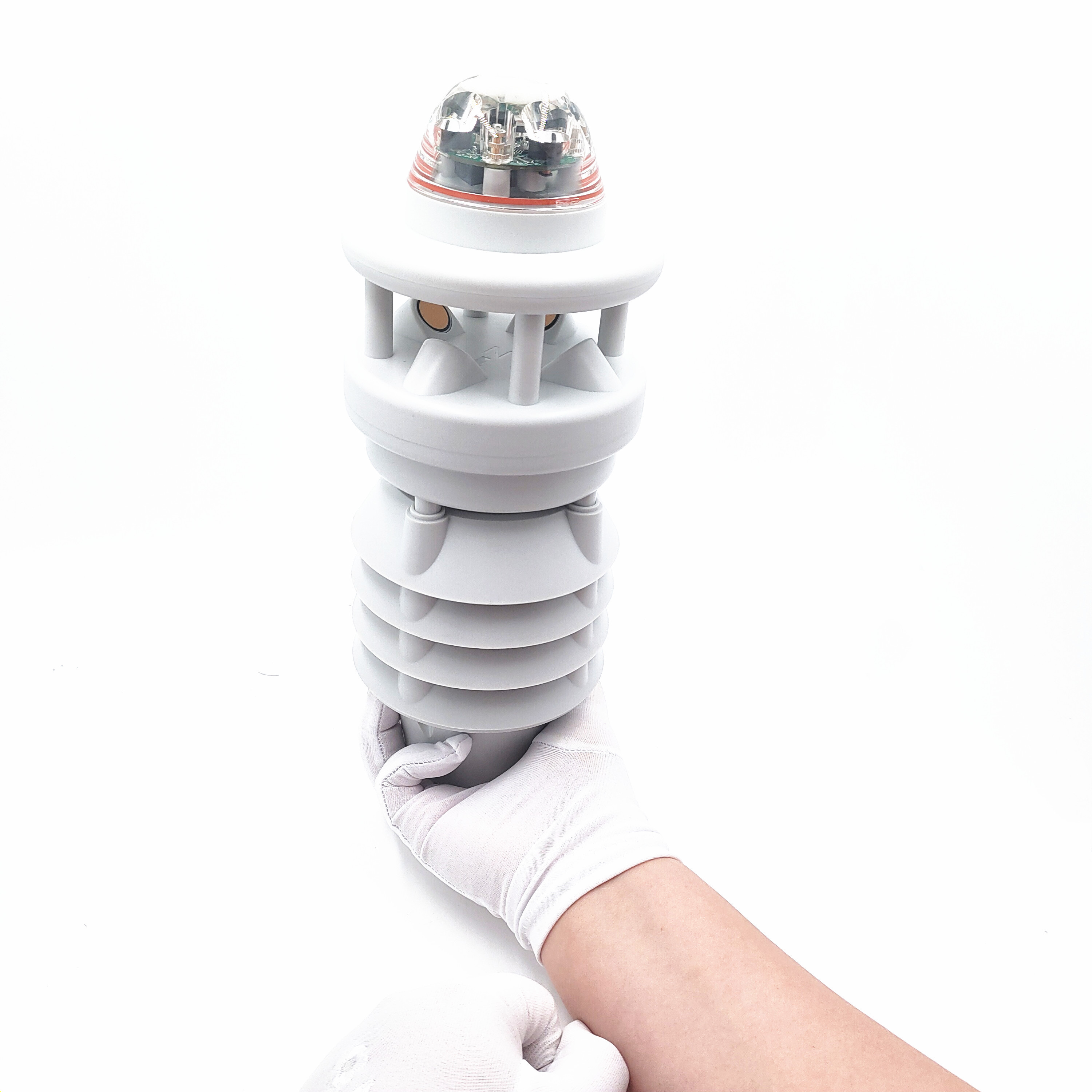

10 in 1 compact weather station
-
Measure values:
-
Temp,humi,wind speed,direction,air pressure,PM,rainfall so on
-
Output:
-
RS485 modbus protocol
-
Material:
-
ASA Engineering Plastics ( 10 Years Uselife)
-
Wireless module:
-
GPRS 4G WIFI
-
LORA LORAWAN:
-
Support
-
Match cloud server and software:
-
Support
-
MOQ:
-
1pc
-
Application:
-
Agriculture Highway Environmental protection ,Road, Smart street light
Quick Details
-
Warranty:
-
1 year, 1 Year Under Normal
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
HONDETECH
-
Model Number:
-
MHD-900-06
-
Product name:
-
10 in 1 compact weather station
-
Measure values:
-
Temp,humi,wind speed,direction,air pressure,PM,rainfall so on
-
Output:
-
RS485 modbus protocol
-
Material:
-
ASA Engineering Plastics ( 10 Years Uselife)
-
Wireless module:
-
GPRS 4G WIFI
-
LORA LORAWAN:
-
Support
-
Match cloud server and software:
-
Support
-
MOQ:
-
1pc
-
Application:
-
Agriculture Highway Environmental protection ,Road, Smart street light
Application scenario
Product Description
|
Measurement parameters
|
|
|
|
|||
|
Parameters Name
|
10 in 1:
Temperature, Humidity, Wind speed, Wind direction, Air pressure, PM2.5, PM10, Rainfall，Noise，Illumination/solar radiation
|
|
|
|||
|
Parameters
|
Measure range
|
Resolution
|
Accurancy
|
|||
|
Air temperature
|
-40-60℃
|
0.01℃
|
±0.3℃（25℃）
|
|||
|
Air relative humidity
|
0-100%RH
|
0.01%RH
|
±3%RH(<80%RH)
|
|||
|
Atmospheric pressure
|
500-1100hpa
|
0.1hpa
|
±0.5hpa（0-30℃）
|
|||
|
Wind speed
|
0-60m/s
|
0.01m/s
|
±（0.3+3%V）m/s
|
|||
|
Wind direction
|
0-359.9°
|
0.1°
|
±3°
|
|||
|
PM2.5
|
0-500ug/m³
|
1ug/m³
|
±(10+10%)ug/m³
|
|||
|
PM10
|
0-500ug/m³
|
1ug/m³
|
±(10+10%)ug/m³
|
|||
|
Rainfall
|
0-200mm/h
|
0.2mm
|
±15%
|
|||
|
Noise
|
30-130dB
|
±1.5dB
|
0.1dB
|
|||
|
Illumination/solar radiation
|
0-200KLux
|
10Lux
|
±3% or 1%F.S
|
|||
|
|
0-2000W/㎡
|
1W
|
±5%
|
|||
|
* Other customizable parameters
|
Ultraviolet,CO2,CO,NO2,SO2,O3,H2S,TVOC
|
|
|
|||
|
Monitoring principle
|
Air temperature and humidity:
Swiss Sensirion digital temperature and humidity sensor
|
|
|
|||
|
|
Wind speed and direction: Ultrasonic sensor
|
|
|
|||
|
|
|
|
|
|||
|
Technical parameter
|
|
|
|
|||
|
Stability
|
Less than 1% during the life of the sensor
|
|
|
|||
|
Response time
|
Less than 10 seconds
|
|
|
|||
|
Warm-up time
|
30S
|
|
|
|||
|
Supply voltage
|
9-24VDC
|
|
|
|||
|
Working current
|
DC12V≤180ma
|
|
|
|||
|
Power consumption
|
DC12V≤2.16W
|
|
|
|||
|
Life time
|
In addition to SO2 \ NO2 \ CO \ O3 \ PM2.5 \ PM10 (normal environment for 1 year, high pollution environment is not guaranteed),
life is not less than 3 years |
|
|
|||
|
Output
|
RS485, MODBUS communication protocol
|
|
|
|||
|
Housing material
|
ASA engineering plastics which can be used for 10 years outside
|
|
|
|||
|
Working environment
|
Temperature -30 ～ 70 ℃, working humidity: 0-100%
|
|
|
|||
|
Storage conditions
|
-40 ~ 60 ℃
|
|
|
|||
|
Standard cable length
|
2 meters
|
|
|
|||
|
The farthest lead length
|
RS485 1000 meters
|
|
|
|||
|
Protection level
|
IP65
|
|
|
|||
|
Electronic compass
|
Optional
|
|
|
|||
|
GPS
|
Optional
|
|
|
|||
|
Wireless transmission
|
|
|
|
|||
|
Wireless transmission
|
LORA / LORAWAN(eu868mhz,915mhz,434mhz), GPRS, 4G,WIFI
|
|
|
|||
|
Mounting Accessories
|
|
|
|
|||
|
Stand pole
|
1.5 meters, 2 meters ,3 meters higth, the other higth can be customize
|
|
|
|||
|
Equiment case
|
Stainless steel waterproof
|
|
|
|||
|
Ground cage
|
Can supply the matched ground cage to burried in the ground
|
|
|
|||
|
Lightning rod
|
Optional(Used in thunderstorm places)
|
|
|
|||
|
LED display screen
|
Optional
|
|
|
|||
|
7 inch touch screen
|
Optional
|
|
|
|||
|
Surveillance cameras
|
Optional
|
|
|
|||
|
Solar power system
|
|
|
|
|||
|
Solar panels
|
Power can be customized
|
|
|
|||
|
Solar Controller
|
Can provide matched controller
|
|
|
|||
|
Mounting brackets
|
Can provide the matched bracket
|
|
|
|||
Detailed Images
Temperature, humidity, wind speed, wind direction, air pressure, rainfall (optical), PM2.5, PM10, light/solar radiation, noise data collection adopts 32-bit high-speed processing chip, high precision and reliable performance
Feature 2 :
MINI Size
High precise free maintenance wind speed and direction sensor
Feature 4: air temperature, humidity, pressure, PM2.5, PM10,noise
Simultaneous measurement of air temperature, humidity, pressure, PM2.5, PM10, noise
Feature 5:
Reserve an expandable interface
It can integrate the other weather sensors , soil sensors, water sensors and so on.
Feature 6:
Multiple wireless output methods
RS485 modbus protocol and can use the LORA/ LORAWAN/ GPRS/ 4G/WIFI wireless data transmission, and the LORA LORAWAN frequence can be custom made.
Feature 7:
Send free cloud server and software
The free cloud server and software can be send if using our wireless module to see the real time data in PC or Mobile and also can download the data in excel.
Air temperature and humidity: Swiss Sensirion digital temperature and humidity sensor.
This weather station intergrate the air temperature humidity pressure rainfall and also can intergrate the wind speed , wind direction,soil temperature, soil moisture,soil EC and so on.
Feature 10： Two ways install
Flange fixing
1. Compact weather station
2. Fixing screw ∅6 specifications
3. Communication cable + aviation plug
4. Fixed pole
3. Communication cable + aviation plug
4. Fixed pole
Sleeve fixing
1. Compact weather station
2. Fixing screw ∅6 specifications
3. Communication cable + aviation plug
4. Fixed pole
3. Communication cable + aviation plug
4. Fixed pole
Related Products
Packing&Shipping
Company Introduction
Honde Technology CO.,LTD founded in the year of 2011, adheres to the business philosophy of technology making our life better. Our company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart agriculture equipment and smart environmental equipment and the related solutions provider.The products sell well in more than 70 countries, serve thousands of customers around the world, and have received unanimous praise.
We are looking forward to working with you to make our life better due to the blessing of science and technology.
FAQ
Q: How can I get the quotation?
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.
Q: What's the main characteristics of this compact weather station?
A: It is
easy for installation and has r
obust & integrated structure, , 7/24 continuous monitoring.
Q:Can we choose other desired sensors?
A: Yes, we can supply the ODM and OEM service, the other required sensors can be integrated in our present weather station.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Do you supply tripod and solar panels?
A: Yes, we can supply the stand pole and the tripod and the other install accessories, also the solar panels, it is optional.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC: 12-24 V , RS 485. The other demand can be custom made.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Modbus communication protocol.We can also supply the matched LORA/LORAN WAN/GPRS/4G wireless transmission module.
Q: Can you supply free cloud server and software?
A: Yes, we can supply the free cloud server and software, which you can see the real time data and also download the history data in excel type.
Q: What’s the standard cable length?
A: Its standard length is 3 m. But it can be customized, MAX can be 1 Km.
Q: What's the lifetime of this weather station?
A: We use the ASA engineer material which is a
nti-ultraviolet radiation which can be used for 10 years outside.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be deliveried in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What industry can be applied to in addition to construction sites?
A:Urban roads,bridges,
smart street light,
smart city,industrial park and mines,
etc.
