Quick Details
-
Brand Name:
-
JINGTU
-
Model Number:
-
Aitex E
-
Product Name:
-

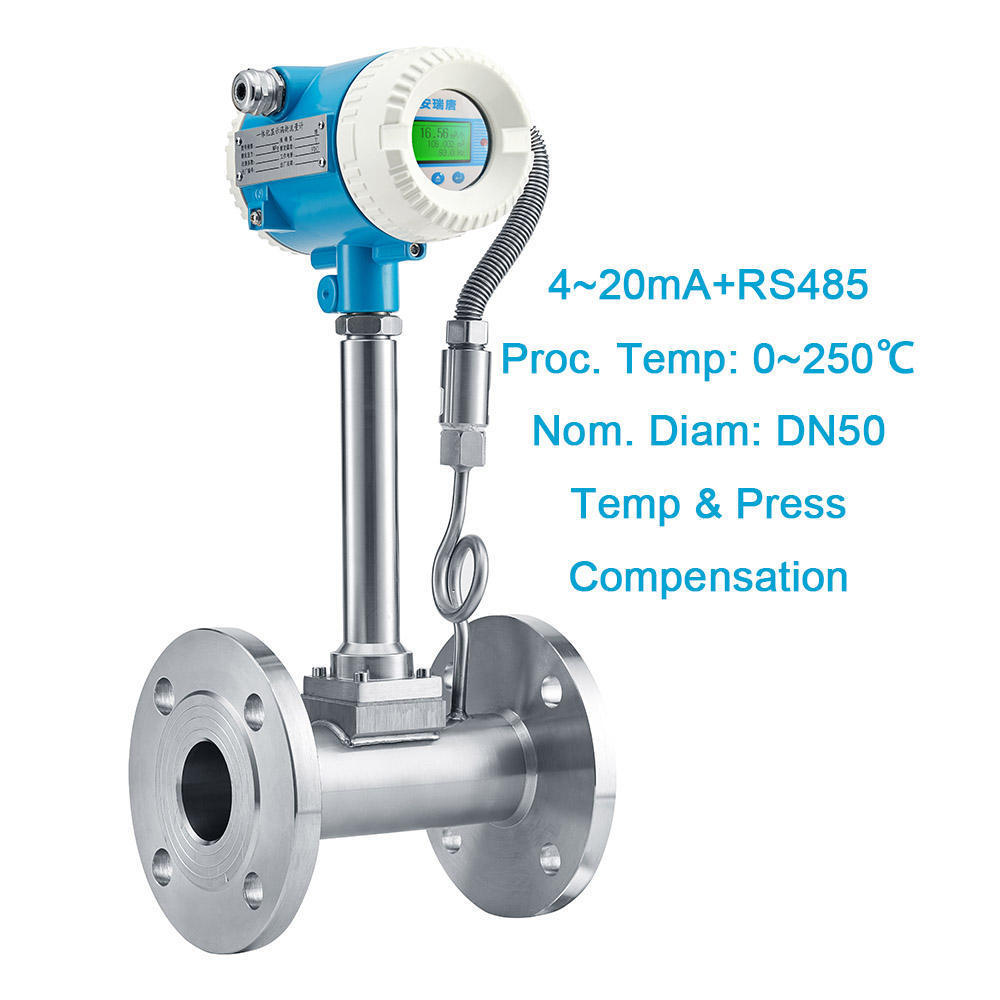

Vortex Flow Meter
-
Keywords:
-
Intelligent Vortex Flowmeter
-
Medium:
-
Steam, Gas, Air, Liquid
-
Application:
-
Power Industry
-
Connection:
-
Flange
-
Output Signal:
-
4~20mA
-
Diameter Nominal:
-
DN15 ~ DN400
-
Service:
-
Customized
-
Function:
-
Chemical Industry
-
Protection Class:
-
IP66/ IP67
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINGTU
-
Model Number:
-
Aitex E
-
Product Name:
-
Vortex Flow Meter
-
Keywords:
-
Intelligent Vortex Flowmeter
-
Medium:
-
Steam, Gas, Air, Liquid
-
Application:
-
Power Industry
-
Connection:
-
Flange
-
Output Signal:
-
4~20mA
-
Diameter Nominal:
-
DN15 ~ DN400
-
Service:
-
Customized
-
Function:
-
Chemical Industry
-
Protection Class:
-
IP66/ IP67
Products Description
|
Model Number
|
Aitex E
|
|
Application
|
Electric-Power, Chemical and Food Industry
|
|
Nominal Diameter
|
DN15~DN400
|
|
Nominal Pressure
|
PN40
|
|
Process Temperature
|
-40℃ ~ 260℃
|
|
Process Connection
|
Flange: GB, ANSI, DIN, JIS
|
|
Volume Flow Accuracy
|
Liquid: ± 0.75% / Steam & Gas: ± 1%
|
|
Mass Flow Accuracy
|
Liquid: ± 0.85% / Steam & Gas: ± 1.5%
|
|
Output Signal
|
4~20mA Frequency / Pulse / Switch Output
|
|
Communication
|
HART, Modbus RS485, PROFIBUS DP
|
|
Current Input
|
4~20mA
|
|
Protection Grade
|
IP66 / IP67
|
