Name: Feeding conveyor
Worker manual to put product on feeding conveyor, product will go through to film directly.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Material:
-
Stainless Steel
-
Packing Film Material:
-
OPP/CPP PT/PE KOP/CPP ALU-FOIL
-
Main Function:
-
Filling Sealing Packing
-
Bag type:
-
Pillow Bag
-
Sealing type:
-
Hot Sealing
-
Packing:
-
sea worthy wooden case
-
Weight:
-
600kg
-
Control:
-
PLC or Double Inverter
-
Shape of sealed bag:
-
Back sealing(central sealing )
-
Film width:
-
Max.250mm
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing
-
Packaging Type:
-
Bags, Film
-
Packaging Material:
-
Plastic, Paper
-
Place of Origin:
-
Guangdong, China
-
Material:
-
Stainless Steel
-
Packing Film Material:
-
OPP/CPP PT/PE KOP/CPP ALU-FOIL
-
Main Function:
-
Filling Sealing Packing
-
Bag type:
-
Pillow Bag
-
Sealing type:
-
Hot Sealing
-
Packing:
-
sea worthy wooden case
-
Weight:
-
600kg
-
Control:
-
PLC or Double Inverter
-
Shape of sealed bag:
-
Back sealing(central sealing )
-
Film width:
-
Max.250mm
Designation

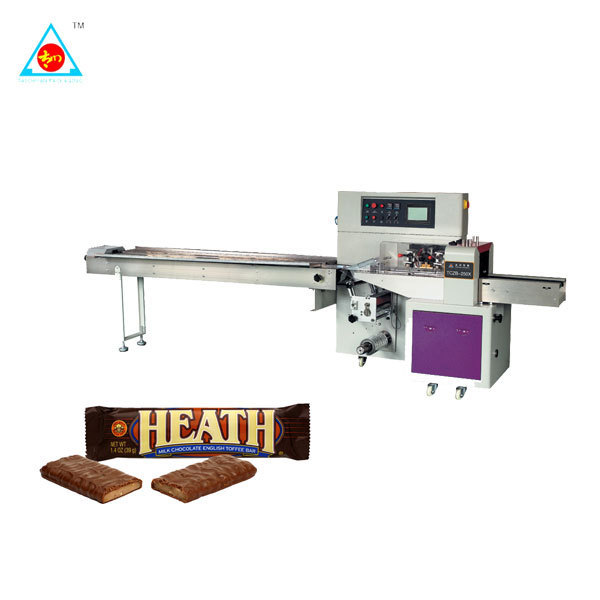

Pillow Type Horizontal Biscuit Packing Machine Cookies Chocolate Bar Pillow Packaging machine
Product Description
|
Model
|
TCZB-250
|
|
Film width
|
Max.250mm
|
|
Bag length
|
65-190mm/ 120-280mm/90-220mm/150-330mm
|
|
Bag width
|
25-42mm/ 55-75mm/ 55-110mm
|
|
products High
|
Max.55mm
|
|
Packing speed
|
40-230bag/mins
|
|
Power
|
220V 50/60HZ 2.4KW
|
|
Dimension
|
3770x670x1450
|
|
Machine Weight
|
600kg
|
Main Features:
1) Dual frequency conversion control,bag length can be set and cut in one step ,saving time and film.
2) High sensitivity photoelectric eye color tracing ,numerical input of cutting sealing position for estra accuracy.
3) Positioned stop function ,without sticking knife or wasting film.
4) Simple driving system,reliable working ,convenient maintenance.
5) All control is realized through software ,easy for function adjusting and technical upgrade .
Optional accessories:
1:Date Coder 2:Touchable Screen 3:Automatic Punching Device
4:Alternative sealing patterns and notch 5:Auto labeling device 6:Deoxidizer chute device
7:Gas flushing device
Product Application:
Can be applied to:food(snack bar,bread,cookies,ice lolly cake,chocolate,) Plastic(cutlery,tray,) hardware,Soap,sponge,tissue,card etc.
packaging various kinds of regular objects.
Package Sample:
Detailed Images
Machine Parts
Machine Parts
Name: B
ag make device
Articulated bag former strurcute and enble stable bag foming for perfect bag shape.
Machine Parts
Name:
Rotary end sealing device
The
cutters can do link bag, flat end seal, wave shape, euro whole or the round whole. For difference products
Machine Parts
Name:Temperature controller
Separate PID temperature controller suitable for various packing material .Easy to changing the temperature to suitable for aluminum film, paper film, PE film and cpmposite film.
Machine Parts
Name: Electric box
CPU intelligent single chip computer system for
efficlent running
