Quick Details
-
Place of Origin:
-
China
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
10000
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
China

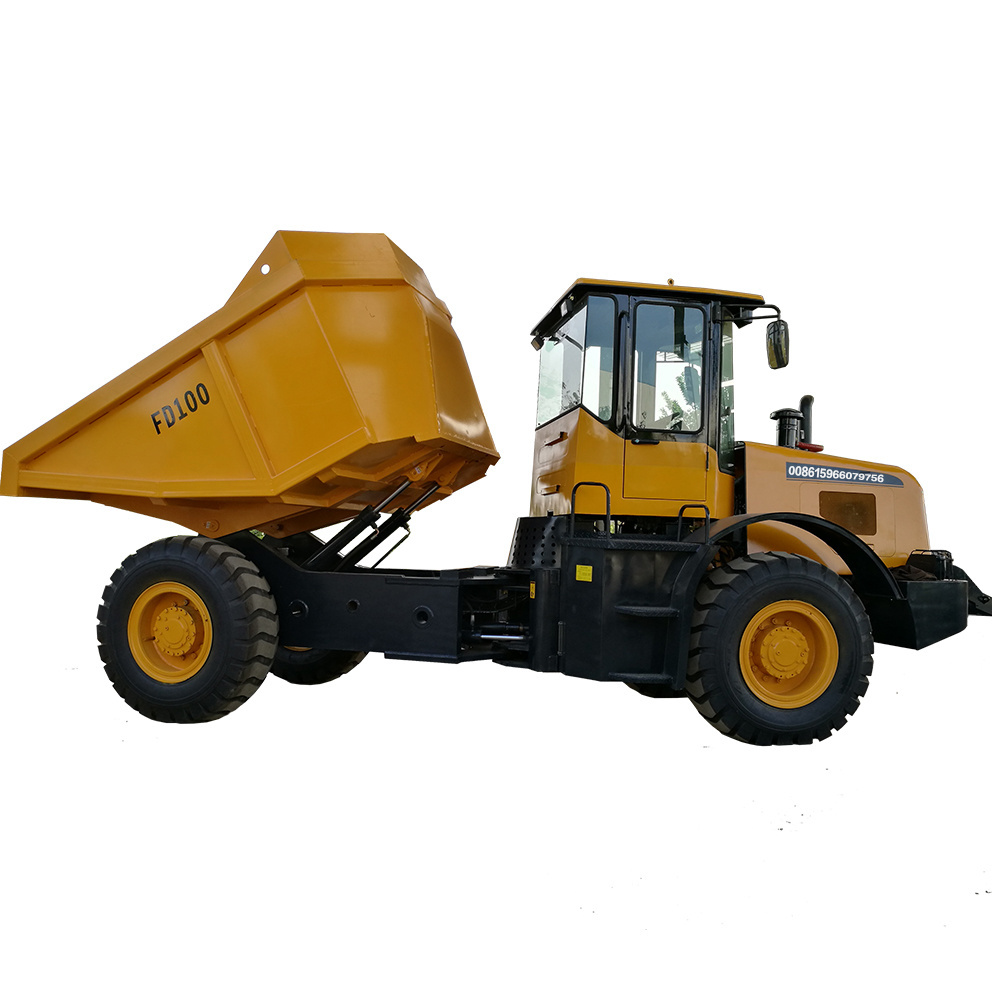

Articulated Frame with hydraulic power steering 4 wheel hydraulic-Air disc brake dumper truck
1) Deutz engine with 92kw,6 cylinders.With big torque output at low rotating speed
2) Gearbox with Hydraulic torque convertor transmission.CVT transmission have good quality,Easier operate and never flameout at rough terrain
3) Central articulated frame and load sensing hydraulic steering.Heavy duty rear chasiss
4) Four wheel drive,
5) Four wheel 4 wheel air disc brake and hand brake
6) Safe and Luxury Canopy/Cabin,adjustable and comfortable seat,adjustable steering wheel.Back-up camero
7 ) Famous brand Camel battery with Big AH
| Dimensions | Rear | slew bucket |
| Total weight | 9800kg | 10500kg |
| Load capacity | 10000kg | 10000kg |
| Axle load, front (laden) | 6320kg | 6680kg |
| Axle load, rear (laden) | 10620kg | 10740kg |
| A Track | 1860mm | 1860mm |
| B Total width: Std tyres | 2500mm | 2500mm |
| Total width: Opt. tyres | 2300mm | 2300mm |
| C Ground clearance | 400mm | 400mm |
| D Width, dump body | 2500mm | 2500mm |
| E Max height | 3000mm | 3000mm |
| F Loading height | ||
| G Max height for tipping | 4215mm | 4450mm |
| H Tipping clearance | 1050mm | 1200mm |
| I Overhang, rear | 1 | 920mm |
| J Wheelbase | 3880mm | 3880mm |
| K Overall length | 6820mm | 6820mm |
| L Approach angle, front | 27° | 27° |
| M Departure angle, rear | 73° | 27° |
| N Tipping angle | 75° | 67° |
| R Overhang, front | 1.82mm | 1.82mm |
| V Overhang when tipping | 500mm | |
| Capacity | 8.5m³ | 6m³ |
| Turning radius | 6.1m | 6.1m |
| Tipping time | 6sek | 6 sek |
