Control Distance : 30m -100m
Brightness Grade: 8 grades by automatic adjustment
- Product Details
- {{item.text}}
Quick Details
-
Color:
-
white / red / green
-
Panel Size:
-
custom, custom
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
GV
-
use:
-
outdoor
-
Pixel Pitch:
-
Other, Other
-
Specification:
-
other
-
Screen size:
-
Customized Size
-
Application::
-
gas station, score board/time/temperature
-
Life span::
-
100000hours
-
Function::
-
numbers display
-
power supply:
-
AC 110 V ~ 220 V , DC 5 V ~ 12 V
-
Frame::
-
Steel/aluminum/ACP
-
Installation::
-
Wall/ceiling mounting
-
Energy saving::
-
Illumination adjustable/sensor
-
Operation::
-
Remote control & computor
-
Keywords:
-
gas station price sign
Quick Details
-
Application:
-
Outdoor, LED Price Screen
-
Type:
-
LED
-
Brand Name:
-
Grandview
-
Color:
-
white / red / green
-
Panel Size:
-
custom, custom
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
GV
-
use:
-
outdoor
-
Pixel Pitch:
-
Other, Other
-
Specification:
-
other
-
Screen size:
-
Customized Size
-
Application::
-
gas station, score board/time/temperature
-
Life span::
-
100000hours
-
Function::
-
numbers display
-
power supply:
-
AC 110 V ~ 220 V , DC 5 V ~ 12 V
-
Frame::
-
Steel/aluminum/ACP
-
Installation::
-
Wall/ceiling mounting
-
Energy saving::
-
Illumination adjustable/sensor
-
Operation::
-
Remote control & computor
-
Keywords:
-
gas station price sign
Product Description
|
LED Chips parameter
|
|
|
|
|
|
|
|
|
||||||||
|
Color
|
Brightness
|
Wave Length
|
Current
|
Operating
Voltage |
Viewing angel
|
LED
Chips size |
Color
temperature |
Luminous flux
|
||||||||
|
RED
|
4000mcd
|
620-630
|
60MA
|
1.9-2.4V
|
60°/120°
/180° |
10*20Mil
|
620-630K
|
2LM
|
||||||||
|
GREEN
|
10000mcd
|
515-525
|
|
3.0-3.4V
|
|
|
515-525K
|
3LM
|
||||||||
|
BLUE
|
8000mcd
|
515-525
|
|
2.5-3.0V
|
|
|
460-470K
|
3LM
|
||||||||
|
YELLOW
|
3500mcd
|
585-590
|
|
1.9-2.2V
|
|
|
588-595K
|
1.5LM
|
||||||||
|
WHITE
|
12000mcd
|
0
|
|
3.0-3.4V
|
|
|
6000-7000K
|
5LM
|
||||||||
|
SERIES PARAMETERS
|
|
|
|
|
|
|
|
|||||||
|
Item
|
Technical Parameters
|
|
|
|
|
|
|
|||||||
|
Color:
|
Red, Amber, Green, Blue, White
|
|
|
|
|
|
|
|||||||
|
Digit Height:
|
6'', 8'', 10'', 12'', 15'', 18'', 20'', 22'', 24'', 32'', 64'', 72''
|
|
|
|
|
|
|
|||||||
|
Digit Design:
|
7 segments modules are sealed with glue,reach IP67 waterproof grade,with
dust shade that make leds work normally all the time. |
|
|
|
|
|
|
|||||||
|
Brightness Control:
|
Auto dimming by brightness sensor
|
|
|
|
|
|
|
|||||||
|
Display Dimming:
|
Over 8 levels of automatic intensity adjustment
|
|
|
|
|
|
|
|||||||
|
Viewing Angle:
|
Horizontal:60°-120°,Vertical: 60°-120° or customized
|
|
|
|
|
|
|
|||||||
|
Service Access:
|
Front or rear open
|
|
|
|
|
|
|
|||||||
|
Master/slave:
|
Single sided or double sided, master/slaves available
|
|
|
|
|
|
|
|||||||
|
Cabinet Material:
|
Iron cabinet or aluminum alloy frame
|
|
|
|
|
|
|
|||||||
|
Waterproof Level:
|
IP53 with aluminum alloy frame, IP65 with iron cabinet
|
|
|
|
|
|
|
|||||||
|
Led Driving Mode:
|
Constant current
|
|
|
|
|
|
|
|||||||
|
Power Input:
|
110/220V AC,50-60HZ
|
|
|
|
|
|
|
|||||||
|
PC Communication:
|
RS232/485;LAN(TCP/IP) with cables or wireless,customer can choose
|
|
|
|
|
|
|
|||||||
|
Communication Distance:
|
Max.15 meters for RS232, 1200 meters for RS485
|
|
|
|
|
|
|
|||||||
|
Remote Control Type:
|
RF remote control (Normal 6 buttons or LCD remote controller)
|
|
|
|
|
|
|
|||||||
|
Continuous Working Time:
|
Unlimited
|
|
|
|
|
|
|
|||||||
|
Lifetime of Leds:
|
>100,000 hours
|
|
|
|
|
|
|
|||||||
|
Installation Method:
|
Hanging,mounting or per custom design
|
|
|
|
|
|
|
|||||||
|
Working Temperature:
|
-40℃~75℃
|
|
|
|
|
|
|
|||||||
|
Display Format:
|
8.88, 8.888,8.888, 8.889/10, 88.88, 88.888 etc.
|
|
|
|
|
|
|
|||||||

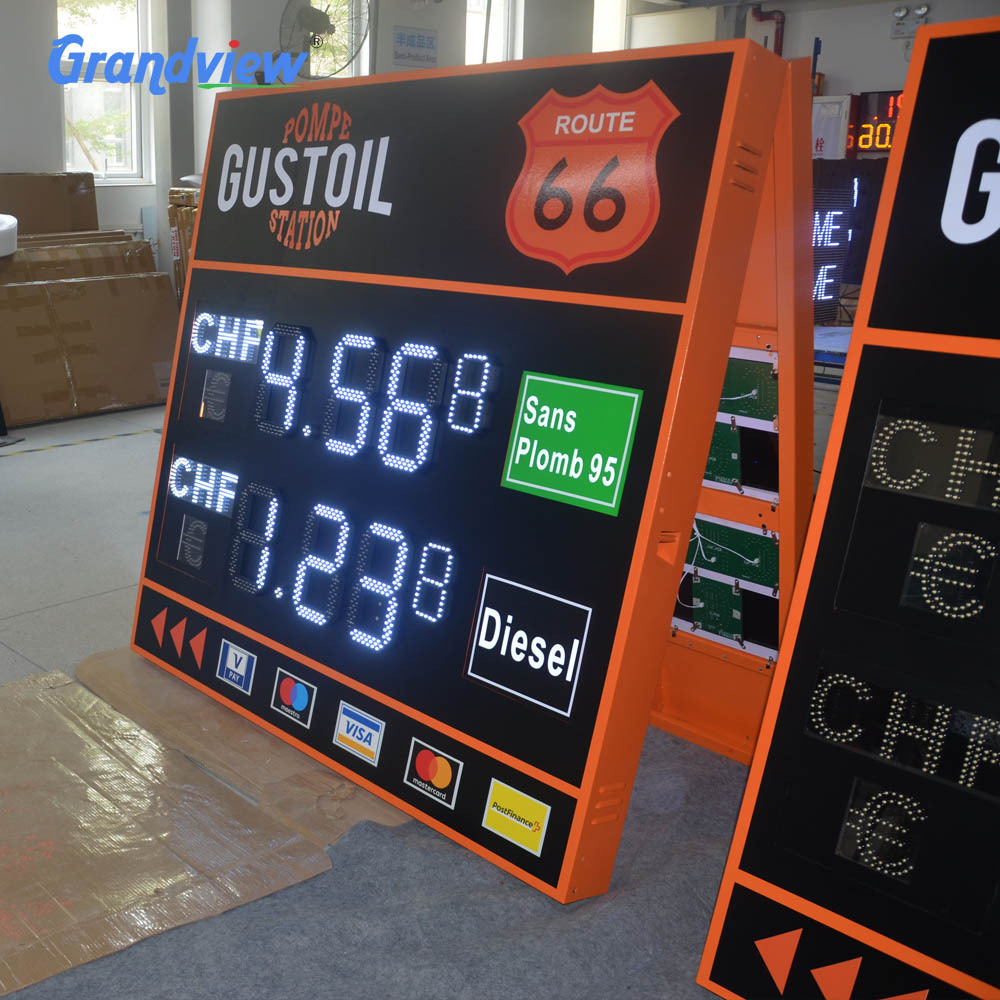

Detailed Images
Features：
*
led highlight number,easy catch people's eys on high way
* material of the cabinet can choose iron,aluminum ,simple box
*
IP 65 waterproof case
*
It can use as gas price sign, countdown, time, tempreture, scoreboard, speed limit and so on.
*
Easy to instal,which can assemble any formats you want. 8.8. , 8.8.8., 8.8.8.8. , 8.8.8.8.8. etc.
Control Way:
RF remote Control
Control Distance : 30m -100m
Brightness Grade: 8 grades by automatic adjustment
Control Distance : 30m -100m
Brightness Grade: 8 grades by automatic adjustment
Production line
Packing
Installation Instructions
Certifications
Our Company
FAQ
Question 1：Led digits sign can not work well, some led modules can not be lighting.
Answer :
A.Please check the connecting cables of drive card whether it is loose or not,and connect them again.
B.LED module is broken, please replace the new module to the led sign.
C.Please set the correct quantity of the numbers.For example: 88.88, 8.889/10 is 4 numbers.(Single sided or double sided are the same.)
D.Please check drive card’s 2pin ports,and connect to other 2pin ports or change led number.
Question 2：All the led digits are not lighting.Some led signs are controlled together, but only the sign which has control (main) card can work, the other signs can not work.
Answer :
A. Please use the multi-meter to check power supply whether it is on or off.
B. And please connect the power supply cables again.
C. Please check power supply whether it is 12V.
Question 3：Some led signs are controlled together, but only the sign which has control (main) card can work normally, the other signs can not work well.
Answer :
A. Please check the cables of control card and connect them again.
B. Please use the RF remote controller to set the numbers again.
C. Please check the connecting cable of control card and drive card.
D. Please check IN and OUT port. Please connect them again.
E. Please check control card’s signal light is on.
