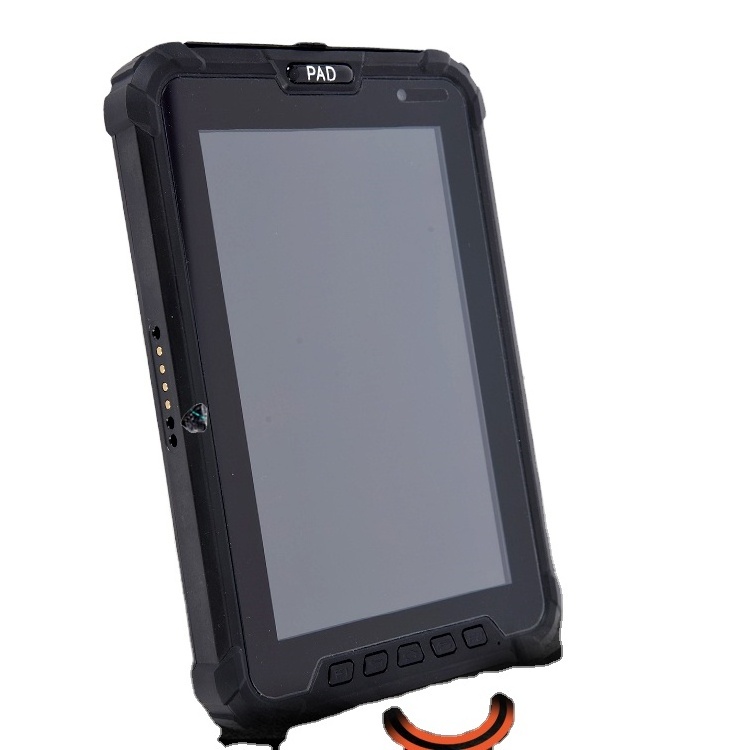

SENTER 8 Inch Handheld Rugeed Tablet Ip67 Waterproof NFC touch screen Android Industrial Rugged Tablet

SENTER 8 Inch Handheld Rugeed Tablet Ip67 Waterproof NFC touch screen Android Industrial Rugged Tablet

FOB Reference Price: Get Latest Price

≥1 Pieces

US $325

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Operating System:: Android 9.0

Type:: Tablet PC

Processor Main Frequency:: 2.0GHz

Weight:: 810g

Place of Origin:: Shandong, China

Brand Name:: SENTER

Model Number:: S917V10

Product name:: cheap 8 inch rugged tablet

Screen:: 8 inch Capacitive 10 point Touch

Battery:: 10000mAh battery, wide temperature

Barcode scanner:: 1D/2D Barcode Scanner Optional

RFID reader:: LF HF UHF OPTIONAL

GPS:: GPS BDS GLONASS

HDMI:: HDMI port

Certification:: CCC/CE/ROSH/FCC/IP67/MIL-STD-810

Application:: Industrial Automation Fields

Resolution:: 1920*1200 FHD IPS

Quick Details

Screen Size:: 8"

Memory Capacity:: ≥ 4GB

Display resolution:: 1920x1200

Operating System:: Android 9.0

Type:: Tablet PC

Processor Main Frequency:: 2.0GHz

Weight:: 810g

Place of Origin:: Shandong, China

Brand Name:: SENTER

Model Number:: S917V10

Product name:: cheap 8 inch rugged tablet

Screen:: 8 inch Capacitive 10 point Touch

Battery:: 10000mAh battery, wide temperature

Barcode scanner:: 1D/2D Barcode Scanner Optional

RFID reader:: LF HF UHF OPTIONAL

GPS:: GPS BDS GLONASS

HDMI:: HDMI port

Certification:: CCC/CE/ROSH/FCC/IP67/MIL-STD-810

Application:: Industrial Automation Fields

Resolution:: 1920*1200 FHD IPS

Product Description

SENTER 8 Inch Handheld Rugeed Tablet Ip67 Waterproof NFC touch screen Android Industrial Rugged Tablet

* Advanced system
Android 9.0 operating system; CPU MSM8953, 8 core, 2GHz CPU; RAM 4GB ROM 64GB, Micro SD 128G
* Visible under strong light
8 inch LCD screen 1920x1200 FHD IPS capacitive touch screen with 500 nits brightness
* Powerful function
Multi function1D/2D bar code scanning, LF/HF/UHF RFID reader, fingerprint identification
* Big Strong battery
10000mAh battery, wide temperature battery, support working on -25℃~60℃, can discharge 2.5-3h at - 20 ℃
* Multi communication modes
BT4.2 / WIFI /3G / 4G LTE / GPS

IP67 Waterproof Rugged Tablets 8 inch Android 9.0 10000mAh 4G Tablet SENTER S917V10

Vehicle mount Vehicle docking Installation

stand VESA Stand Cup mount Glass mount table mount dashboard mount

Product Usage

S917V10 tablets with LF HF UHF RFID is widely used in the following aspects:

1： Supply chain management. The rapid development of RFID technology has brought great development opportunities for the supply chain management of retail industry. As some international retail giants have issued mandatory use of RFID supply chain management technology, the competition between finished product supply chains has become the key to the success or failure of the future retail industry competition.

2： Warehouse inventory. With the introduction of RFID technology in the whole retail industry, the penetration rate of RFID technology in the retail industry is becoming higher and higher.

3： Asset management and inventory, equipment, fire equipment inspection, etc

HF RFID(Internal):

Support NFC/NXP,13.56MHZ ISO14443A,B and ISO15693 protocol, reading distance 0-3cm,Tag support type:SR176,SRIX4K（TYPE-B）
,I-Code2,TI RFID Tag-it HF-I,EM4034,Mifare Classic ETC

LF RFID(Internal)：

134.2KHZ LF RFID, support ISO11784/5 protocol, support to read IC card(FDX/HDX)

125KHZ LF RFID, support to read ID card

UHF RFID(Internal):
Ray links RLM060 or ThingMagic M6E-NANO,EPC C1 GEN2/ISO 18000-6C,output power 10dBm-30dBm
Reading distance: 1 m
Ceramic antenna: 0.3db(25*25*4mm)

1D Laser Scanner Index(Internal):

Honeywell N4313 or Zebra EM1350

Scanning speed: 104 times/second+12 times/second (two way scanning)

Scanning distance: 2.5cm-114.3cm

Scanning angle: 47±3°(default) /35±3°(reduced code)

2D Barcode Scanner Index(Internal):

Newlands EM3096
Honeywell N3680
Motorola SE4750
Honeywell N6603

Identification ability: 1D, 2D, OCR

Scanning angle: rotate 360°, incline±50°, deflection ±50°

Field of View: Horizontal 36°, vertical 23°

Depth of field: 4cm-23.5cm

Environmental luminance: 0~100,000 LUX

Fingerprint read module

Supports fingerprint entry, image collection, fingerprint recognition, fingerprint deletion etc.

Type: TCSIST

Sensor type: capacitive

Effective image size:12.8mm x 18.0mm
Image size: 256*360
Resolution:508 ppi (dpi)
contrast mode(1:1); search mode(1:N)
FIPS 201 compliant capability (TCS1)

High accuracy GPS

Standard host is common GPS accuracy is about 10 meters, the GPS module is put in on the mainboard.
High accuracy GPS, can add M8N OR M8P module.
For M8N module, accuracy about 3meter
For M8P module, accuarcy about 0.1Meter

24 Hours Online

E： amy@senter.com.cn
WhatsA/Mobile: +8615288955862
Skype: Amy Deng-SENTER
Wechat / QQ: 1547659969
W： http://en.senter.com.cn

Physical Parameters
Display Screen			8 inch LCD screen, 1920*1200 FHD IPS 500nits brightness standard, capacitive toch screen
Keyboard			Android menu, Homepage, Return, Volume, Barcode, ON/OFF, Reset
Camera			5 million pixels front camera, 13 million pixels rear camera with automatic focus and lighting function
Headset			3.5mm audio interface, has MIC and Single loudspeaker
LED indicator light			Support (Ordinary flicker, Call fast flicker, missed calls, charge indicator)
Flashlight Function			Support, can be used for emergency lighting
Googleplay store			Support
Acceleration sensors			support
Compass			Support
Graviry sensor			Support
Light and distance sensor			Support
Vibrating motor			Support
FM			Support
Rechargeable Lithium Battery			3.8V, 10000mAh temperature wide battery, Supporting working 2.5-3 hour on -20℃
Dimension			23215822mm
Weight			810g

Wireless Communication
BT			Support 4.2
GPS			GPS+ BDS+GLONASS Support high precise GPS (Ublox M8N/M8P module, accuracy is 0.5-3M)
3G/ 4G LTE			China/India: LTE FDD:B1/B3/B5/B5 LTE TDD:B34/B38/B39/B40/B41 WCDMA:B1/B8 TD-SCDMA:B34/B39 EVDO/CDMA:BC0 GSM:900/1800MHZ Europe/Africa: LTE FDD:B1/B3/B5/B7/B8/B20/B28 LTE TDD:B38/B40/B41 WCDMA:B1/B2/B5/B8 GSM:850/900/1800/1900MHZ America: LTE FDD:B2/B4/B5/B7/B8/B12/B13/B14/B25/B26 LTE TDD:B41 WCDMA:B1/B2/B4/B8 GSM:850/1900MHZ

USB Port	Type-C USB port; Support to connect U-disk/Mouse/Keyboard/OTG line
HDMI	HDMI port
OTG	Through OTG can meet 100M network port, network card setup, PPPoE dial-up, web browsing. Support OTG extend RS232 serial port/485 serial port/RJ45 Serial port
External Port	Charge port, headphone port
Industrial Protection Grade
Protection Grade	IP67
Drop Grade	Drop resistance from 1.2m

Environmental Characteristics
Working Temperature			-20℃ ~ +60℃
Storage Temperature			-40℃ ~ +70℃
Humidity			5%-95% relative humidity; no condensation
