Quick Details
-
Voltage:
-
380/50Hz,120V/60Hz
-
Dimension(L*W*H):
-
various
-
Weight:
-
41 KG
-
Power:
-
6500-30000W
-
Working Temperature Range:
-
various
Quick Details
-
Condition:
-
new
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
labfreez
-
Voltage:
-
380/50Hz,120V/60Hz
-
Dimension(L*W*H):
-
various
-
Weight:
-
41 KG
-
Power:
-
6500-30000W
-
Working Temperature Range:
-
various

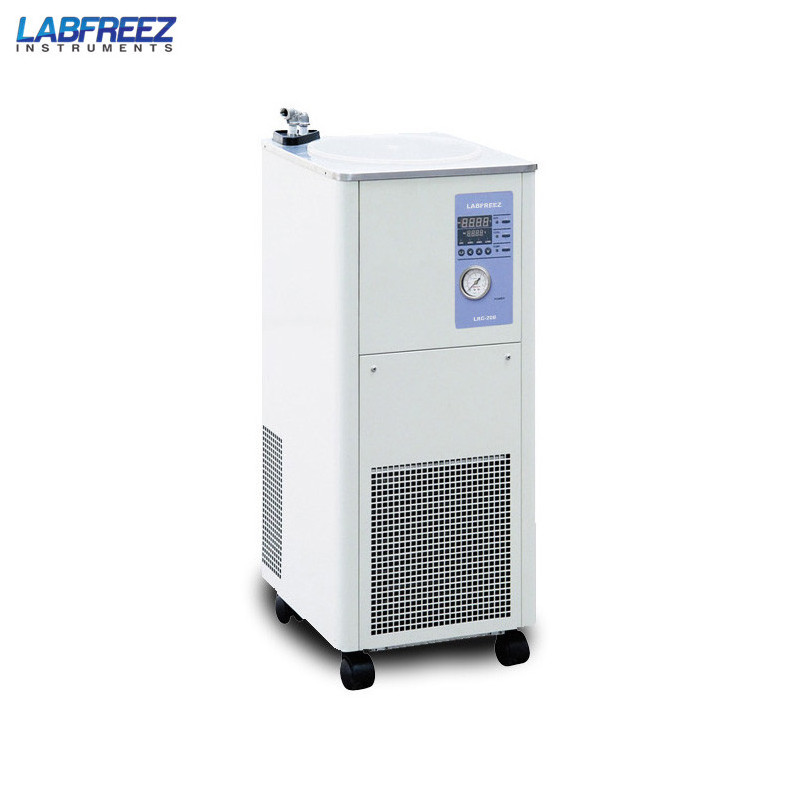

Adoption of low-temperature liquid circulation equipment of compression refrigeration methods can cool the tube, the reaction bottles directly and so on to have chemical reaction under low-temp and store chemical and biological products under low-temperature. Besides, it can also be combined with Rotary Evaporator, Vacuum Freeze-drying Box, and multi-purpose Circulating Water Vacuum Pump.
Features
Large-capacity open bath combined with outside loop can not only be used as freezing tanks, but also provide cooling fluid outside.
Digital setting and display of temperature, easy to operate.
Refrigeration compressors and other key parts adopt products with famous brands of the United States, Germany, and France and have high reliability and efficiency.
Circulating system adapts SUS 304, 316 and macromole anti corrosion substance, which can prevent rust, corrosion, and low temperature liquid pollution.
Specifications:
|
Model |
LLCP-5-10 |
LLCP-5-20 |
LLCP-10-20 |
|
|
Temp. Range(°C) |
-10~RT |
-20~RT |
||
|
Temp. Stability(°C) |
±1 |
|||
|
Cooling capacity (W) |
10°C |
1250 |
1150 |
1700 |
|
0°C |
970 |
880 |
1200 |
|
|
-10°C |
650 |
600 |
700 |
|
|
-20°C |
- |
320 |
370 |
|
|
Flow(L/min) |
12 |
|||
|
Lift(m) |
5~7 |
|||
|
Bath volume(L) |
5 |
5 |
10 |
|
|
Bath opening(mm) |
∅ 210×180 |
∅210×180 |
∅ 210×250 |
|
|
Ambient temp.(°C) |
5~25 |
|||
|
Power Supply(V/Hz) |
220/50 |
|||
|
Overall Power(W) |
600 |
600 |
1100 |
|
|
Case Material |
SPCC steel with powder coating |
|||
|
Dimensions(mm)L×W×H |
465×325×730 |
465×325×730 |
510×365×800 |
|
|
Weight(kg) |
41 |
41 |
50 |
|
|
Model |
LLCP-10-30 |
LLCP-20-30 |
LLCP-30-30 |
LLCP-50-30 |
LLCP-100-30 |
|
|
Temp. range(°C) |
-30~Room temp |
|||||
|
Temp. stability(°C) |
±1 |
|||||
|
Cooling
|
10°C |
1860 |
2550 |
3240 |
10000 |
17600 |
|
|
0°C |
1240 |
1750 |
2820 |
7500 |
12000 |
|
|
-10°C |
780 |
1070 |
1810 |
4600 |
7500 |
|
|
-20°C |
310 |
720 |
1030 |
2570 |
6500 |
|
|
-30°C |
50 |
300 |
520 |
1040 |
2900 |
|
Flow(L/min) |
12 |
12 |
12 |
30 |
67 |
|
|
Lift(m) |
5~7 |
5~7 |
5~7 |
10~12 |
22 |
|
|
Bath volume(L) |
10 |
20 |
30 |
50 |
100 |
|
|
Bath opening(mm) |
∅210×250 |
∅280×300 |
∅320×235 |
∅400×280 |
∅400×400 |
|
|
Ambient temp.(°C) |
5~25 |
|||||
|
Power Supply(V/Hz) |
220/50 |
380/50 |
||||
|
Overall Power(W) |
1100 |
1400 |
1800 |
2900 |
5300 |
|
|
Case Material |
SPCC steel with powder coating |
|||||
|
Dimensions(mm) |
510×365×800 |
575×495×965 |
665×545×1010 |
1080×675×1305 |
1210×740×1400 |
|
|
Weight(kg) |
50 |
90 |
100 |
300 |
400 |
|
|
Model |
LLCP-30-40 |
LLCP-50-40 |
|
|
Temperature range(°C) |
-40~Room temp |
||
|
Temperature stability(°C) |
±1 |
||
|
Cooling capacity (W) |
-10°C |
3670 |
7205 |
|
-20°C |
2310 |
4950 |
|
|
-30°C |
1100 |
2450 |
|
|
-40°C |
480 |
1500 |
|
|
Flow(L/min) |
12 |
30 |
|
|
Lift(m) |
5~7 |
||
|
Bath volume(L) |
30 |
50 |
|
|
Bath opening(mm) |
∅320×235 |
∅400×280 |
|
|
Ambient temperature(°C) |
5~25 |
||
|
Power Supply(V/Hz) |
380/50 |
||
|
Overall Power(W) |
2400 |
5200 |
|
|
Case Material |
SPCC steel with powder coating |
||
|
Dimensions(mm) |
665L×545W×1010H |
1055L×850W×1345H |
|
|
Weight(kg) |
100 |
150 |
|
|
Model |
LLCP-20-80 |
LLCP-50-80 |
LLCP-100-80 |
|
|
Temperature range(°C) |
-80~Room temp |
-80~Room temp |
-80~-40 |
|
|
Temperature stability(°C) |
±1 |
|||
|
Cooling capacity (W) |
-40°C |
510 |
1150 |
2400 |
|
-60°C |
210 |
760 |
1500 |
|
|
-80°C |
80 |
300 |
600 |
|
|
Flow(L/min) |
12 |
30 |
30 |
|
|
Lift(m) |
5~7 |
10~12 |
||
|
Bath volume(L) |
20 |
50 |
100 |
|
|
Bath opening(mm) |
∅280×300 |
∅400×235 |
∅400×400 |
|
|
Ambient temperature(°C) |
5~25 |
|||
|
Power Supply(V/Hz) |
220/50 |
380/50 |
||
|
Overall Power(W) |
2400 |
4800 |
9200 |
|
|
Case Material |
SPCC steel with powder coating |
|||
|
Dimensions(mm) |
905L×750W×1100H |
1010L×785W×1100H |
850L×1060W×1280H |
|
|
Weight(kg) |
150 |
350 |
400 |
|
