Quick Details
-
Dimension(L*W*H):
-
5760*2210*2580MM
-
Power:
-
78KW
-
Engine Capacity:
-
3850cc
-
Engine:
-
Yunnei/Yuchai/Cummins
-
Power type:
-
Diesel
-
Chassis:
-
Articulated Chassis
-
Drum mixing capacity:
-
1.6 CBM
-
Drum slewing angle:
-
0/270
-
Driving type:
-
4*4
-
Tire:
-
20.5-16
-
Hydraulic pump:
-
Dehong/Permco/Sunny
-
Feature:
-
Automatic Loading
-
Application:
-
road, housing, railway, airport, seaport
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Certification:
-
CE, CCC
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUZUN
-
Weight:
-
5500KGS
-
Dimension(L*W*H):
-
5760*2210*2580MM
-
Power:
-
78KW
-
Engine Capacity:
-
3850cc
-
Engine:
-
Yunnei/Yuchai/Cummins
-
Power type:
-
Diesel
-
Chassis:
-
Articulated Chassis
-
Drum mixing capacity:
-
1.6 CBM
-
Drum slewing angle:
-
0/270
-
Driving type:
-
4*4
-
Tire:
-
20.5-16
-
Hydraulic pump:
-
Dehong/Permco/Sunny
-
Feature:
-
Automatic Loading
-
Application:
-
road, housing, railway, airport, seaport
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Certification:
-
CE, CCC

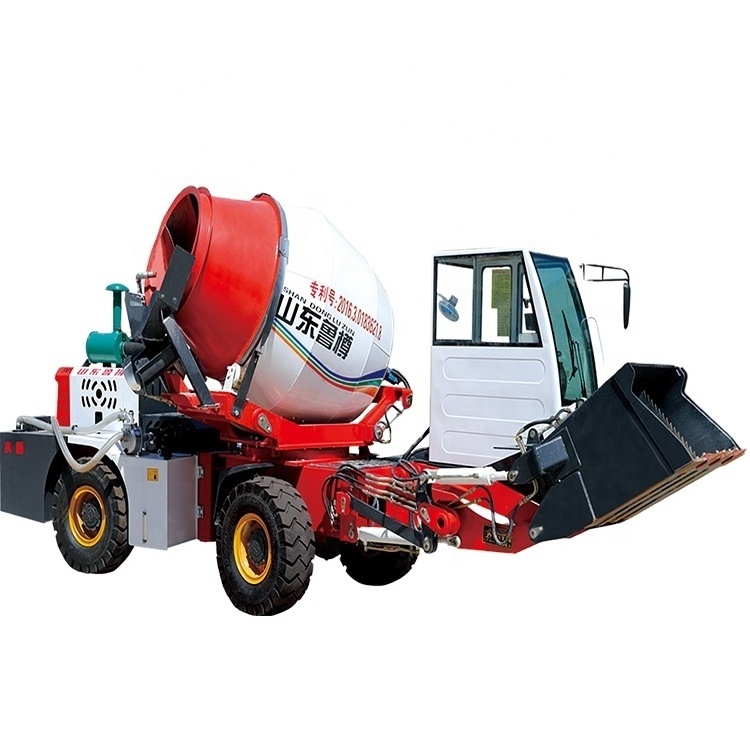

small volume factory sale self loading cement concrete mixer truck
As of May 2019, Luzun has been awarded national patents for its 24 innovations.
2. The mixing drum uses wear resistant alloy steel for longer service life.
3. Its patented obligatory double-spiral mixing screws ensures evenly mixing and complete unloading.
4. Together with the high accuracy electric weighting unit , it can supply various types of concrete for projects of roads, bridges, tunnels, houses, water tunnels, etc.
5. The compact design makes it flexible in narrow space and suitable for mountainous and country areas.
7. High efficiency. The truck only takes 12 minutes to finish one batch of concrete.
8. Convenient. The drum slews 270 degrees when unloading.
9. Low cost. The truck automatically fulfill loading, mixing and unloading, replacing the labor of
10. Easy operation . The extensive use of hydraulic system makes it easy to operate.
| Engine |
Yunnei/Yuchai/ Cummins |
| Rated Power | 78KW (75HP) |
| Type | 4-cylinders |
| Max Torque | 237nm/2000rpm |
| Chassis | articulated chassis |
| Driving type | 4*4 |
| Tyre | 20.5-16 |
| Hopper volume | 270L |
| Mixing volume | 1.6 cbm |
| Geometrical volume | 2.9 cbm |
| Concrete output | 1.6 cbm/batch, 6.4-8 cbm/hour |
| Drum rotating speed | 15rpm |
| Drum slewing angle | 0/180/270 |
| Water tank | 2*260L |
| Water pump | 24v self priming pump |
| Hydraulic gear pump | Dehong/Permco/Sunny |
| Gradient | 30% full loaded |
| Max speed | 23km/h |
| Size | 5650*2210*2580mm |
| Weight | 5500kg |
| Loading capacity | 3840kg |
| Cab | colsed, with warm/cool air conditioner |
| Fuel tank | 100L |
| Total hydraulic capacity | 100L |
| Engine oil | 16L |
>>>>>>>>>> GET A FREE QUOTE <<<<<<<<<<
There are two ways of shipping. For inland clients, we use truck shipping. For overseas clients, we ship in 40HQ containers. The self loading concrete mixers are dismantled and loaded into the container.
>>>>>>>>> GET A FREE QUOTE <<<<<<<<<<<
Luzun self loading mixer truck has the characteristics of narrow body, short wheelbase and small turning radius, thus it has strong advantages in the working environment of limited height, width and length. For projects with narrow construction roads, the machine can realize multi-angle unloading without moving on the ground, as its tank can be rotated by 270°. Therefore, it is very suitable for road construction.
It is used for the grouting pump equipment for the mixing of cement slurry, mortar and so on. It can be used in construction and maintenance of construction metallurgy, railway bridges, prestressing, etc. The mixer is small in size, light in weight, easy to install and move, simple to operate, easy to use, and trusted by users.
Q: What is your payment term?
A: Our payment term is T/T- 30% deposit, balance paid before delivery. Or 100% irrevocable L/C at sight.
Q: How soon can you deliver the mixer afther I place the order?
A: We keep fresh inventory. Most orders are delivered in less than 7 days.
If it is OEM, the order will be delivered in 15-20 days.
Q: Is your quality good?
A: We use advanced Italian technology and make improvement based on customer feedback. Till now our professional R&D team has launched 13th generation mixers and registered 24 national patents.
Besides, we successfully passed the quality certification of CCC and CE.
Q: Do you have warranty?
A: Yes, we offer one year warranty based on the confidence on our quality.
Q: Can I be your agent?
A: Sure. You are welcome to be our agent. We will provide necessary support to you.
Q: Can I get a discount?
A: We sell diretly from factory. The price is better than trading companies.
But still discount is available based on the order quantity.
Please feel free to let us know if you have any further questions.
