Quick Details
-
Brand Name:
-
BLS
-
Dimension(L*W*H):
-
Customerized
-
Weight:
-
200
-
Name:
-
Food container/Stainless steel storage tanks, perfume tank
-
Sanitary:
-
stainless steel 304/316
-
Application:
-
Stainless steel storage tanks, Stainless steel tank perfume tank
-
Function:
-
Food container/Stainless steel storage tanks
-
Usage:
-
Food container, Stainless steel tank perfume tank
-
Agitator:
-
blade, frame, scraper etc.
-
Speed:
-
avaible
-
Pressure:
-
normal/under pressure
-
Heating method:
-
electric/steam/gas
-
Type:
-
Stainless steel storage tanks, Stainless steel tank perfume tank
Quick Details
-
Capacity:
-
100-8000
-
Max Working Pressure(MPa):
-
0.3 MPa
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BLS
-
Dimension(L*W*H):
-
Customerized
-
Weight:
-
200
-
Name:
-
Food container/Stainless steel storage tanks, perfume tank
-
Sanitary:
-
stainless steel 304/316
-
Application:
-
Stainless steel storage tanks, Stainless steel tank perfume tank
-
Function:
-
Food container/Stainless steel storage tanks
-
Usage:
-
Food container, Stainless steel tank perfume tank
-
Agitator:
-
blade, frame, scraper etc.
-
Speed:
-
avaible
-
Pressure:
-
normal/under pressure
-
Heating method:
-
electric/steam/gas
-
Type:
-
Stainless steel storage tanks, Stainless steel tank perfume tank
Details Images

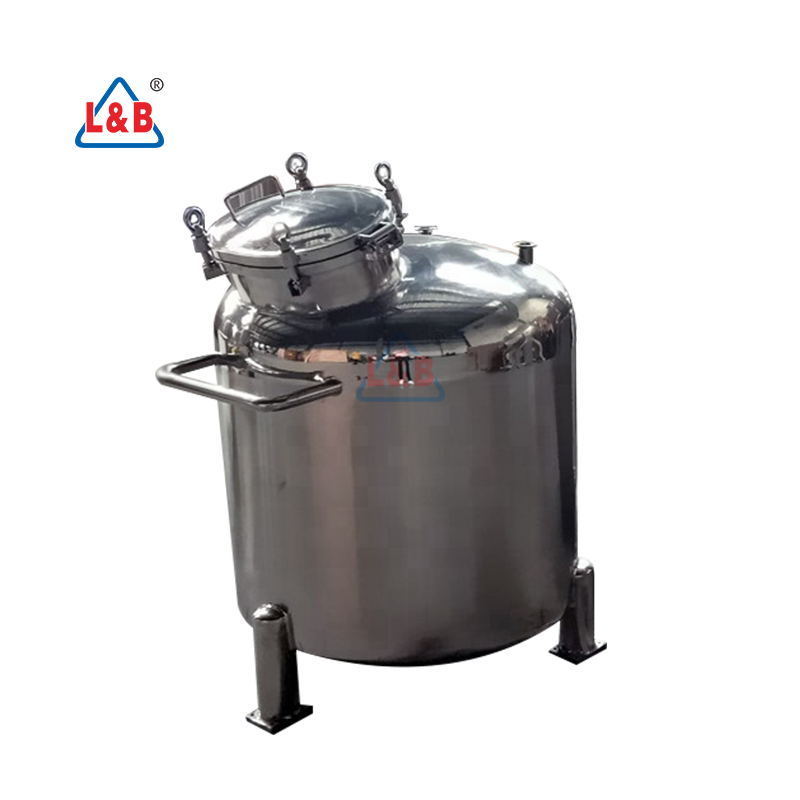

Introduction of stainless steel tanks
Stainless steel storage tank is mainly used for dairy and sugar and other elements and a variety of material liquids after mixing uniform storage, is dairy, beverage manufacturers indispensable equipment. Stainless steel tanks are made of stainless steel 304 or 316L, with a beautiful, corrosion resistance, health without dead ends, etc.
Classification of stainless steel tanks
Stainless steel tank is a non-standard customized tank, in order to adapt to different customers of the production process, are generally customized according to customer requirements. Stainless steel tank series are generally divided into: vertical storage tank, pressure tank, horizontal storage tank, mobile storage tank.
Stainless steel vertical storage tank
Vertical tank inside and outside polished, there are two lines openable cylinder head for cleaning, the bottom of the tank is taper or shell type, the outlet is easy to discharge, vertical tank can be connected in the pipeline to facilitate continuous into a variety of ingredients.
Stainless steel pressure tank
The pressure tank can be tolerated with a higher pressure than a conventional tank. The pressure tank is also a kind of stainless steel tank, which has a vertical tank and a horizontal tank. To customize the tank design the pressure is need.
Stainless steel horizontal tank
Horizontal storage tanks have similar function with vertical storage tanks. Horizontal storage tank have large area and better stable performance, is suitable for outdoor and other natural factors for the more harsh sites.
Stainless steel mobile tank
Mobile tank, also known as mobile turnover barrel, is a set of mixing, storage, mobile and other functions of the tank, can do storage tank, mixing tank, temporary storage tank, deployment tank use. Mobile tank are resistance to pressure, corrosion resistance, easy operation, high efficiency, easy cleaning, etc. It is a mobile storage equipment which can transfer liquid to remote . It can avoid secondary contamination of the tank material during storage and transportation.
stainless steel heating melter
Melter tank, heated by electric, steam or gas.
1) electric heating: heating of the liquid indirect through heat transfer of a water bath;
2) steam heating: pour hot steam into jacket, then heat energy to heat the material in the tank;
3) gas heating: single layer direct heating material in the tank or indirect heating with jacket and isolation layer.
Outer insulation layer with polyurethane foam casting; insulation thickness 50-60mm; cylindrical cylinder, with or without universal push wheel.
customized stainless steel conical bottom tank for easy discharging
All high-quality SUS304 or SUS316L stainless steel, top easy open flat cover or pressure shell cover with manhole etc. Without stirring or with stirring, Without heating or with heating,
Customized square rain water tank
Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP, with polished or with out.
four supporting feet with or withgout wheels; top quick Open flat cover with locks or manhole cover; discharge port on flat or inclined bottom side, bottom discharge port could be customized, too.
Product Description
|
Configuration of tank:
|
|
|
|
|
Quick open manhole.
Various types of CIP cleaners.
Fly and insect resistant sanitary breathing cover.
Adjustable triangular bracket.
Dismountable materials input pipe assembly.
Thermometer (As your requirements).
Ladder (As your requirements).
Liquid
level meter and level controller can be choosed Eddy-proof board Remark: It can be made as per customer's requirement |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Effective volume (L）
|
Dimension of tank (mm*mm)
|
Total height (mm)
|
Heat preservation layer (mm)
|
Diameter of inlet＆outlet (mm)
|
|
500
|
840*1000
|
2750
|
60
|
38
|
|
600
|
920*1000
|
2850
|
60
|
38
|
|
700
|
990*1000
|
2850
|
60
|
38
|
|
800
|
950*1220
|
3000
|
60
|
38
|
|
900
|
1010*1220
|
3000
|
60
|
38
|
|
1000
|
1060*1220
|
3150
|
60
|
51
|
|
1500
|
1160*1500
|
3350
|
60
|
51
|
|
2000
|
1340*1500
|
3410
|
60
|
51
|
|
3000
|
1410*2000
|
4000
|
60
|
51
|
|
4000
|
1620*2000
|
4250
|
60
|
51
|
|
5000
|
1810*2000
|
4300
|
60
|
51
|
|
6000
|
1980*2000
|
4550
|
60
|
51
|
|
7000
|
1930*2440
|
5000
|
60
|
51
|
|
8000
|
2060*2440
|
5000
|
60
|
51
|
|
9000
|
2180*2440
|
5050
|
60
|
51
|
|
10000
|
2300*2440
|
5050
|
60
|
51
|
|
12000
|
2270*3000
|
5600
|
60
|
51
|
|
15000
|
2530*3000
|
5700
|
60
|
51
|
|
20000
|
2640*3660
|
6400
|
60
|
51
|
