Quick Details
-
Lift Speed:
-
8 M/MIN, 7M/MIN
-
Marketing Type:
-
Hot Product 2024
-
Weight (KG):
-
590 kg
-
Product name:
-
Metallurgy Electric Hoist
-
Capacity:
-
1-10 Ton
-
Color:
-
Customised
-
Working Temperature:
-
-20℃~60℃
-
Application:
-
Lifting Molten Metal
-
Power Supply:
-
220V/380V 50HZ
-
Working System:
-
FC=50%
-
Certification:
-
CE ISO
-
Control Method:
-
Pendant +Remote(Customized)
-
Operated:
-
Safety and Convenience
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nucleon
-
Lift Speed:
-
8 M/MIN, 7M/MIN
-
Marketing Type:
-
Hot Product 2024
-
Weight (KG):
-
590 kg
-
Product name:
-
Metallurgy Electric Hoist
-
Capacity:
-
1-10 Ton
-
Color:
-
Customised
-
Working Temperature:
-
-20℃~60℃
-
Application:
-
Lifting Molten Metal
-
Power Supply:
-
220V/380V 50HZ
-
Working System:
-
FC=50%
-
Certification:
-
CE ISO
-
Control Method:
-
Pendant +Remote(Customized)
-
Operated:
-
Safety and Convenience
Product Specification

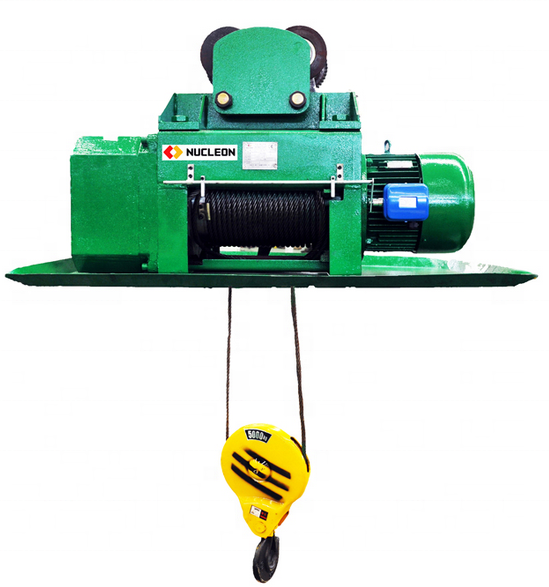

Wire Rope Hoist
Model CD1,MD1 Wirerope Electric Hoist is a small-sized lifting equipment, which can be mounted on singlebeam, bridge,gantry and arm cranes. With slight modification, it can also be used as a winch. It is widely used in factories, mines, harbours,warehouses, cargo storage areas and shops, es sential in raising working efficiency and improving working conditions.
Model CD1 Electric Hoist has only one normal speed, which can satisfy normal application. Model MD1 Electric Hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box,maintenance of machine tools, etc. Thus, model MD1 Electric Hoist is more widely than Model CD1.
To meet the needs of lifting heavier cargo,our factory also manufactures HC type large tonnage electric hoist.
To meet the needs of lifting heavier cargo,our factory also manufactures HC type large tonnage electric hoist.
Product Paramenters
|
Weight(Ton)
|
0.25-5
|
10
|
16
|
20
|
|||
|
Height(M)
|
6-30
|
9-30
|
9-18
|
9-18
|
|||
|
Speed(M/Min)
|
8(0.8/8)
|
7(0.7/7)
|
3.5(0.35/3.5)
|
4
|
|||
|
Rope Dia(MM)
|
3.6-15
|
15
|
17.5
|
19.5
|
|||
|
Working System
|
Intermediate FC=25%
|
|
|
|
|||
|
Power Source
|
Three-phase AC 380V 50HZ
|
|
|
|
|||
