Quick Details
-
Input:
-
HDMI & Audio
-
Output:
-
RJ45 Ethernet & HDMI
-
Video encoding:
-
H.264/H.265
-
Audio encoding:
-
AAC G711
-
Maximum Resolution:
-
2ch 4K@30Hz, 2ch 1080P@30Hz
-
Protocol:
-
SRT/HTTP/RTSP/RTMP/RTMPS/Multicast/UDP/RTP
-
Size:
-
166*130*28mm
-
Weight:
-
0.3kg
-
Power:
-
DC12V/1A
-
Application:
-
Live Streaming(Youtube/facebook/wowaz)
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Orivision
-
Model Number:
-
ZY-EH1301
-
Input:
-
HDMI & Audio
-
Output:
-
RJ45 Ethernet & HDMI
-
Video encoding:
-
H.264/H.265
-
Audio encoding:
-
AAC G711
-
Maximum Resolution:
-
2ch 4K@30Hz, 2ch 1080P@30Hz
-
Protocol:
-
SRT/HTTP/RTSP/RTMP/RTMPS/Multicast/UDP/RTP
-
Size:
-
166*130*28mm
-
Weight:
-
0.3kg
-
Power:
-
DC12V/1A
-
Application:
-
Live Streaming(Youtube/facebook/wowaz)
|
Name
|

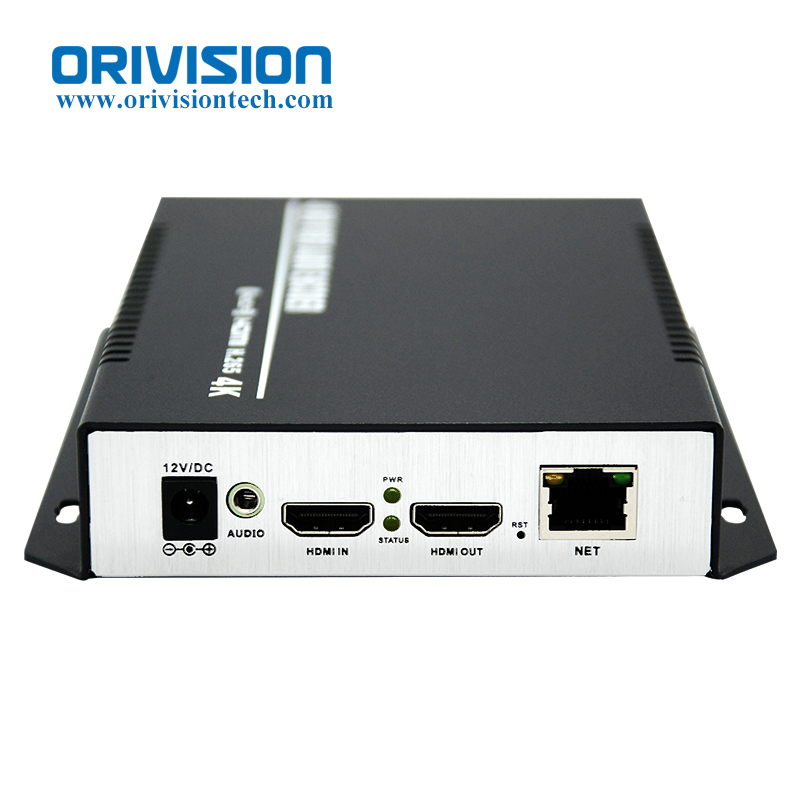

H.265 4K@30 HDMI Video Encoder/EH1301
|
|
Video
|
|
|
Input interface
|
1×HDMI 1.4
|
|
Support resolution
|
3840*2160,2560*1600,2560*1440,2048*1536,2048*1080,1680*12 00 1600*900,1440*1050,1440*900,1360*768,1280*720,1280*800,
1280*768,1024*768,1024*576,960*540,850*480,800*600,720*576, 720*540,720*480,720*404,720*576,640*480,640*360,480*270, Auto |
|
Frame rate
|
≤ 60hz
|
|
HDCP
|
HDCP 1.4
|
|
Output interface
|
1×Ethernet port (RJ45), 1×HDMI 1.4 Loop-out
|
|
Video encoding
|
H.265&H.264/MJPEG
|
|
Max bitrate
|
16kbps- 20Mbps
|
|
Rate control
|
CBR/VBR
|
|
Audio
|
|
|
Input interface
|
1×External audio, HDMI built-in Audio
|
|
Audio encoding
|
ACC, MP3, G711
|
|
Audio Encoder type
|
AACLC, EAAC, EAACPLUS, MP2, AC3
|
|
Bit-rate Option
|
48K,64K,96K,128K,160K,192K,256K
|
|
Sampling Accuracy
|
24 Bit
|
|
Output Interface
|
64Kb/s to 384Kb/s
|
|
Network
|
|
|
RJ45
|
1000M Ethernet port
|
|
Program streaming
|
HTTP, RTSP, RTMP/RTMPS, SRT, GB28181, HLS, FLV, ONVIF, Multicast: UDP/RTP
|
|
Control Panel
|
Web panel (Language is English), remote upgrade
|
|
Firmware Update
|
Enable by uploading files to the dashboard
|
|
General
|
|
|
Dimension(W*L*H)
|
167*132*28mm
|
|
Gross Weight
|
0.3kg
|
|
Temperature
|
0 ~ 45℃（for working）,-20~60℃（for storing)
|
|
Humidity
|
<90%, non-condensing
|
|
Input Voltage
|
DC 12V/1A
|
|
Power Consumption
|
5W
|
Q1. What is your terms of packing?
A: Generally, we pack our goods in carton boxes . If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T , Paypal
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 3~7 days after receiving your payment. The specific delivery time depends on the items and the quantity of your order.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
