Quick Details
-
Power:
-
1.2-3.6W
-
Warranty:
-
12 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
BAT907-T1
-
Detection Distance:
-
5M
-
Working Temperature (Deg.C):
-
40 C~+85
-
Sensor Number:
-
4-16pcs is optional
-
Application:
-
Truck,Bus,Heavy duty vehicles
-
Shockproof:
-
Yes
-
Monitor Size:
-
7.0 inch
-
Alarm Type:
-
Warning Alarm
-
Sensor Type:
-
Ultrasonic Rubber Sensor
-
Sensor Size:
-
25mm rubber sensor
-
Certification:
-
CE,FCC,ROHS,IATF16949
Quick Details
-
Car Fitment:
-
Volvo Heavy Duty, DAF - Europe Heavy Duty
-
View Angle:
-
180°
-
Function:
-
Waterproof, with GPS, with audible and visual alerts
-
Power:
-
1.2-3.6W
-
Warranty:
-
12 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
BAT907-T1
-
Detection Distance:
-
5M
-
Working Temperature (Deg.C):
-
40 C~+85
-
Sensor Number:
-
4-16pcs is optional
-
Application:
-
Truck,Bus,Heavy duty vehicles
-
Shockproof:
-
Yes
-
Monitor Size:
-
7.0 inch
-
Alarm Type:
-
Warning Alarm
-
Sensor Type:
-
Ultrasonic Rubber Sensor
-
Sensor Size:
-
25mm rubber sensor
-
Certification:
-
CE,FCC,ROHS,IATF16949
Features:

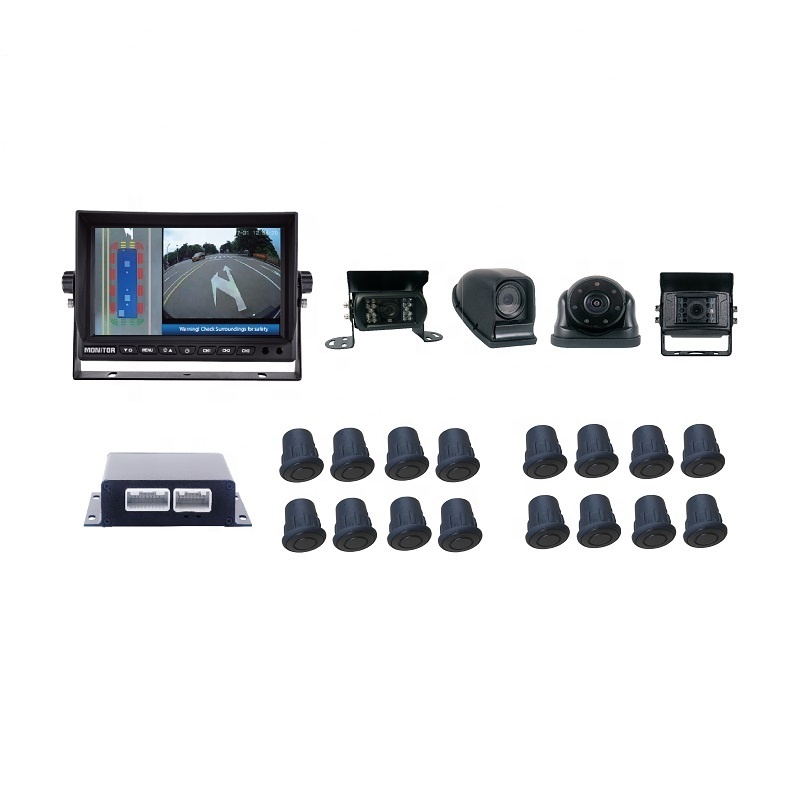

Commercial Vehicles are so big and suffer from poor visiblility, driver can not see many important area, thereby the 360 degree sensor kits system360 around view system can provide assistance for driver.
1. The sensor detection system maximum support 16pcs sensors, how many sensor of which direction around the vehicle can be customised according your requirements.
2. Giving drivers audible and visual alerts, warning the driver of nearby cyclists, pedestrians and other vulnerable road users, especially in vehicle blind spots.
3. Provides drivers the best all around solution for visibility while manoeuvring the vehicle.
4.It can be use as individually or integrated with 360 around view system with overlaid show the object location.
Technical specifacation:
| Operating voltage | 12-36V |
| Rated current | <500mA |
| Display size | 5.8-9 inch |
| Disp;ay resolution | 1.0 mega pixel |
| Furthest detecting distance | 5M |
| Nearest display distance | 0.4M |
| Detection reaction time | <200ms |
| Working temperature | -40-+80degree |
Suitable various vehicles:
