Quick Details
-
Weight (KG):
-
1100
-
Product name:
-
Dk77 Series High Speed Cnc Wire Cutting Wirecut Wire EDM Machines
-
Key word:
-
Electroerosion EDM
-
Application:
-
Metallic Cutting
-
recision:
-
0.02mm
-
Worktable travel:
-
400X320mm
-
Controlling Mode:
-
CNC Control
-
Color:
-
Optional
-
Wire diameter:
-
0.10-0.20
-
Power (kW):
-
1.5
Quick Details
-
Place of Origin:
-
Henan, China
-
Voltage:
-
380V or customized
-
Dimension(L*W*H):
-
1400*1100*1600mm, 1400*1100*1600
-
Weight (KG):
-
1100
-
Product name:
-
Dk77 Series High Speed Cnc Wire Cutting Wirecut Wire EDM Machines
-
Key word:
-
Electroerosion EDM
-
Application:
-
Metallic Cutting
-
recision:
-
0.02mm
-
Worktable travel:
-
400X320mm
-
Controlling Mode:
-
CNC Control
-
Color:
-
Optional
-
Wire diameter:
-
0.10-0.20
-
Power (kW):
-
1.5
Good feedback from our customer with taking photos as below
High quality, best after service, good experience, value for longer cooperation. Customer is first is our mission.
Products Description

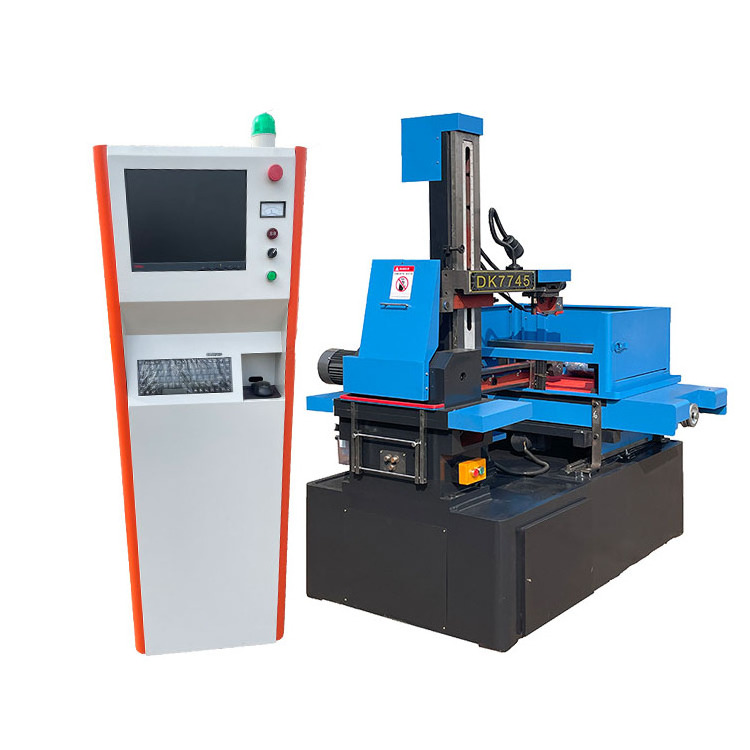

Product main features and uses
We produce whole series of DK77 CNC edm wire cutting machines,which adopts high precision V-shaped guide rail(Linear guide rail optional) and P3-grade high precison ball screw. The products have high quality, complete models, long service life and high precision. Machine specifications can be customized according to customer needs,like non-standard models
DK7735
DK7740(45)F,DK7750(55)F,DK7763F,DK7780F,DK77100F,DK77120F or even larger models. The company also produces ±30°, ±45° swing large taper machines and CNC high-precision middle speed edm wire cutting
machines(Precision≤±0.005mm,roughness≤1.0μm).
The following are the main parameters of DK77 series machines:
1.Standard maximum cutting taper:±6°/80mm;(±15°,±30°,±45° are optional)
2.Precision ≤ 0.02mm,according to GB7926-2005 standard;(If linear guide equipped, the precision can reach 0.01mm)
3.Best surface roughness ≤ Ra2.5μm(single-cut),Ra1.5μm(multi-cut);
4.Molybdenum wire diameter:0.1-0.2mm;
5.Max. cutting speed≥120mm^2/min;
6.Voltage:3 phase 380V(single phase 220V,3 phase 220V or other voltage can be customized),Power:1.5KW;7.Working fluid:Water-based emulsion.
2.Precision ≤ 0.02mm,according to GB7926-2005 standard;(If linear guide equipped, the precision can reach 0.01mm)
3.Best surface roughness ≤ Ra2.5μm(single-cut),Ra1.5μm(multi-cut);
4.Molybdenum wire diameter:0.1-0.2mm;
5.Max. cutting speed≥120mm^2/min;
6.Voltage:3 phase 380V(single phase 220V,3 phase 220V or other voltage can be customized),Power:1.5KW;7.Working fluid:Water-based emulsion.
Specification
|
Model
|
Worktable travel(mm)
|
Worktable size(mm)
|
Max. cutting thickness(mm)
|
Max. load(kg)
|
Dimensions(mm)
|
Weight(kg)
|
|
DK7720
|
200*250
|
420*270
|
200
|
100
|
1250*950*1250
|
800
|
|
DK7725
|
250*320
|
520*340
|
300
|
200
|
1450*900*1500
|
1000
|
|
DK7735(32)
|
350(320)*450(400)
|
710*460
|
400
|
300
|
1400*1100*1600
|
1100
|
|
DK7745(40)
|
450(400)*550(500)
|
810*570
|
400
|
500
|
1600*1200*1600
|
1400
|
|
DK7745F(40F)
|
450(400)*630
|
950*600
|
400/600
|
600
|
1600*1580*1600
|
1600
|
|
DK7755(50)
|
550(500)*650(630)
|
950*650
|
700
|
700
|
2000*1500*1900
|
1800
|
|
DK7755F(50F)
|
550(500)*800
|
1140*650
|
700
|
700
|
2000*1650*1900
|
2000
|
|
DK7763
|
630*800
|
1140*750
|
700
|
1000
|
2100*1700*2050
|
2400
|
|
DK7763F
|
630*1000
|
1350*750
|
700
|
1200
|
2250*1850*2050
|
2800
|
|
DK7780
|
800*1000
|
1350*980
|
900
|
2000
|
2400*1900*2350
|
4000
|
|
DK7780F
|
800*1200
|
1600*1050
|
900
|
2400
|
2550*1950*2400
|
4500
|
|
DK77100
|
1000*1200
|
1600*1100
|
1000
|
2600
|
2850*2500*2500
|
5200
|
|
DK77100F
|
1000*1400
|
1800*1250
|
1000
|
2800
|
2950*2050*2500
|
5800
|
|
DK77120
|
1200*1400
|
1800*1350
|
1000
|
3000
|
3050*2750*2500
|
7500
|
|
DK77120F
|
1200*1600
|
2000*1500
|
1000
|
3500
|
3100*2850*2500
|
8400
|
|
DK77160
|
1600*1800
|
2000*1700
|
1000
|
4000
|
3250*3000*2500
|
10000
|
