Quick Details
Quick Details
-
Brand Name:
-
BJDZ
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
SA-FM-FF

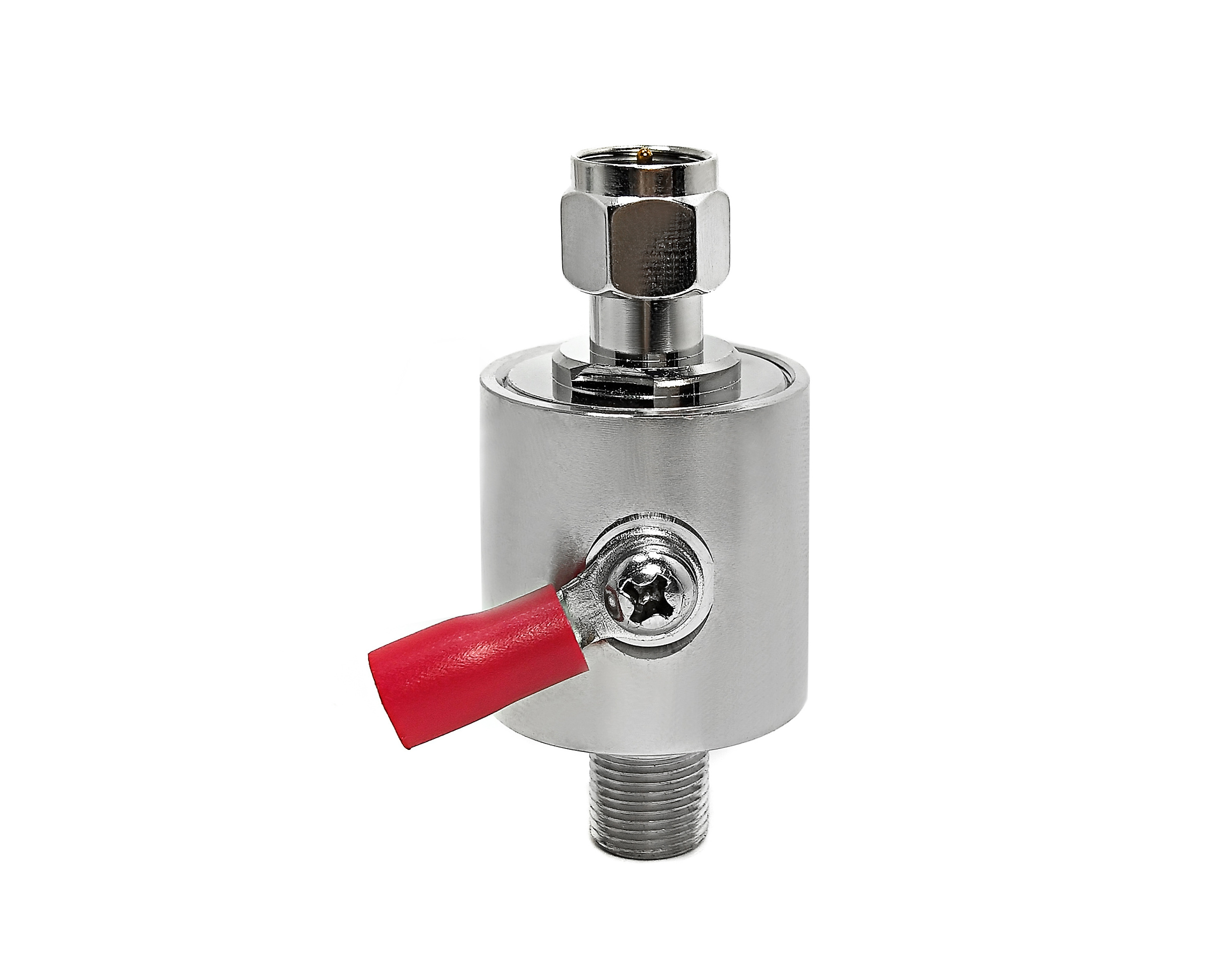

Factory wholesale price surge arrester F type male pin to female jack gas discharge tube lightning protection 0-3GHz
★
We have been making RF connectors since 1991.
★
Our custom RF cable connectors are manufacture direct and skillful manufactured.
★
RF cable connectors in 50 ohms can be the following types such as EIA, 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .
★
RF cable connectors can be connected on the coaxial cable includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58U/1/2 / 7/8 / LMR195/ LMR240/LMR400,ect
★
RF cable connectors can be produced to cable assemblies with many different cable types and custom lengths depending on your needs and applications.
★
If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
Waterproof Surge Arrester N Female Bulkhead To SMA Female Lightning Protection Surge Protector DC-3G
|
Factory wholesale price surge arrester F type male pin to female jack gas discharge tube lightning protection 0-3GHz
|
|
|
|
Freq Range
|
DC-3GHz / DC-6GHz
|
|
|
Voltage
|
90V / 230V / 250V / 350V
|
|
|
Protection
|
Gas Discharge Tube / 1/4 wavelength
|
|
|
Insertion Loss
|
<0.4Db
|
|
|
Return Loss
|
<-26dB
|
|
|
Max Surge Voltage Let Through
|
<200 mV
|
|
|
Through Put Energy
|
<5 nJ
|
|
|
Impedance
|
50 OHMS / 75 OHMS
|
|
|
Max Power
|
50W
|
|
|
Ingress Protection
|
IP65
|
|
|
Grounding Screw/LUG
|
Y
|
|
|
VSWR
|
<1.15(DC-3G)（DC-6G)
|
|
|
Max Current Load
|
10A
|
|
|
Nominal Discharge Current (kAMP)
|
5 kAMP
|
|
|
Max Discharge Current (kAMP)
|
20 kAMP
|
|
|
Impulse Current (kAMP)
|
2.5 kAMP
|
|
|
Operating Temp(degrees C)
|
(-40 to +85) C
|
|
|
ROHS
|
Yes
|
|
|
ISO-9000 Certified
|
Yes
|
|
