Quick Details
-
Place of Origin:
-
Hubei, China
-
Product name:
-

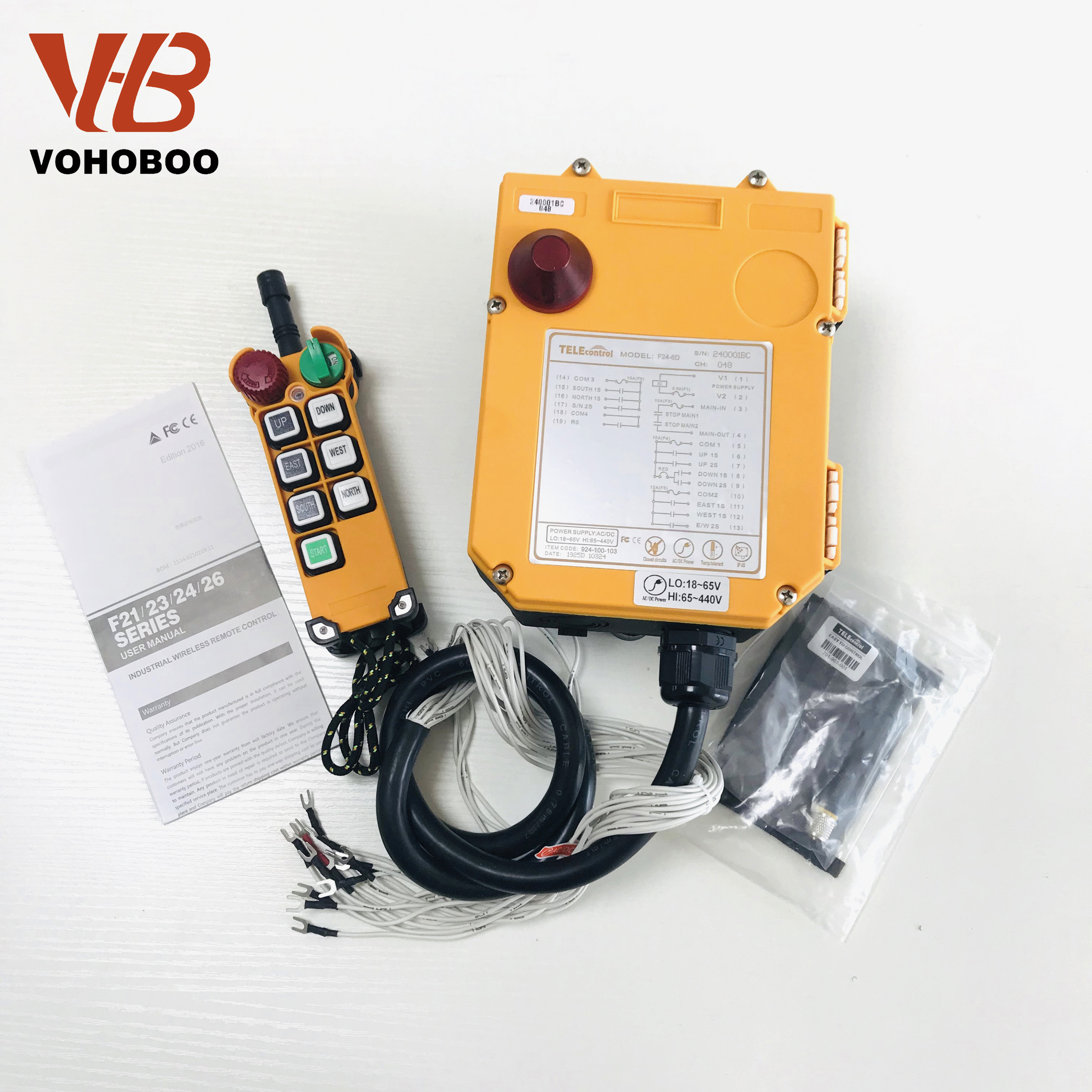

F24-6D Remote Control
-
Application:
-
Lifting machinery, crane,hydraulic crane, etc
-
Battery:
-
2 AA batteries
-
Temperature range:
-
- 40℃~+85℃
-
Control distance:
-
Approx 100m (200 meters is customized)
-
Frequency range:
-
VHF: 310~331 MHz; UHF: 425~446MHz
-
Enclosure protection class:
-
IP65
-
Usage:
-
Multifunctional
Quick Details
-
Function:
-
Waterproof, Digital LED Display
-
Brand Name:
-
VOHOBOO
-
Model Number:
-
F24-6D
-
Place of Origin:
-
Hubei, China
-
Product name:
-
F24-6D Remote Control
-
Application:
-
Lifting machinery, crane,hydraulic crane, etc
-
Battery:
-
2 AA batteries
-
Temperature range:
-
- 40℃~+85℃
-
Control distance:
-
Approx 100m (200 meters is customized)
-
Frequency range:
-
VHF: 310~331 MHz; UHF: 425~446MHz
-
Enclosure protection class:
-
IP65
-
Usage:
-
Multifunctional
Product Description
Features:
1. 7-12 buttons (D means double steps), STOP, START, spare buttons
2. Up to 20 control contacts
3. With battery voltage warning device, the power supply is cut off during low power
4. Safety switch key is to prevent from unauthorized user
5. Program the button function by computer interface
6. Up/down, east/west, south/north can be programmed to interlock or non-interlock
7. Power key can be programmed to start, toggle switch, normal or other functions
8. The spare buttons can be programmed to normal, interlock, toggle or start, etc
2. Up to 20 control contacts
3. With battery voltage warning device, the power supply is cut off during low power
4. Safety switch key is to prevent from unauthorized user
5. Program the button function by computer interface
6. Up/down, east/west, south/north can be programmed to interlock or non-interlock
7. Power key can be programmed to start, toggle switch, normal or other functions
8. The spare buttons can be programmed to normal, interlock, toggle or start, etc
Product Parameters
|
Transmitter Parameters: F24. -TX
|
|
|
|
Material
|
Glass-Fiber PA
|
|
|
Enclosure protection class
|
IP65
|
|
|
Frequency range
|
VHF: 310~331 MHz; UHF: 425~446MHz
|
|
|
Transmitter power
|
≤10dBm
|
|
|
Transmitter power supply
|
2 AA batteries
|
|
|
Safety code
|
32 bits (4.3 billion)
|
|
|
Temperature range
|
- 40℃~+85℃
|
|
|
Control distance
|
Approx 100m (200 meters is customized)
|
|
|
Receiver Parameters: F24-RXC
|
|
|
|
Material
|
Glass -Fiber PA
|
|
|
Enclosure protection class
|
IP65
|
|
|
Frequency range
|
VHF: 310~331MHz; UHF: 425~446MHz
|
|
|
Receiver sensitivity
|
-110dBm
|
|
|
Receiver power supply
|
18~65V AC/DC / 65~440V AC/DC ( optional )
|
|
|
Output contactor capacity
|
8A sealed relay output (with AC 250V/10A relays, 10A fuse)
|
|
|
Control distance
|
Approx 100m (200 meters is customized)
|
|
|
Safety code
|
32 bits (4.3 billion)
|
|
|
Temperature range
|
- 40℃~+85℃
|
|
