1. Easy operation touch screen for quick setting.
2. English operation interface.
3. DELTA Touch Screen
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Danrel
-
Voltage:
-
AC 220V±10%, 50/60Hz
-
Power:
-
1800W
-
Dimension(L*W*H):
-
3100*1230*2160 mm
-
Weight:
-
1340 kg
-
Rated Current:
-
18A
-
Language:
-
English
-
Air Consumption:
-
0.3 m3/min
-
Upper Roller Pressure:
-
0.5-4.5 KG/cm2
-
Temperature:
-
up to 750 ℃
-
Throat length:
-
2100MM
-
PVC Tape Size:
-
17~25MM
-
Wire Cord Diameter:
-
less than 6MM
-
Function:
-
Corrugated Flexible Hose Making Machine
-
Certification:
-
CE
Quick Details
-
Pipe Material:
-
PVC
-
Production Capacity:
-
1-10 m/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Danrel
-
Voltage:
-
AC 220V±10%, 50/60Hz
-
Power:
-
1800W
-
Dimension(L*W*H):
-
3100*1230*2160 mm
-
Weight:
-
1340 kg
-
Rated Current:
-
18A
-
Language:
-
English
-
Air Consumption:
-
0.3 m3/min
-
Upper Roller Pressure:
-
0.5-4.5 KG/cm2
-
Temperature:
-
up to 750 ℃
-
Throat length:
-
2100MM
-
PVC Tape Size:
-
17~25MM
-
Wire Cord Diameter:
-
less than 6MM
-
Function:
-
Corrugated Flexible Hose Making Machine
-
Certification:
-
CE
Product Description

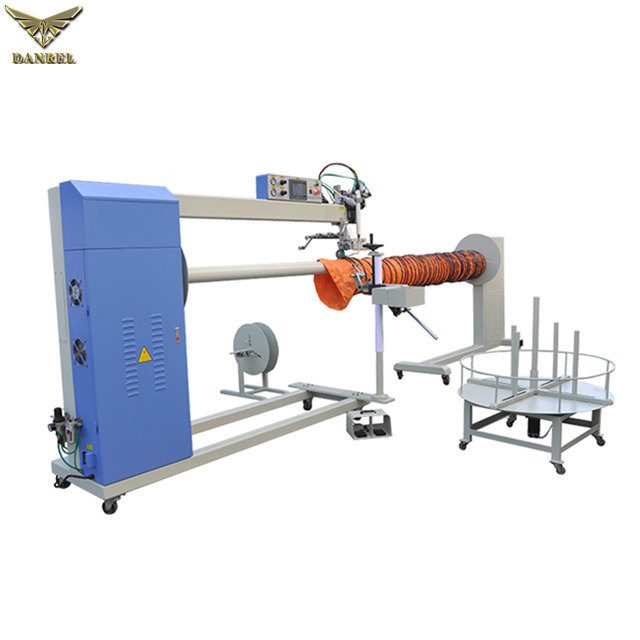

Function: (PVC Reinforced Ducting Making Welding Machine)
DR-V1800 Hot Air Welding Machine is specifically designed to weld flexible reinforced ducting. This machine will weld large reinforced tubes from 15” to any diameter and can easily add a wear strip to the outside.
Main Features
1. V1800 machine can easily add a wear strip with a wire core inside(for Spiral Welding).
2. This machine includes 4 parts: wire unwinder, PVC tape unwinder, hot air welder, finished ducting receiver.
3. Automatic Wire cord feeding, PVC strip unwinding, continuous operation for high speed production
4. Variable wire diameter and wire pitch for product versatility.
5. PLC/HMI easy operation touch screen , English Interface.
6. Precise Temperature control, max 750 ' C
7. Quick, repeatable head adjustments for precision welding.
8. Take away system for managing multiple ducting lengths.
9. Built for multiple-shift production, solid-steel structure design can last for multiple decades.
10. Designed for 24 hours continuous working purpose.
3. Automatic Wire cord feeding, PVC strip unwinding, continuous operation for high speed production
4. Variable wire diameter and wire pitch for product versatility.
5. PLC/HMI easy operation touch screen , English Interface.
6. Precise Temperature control, max 750 ' C
7. Quick, repeatable head adjustments for precision welding.
8. Take away system for managing multiple ducting lengths.
9. Built for multiple-shift production, solid-steel structure design can last for multiple decades.
10. Designed for 24 hours continuous working purpose.
QUALITY & RELIABILITY
1.
Lean manufacturing principles
2. Solid steel frame design
3. Designed and built for multiple decade use
4. Built for multiple shift production
5. Low maintenance for extended up time
6. First and last machine you will need for welding
2. Solid steel frame design
3. Designed and built for multiple decade use
4. Built for multiple shift production
5. Low maintenance for extended up time
6. First and last machine you will need for welding
|
Model NO.
|
DR-V1800
|
|
Hot Air Heater Power
|
3.5KW
|
|
Power Consumption
|
6KW
|
|
Power Supply
|
AC 220V±10%, 50/60Hz
|
|
Rated Current
|
18A
|
|
Welding Speed
|
1-18 meters/min
|
|
Working Pressure
|
0.5-0.7Mpa
|
|
Air Consumption
|
0.3M3/min
|
|
Seam Roller Size
|
23MM(customization offered)
|
|
Wire Cord Diameter
|
Less than 6MM
|
|
Main Machine Arm Length
|
2100MM
|
|
Receiving Arm Length
|
2000MM
|
|
Temperature
|
Max.750'C
|
|
Packing Dimension
|
A: L*W*H=3100*1230*2160 mm
B: L*W*H=2900*750*1700 mm
|
|
Gross Weight
|
1340 KGS
|
Main Parts
Our Company
Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. * Quality is our culture * Competitive Advantages * Market Niche * Trustworthy Supplier
Certifications
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
Case 1: L*W*H=310*123*2160CM
Case 2: L*W*H=290*75*172CM |
|
|
Weight
|
1340 KGS
|
|
|
Packaging Details
|
The normal package is Plywood box(Size: L*W*H). Fumigation certificate can be provided if needed.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Fragile parts will be seperately packed with cushion packing material |
|
FAQ
Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.
Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.
Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect
power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .
Our Service
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
