Good quality factory supply 50t/d incinerator waste garbage incinerator power generator incinerator

Good quality factory supply 50t/d incinerator waste garbage incinerator power generator incinerator

FOB Reference Price: Get Latest Price

≥1 Sets

US $5000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: Export Wooden Packing

Marketing Type:: Hot Product 2023

Weight (KG):: 2000 kg

Advantage:: Easy Opperation

Certification:: CE ISO

Feature:: Eco-friendly Machinery

Name:: Municipal Waste Incinerator

Raw material:: Ubran Waste Garbage

Function:: Waste Burning

Color:: Customized Color

Fuel:: Oil Fuel

Voltage:: 380v/220v

MOQ:: 1 Set

Quick Details

Production Capacity:: 50t/d

Place of Origin:: Henan, China

Brand Name:: FLYSUN

Material:: Export Wooden Packing

Marketing Type:: Hot Product 2023

Weight (KG):: 2000 kg

Advantage:: Easy Opperation

Certification:: CE ISO

Feature:: Eco-friendly Machinery

Name:: Municipal Waste Incinerator

Raw material:: Ubran Waste Garbage

Function:: Waste Burning

Color:: Customized Color

Fuel:: Oil Fuel

Voltage:: 380v/220v

MOQ:: 1 Set

Products Description

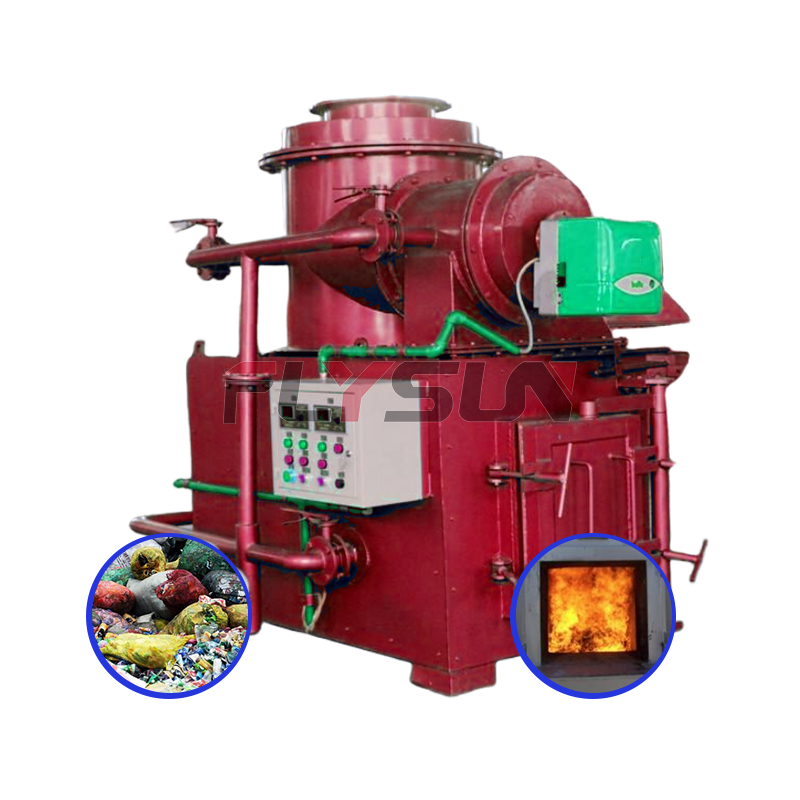

Municipal Waste Incinerator

The municipal waste incinerator has the characteristics of small size, high combustion efficiency, automatic control, reasonable combustion process, and high degree of harmlessness. It is an ideal choice. Used for garbage disposal in hospitals, hotels, various stations and industries.

The composition device of municipal waste incinerator include： Furnace body primary combustion chamber, secondary combustion chamber, cyclone dust collector, chimney, flue, piping system, high-pressure blower, negative pressure induced draft fan, primary combustion machine, secondary combustion machine, electric control cabinet, temperature display device, Detection device, spray tower device, activated carbon adsorption device, dust collector, chimney, etc.

Working Principle

The waste is put into the primary combustion chamber of the furnace body manually, and the primary combustion is started by automatic temperature control. According to the principle of combustion three T (temperature, time, eddy current), the waste is fully oxidized, pyrolyzed and burned in the combustion chamber of the furnace body. The flue gas generated by incineration enters the secondary combustion chamber, and the unburned harmful substances in the flue gas are further destroyed in the secondary combustion chamber. In order to completely decompose the unburned material and meet the emission requirements, the secondary combustion chamber is equipped with a burner to support combustion and a secondary air supply device to ensure that the gas is in full contact with oxygen at high temperature, and at the same time to ensure the residence time of the gas in the secondary combustion chamber and adjust the air supply volume according to the oxygen content of the flue gas at the exit of the secondary combustion chamber. The temperature of the secondary combustion chamber is controlled and the dust with large particles is removed by the dust collector, so that its incineration efficiency and destruction removal rate can reach more than 99%, so that it can achieve no odor, no stench , smoke-free effect, and meet the national emission standards, and then enter the chimney to discharge into the atmosphere, and the ash generated after combustion is manually removed, screened, transferred and buried.

Product Paramenters

Model	XJY-30	XJY-50	XJY-100	XJY-200	XJY-300	XJY-500
Capacity（kg/batch）	30-50	50-100	100-150	200-300	300-400	400-500
Bady size m(L×B×H)	1.45×0.9×2.75	1.8×1.15×3	2×1.4×3.5	2.2×1.4×3.8	3×2×4.8	3.3×2.3×4.8
Inlet size(mm)	480×600	620×800	760×960	900×1100	1080×1280	1400×1300
Funnel outside diameter(mm)	Ø280	Ø280	Ø300	Ø400	Ø460	Ø480
Induced draft fan	0.25kw	0.25kw	0.25kw	0.75kw	0.75kw	1.1kw 0.75kw
Combustion burner power/oil consumption	0.15kw 4-6kg/h	0.15kw 4-10kg/h	0.15kw 4-10kg/h	0.15kw 7-14kg/h	0.37kw 7-14kg/h	0.37kw 7-14kg/h
Re-combustion burner power/oil consumption	0.15kw 4-6kg/h	0.15kw 4-10kg/h	0.37kw 7-14kg/h	0.37kw 10-20kg/h	0.37kw 15-26kg/h	0.37kw 15-26kg/h
Voltage	380V 220V	380V 220V	380V 220V	380V 220V	380V 220V	380V 220V
Weight(kg)	3000	4000	7000	8000	13000	17000

Product Details

FLYSUN MSW sorting plant is an intelligent, high-tech product integrating mechatronics. It adopts first-class design concepts and manufacturing processes, complete configuration and reliable performance. At the same time, it integrates different technological of domestic and foreign high-tech enterprises, and combines the specific conditions of different contents of waste in different country.Realize garbage collection, garbage sorting and garbage recycling.

Waste sorting production line：

Urban waste, construction waste, or stale waste enters the feeder ——Bag breaking machine——Belt conveyor ——Waste trommel screen machine —— Magnetic separator —— Integrated air separator —— Manual sorting platform —— municipal waste incinerator —— Garbage packaging system —— Waste shredder machine

Box feeder

The waste is fed by the car or loader to the plate feeder, and the chain conveyor tranches the garbage to the subsequent uniform feeder.

Advantage:

1. The transmission system uses frequency conversion motor and electrical protection device, which has the characteristics of uniform speed regulation and automatic overload protection.

2. The rolling bearing support structure is used for all the products, with good sealing and lubrication performance, low resistance to movement and easy maintenance.

3. Truss structure frame body, light weight, good rigidity, small area, easy to adjust, disassemble and transport.

Bag breaking machine

The bag breaking machine is used to open plastic bags, woven bags, etc. used to transport garbage, and then transport the materials to the sorting and crushing system. This equipment replaces the traditional manual marking bag and improves the sorting efficiency.

Advantage:

1.Bag breaking rate>95%;

2.The shaft knife lengthening design can break medium and large bags;

3. Large-volume upper hopper, uniform discharge;

4.PLC monitoring card, blocking, automatic reverse, stop；

5.The shaft cutter can be customized according to the waste composition;

6.The speed must be high, and the processing capacity is large.

Trommel screen

The machine is an important equipment in the garbage comprehensive treatment line. The equipment designed and produced by our company has the advantages of strong sorting ability, high cost performance, strong adaptability to working conditions.
Advantage:
1.The rotating body rotates smoothly,the conveying speed is stable,low noise.

2.No material leakage and drop. 3.The overall equipment is wear-resistant, pressure-resistant,and acid-and alkali-resistant.

Magnetic separator

The metal magnetic separation system uses permanent magnets to separate iron and metal from garbage.

Advantage:
1.The body of the agnetic separator is made of steel structure,which is non-magnetic,so as to avoid attracting iron materials to the ody of the magnetic separator.
2.The magnetic separator adopts a special design to prevent the guide from eing stuck in the conveyor belt,thereby reducing the wear of the conveyor belt and reducing maintenance costs.

Integrated air separator

Integrated air separator , also called rotating drum density sorter. It consists of a centrifugal fan, a separating unit with rotating drum, a belt conveyor, and a settling chamber attached to it. According to the principle of aerodynamics, based on the law of settling of various solid wastes in the air, it can achieve the purpose of classification and recycling.

Advantage:

1.Fully sealed negative pressure sorting.no dust leakage

2. High sorting accuracy,high efficiency,large processing capacity 3.Humanized stepless adjustment of wind speed to meet the needs of materials with different attributes .

Manual sorting platform

Manual sorting platform is mainly used in the garbage disposal line can not rely on mechanical sorting parts, mainly used in the drum screen before sorting out large interference and the drum screen after the material and wind separation of the resource utilization of goods sorting position.

Advantage:

1. The sorting platform is a relatively closed space, with good ventilation and air conditioning device inside to ensure that the sorting personnel operate in a good working environment.

2. The color steel room is required to have good sealing performance and fireproof and heat insulation performance.

Municipal waste incinerator

Suitable for treating all kinds of animal carcasses and manure, medical solid waste, laboratory solid waste.

Advantage:

1. Smokeless and odorless, standard emission: the incinerator emission is smokeless and odorless, no smoke and odor, standard emission, emission standards to meet national emission standards.

2. High-temperature pyrolysis gasification technology: new high-temperature pyrolysis gasification technology, high-temperature incineration treatment, safe and pollution-free.

3. Simple structure, easy to operate: automatic control system, temperature setting, automatic temperature control, simple operation, easy to get started .

Horizontal baler machine

The machine uses hydraulic drive to compress the reversible garbage into bags to reduce the volume.The garbage packaging system is often used to dry compress waste with recyclable value.

Advantage：
1.Using PLC ,it can produce highly compressed waste bales .

2.Compressed bales can save warehouse and shipping space for customers.

Waste shredder machine

The equipment is mainly used in the recycling industry of waste materials, which not only greatly reduces the environmental pollution caused by waste materials, but also reduces the waste of waste material resources, which can be shredded into blocks of larger or more throwing materials, which is convenient for transportation and recycling again.

Advantage:
1. High output and strong structure 2.Stable performance and low noise 3.Automatic overload protection, low maintenance cost.

Customer Cases

In August 2015,a waste sorting line with 2500X12000mm trommel as the main body was sold to the United States.

Value:USD 430,000

In August 2018,a set of waste sorting line with 3000X8000mm trommel as the main body was sold to Venezuela. Value:USD 202352.00

In June 2019,a set of waste sorting line with Φ2000×6000mm trommel as the main body was sold to Philippines . Value: 600,000 RMB

Our Services

1.Free one-to-one consulting services and customized production programs.
2.Free trial machine, materials need to be provided by the customer, please make an appointment in advance.
3.One-year warranty for the whole machine, lifelong maintenance service.
