Quick Details
-
Certificate:
-
CE, CCC
-
Electrical life:
-
300,000 operations min.
-
Mechanical life:
-
1,000,000 operations min.
-
Weight:
-
130g
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Color:
-
blue
-
Certificate:
-
CE, CCC
-
Electrical life:
-
300,000 operations min.
-
Mechanical life:
-
1,000,000 operations min.
-
Weight:
-
130g

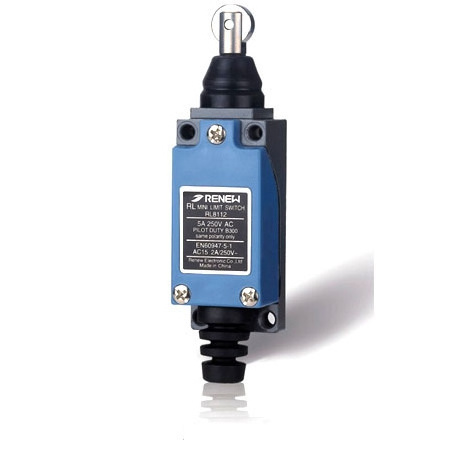

P/N: roller plunger type limit switch 2 no 2 nc limit switch
Model No.: RL8112 5A,250VAC
operating characteristics
|
Item |
Characteristics |
|
OF(N{gf})max. |
8.83{900} |
|
RF(N{gf})min |
1.47{150} |
|
PT.max (mm) |
1.5 |
|
MD.max(mm) |
0.7 |
|
OT.min(mm) |
4 |
|
TT.(mm) |
5.5 |
Rated value and characteristics
|
Rated working current |
5A 125,250VAC; 0.4A 125VDC(..) |
||
|
Contact type |
Contact resistance (initial value ) |
Under 15 mΩ (no include copper resistance ) |
|
|
Contact material |
Sliver cadmium oxide contact(if no need cadmium,[according with ROSH certificate ] can customize |
||
|
Electrical |
Insulation resistance (initial value) |
100 mΩ min. (use the DC500V insulation resistance test) |
|
|
Dielectric strength |
Between Non-continuous terminals (initial value): 1500V 50/60HZ for 1 min Between non voltage metal parts and each terminal: 2000V 50/60HZ for 1min Between ground and each terminal: 2000V 50HZ for 1 min
|
||
|
Mechanical |
Shock resistance |
In the free position |
Less than 98m/s2(10G) |
|
In the full operating position |
Less than 294m./s2(30G) |
||
|
Vibration resistance |
1.5mm double amplitude 10-55HZ |
||
|
Expected Life |
Mechanical |
10,000,000 operations min. (on/off frequency 120 operations/min) |
|
|
Electrical |
300,000 operations min. (rated load ), electromagnetism contactor FC-100(AC200V) load ; 5,000,000 operations min. |
||
|
Using condition |
Ambient temperature /Ambient humidity |
-20~+60 95%RH max. (at +5~20) |
|
|
The max on/off frequency |
120 operations/min |
||
Applications:
Factory currency machine : project machine , transport machine , assembly line , injection molding machine, machine tool and so on.
Warranty period: 12 months.
