Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
WenZhou, China
-
Brand Name:
-
ZONYAN
-
Model Number:
-
ZY-HTP-E
-
Dimensions(L*W*H):
-
875x675x1573mm
-
Weight:
-
160.0 KG
-
Platen Size:
-
Other
-

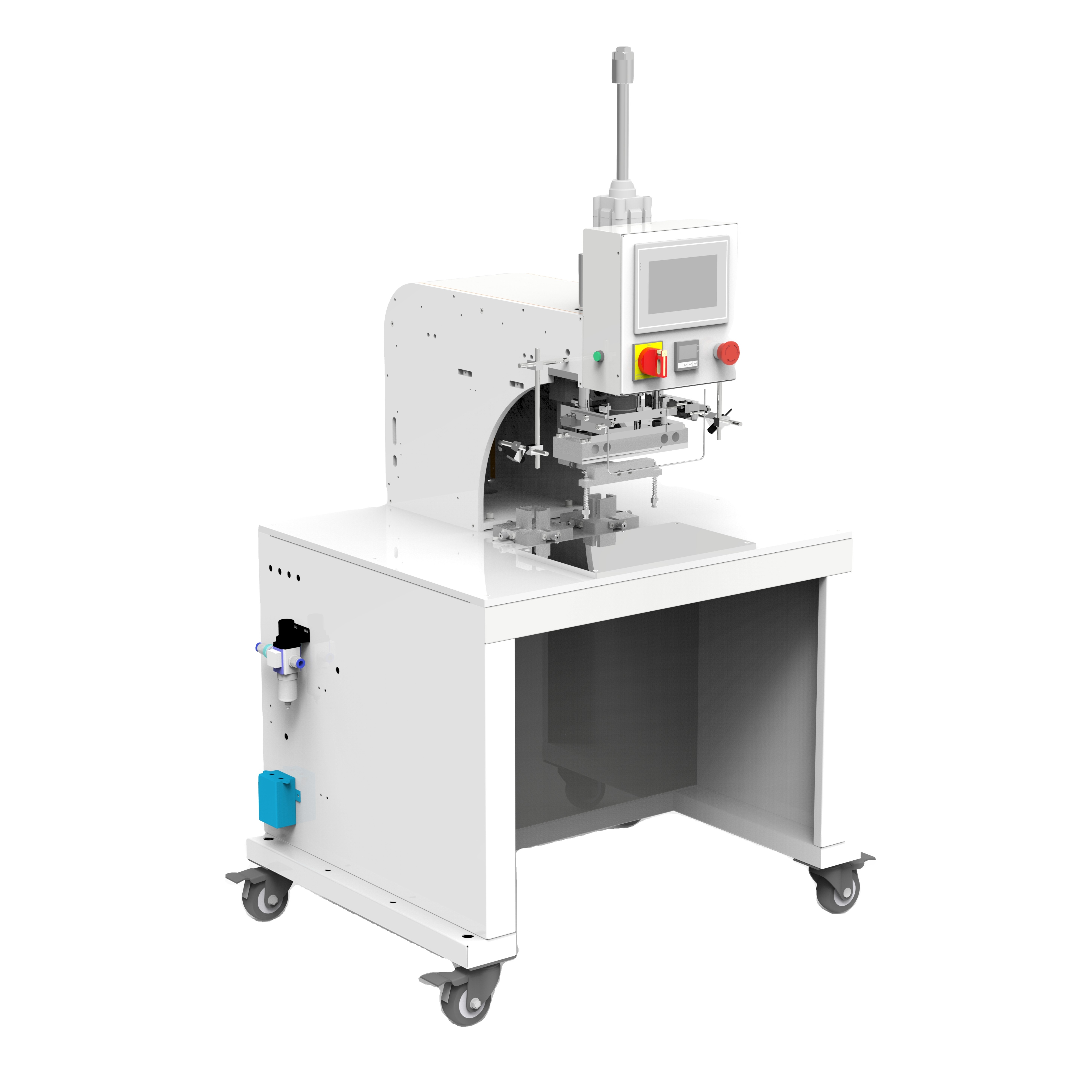

Product name:
-
Bronzing embossing machine
-
Advantage:
-
High Efficiency Automatic Working
-
Feature:
-
High Efficiency
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
single color
-
Voltage:
-
220V
-
Place of Origin:
-
WenZhou, China
-
Brand Name:
-
ZONYAN
-
Model Number:
-
ZY-HTP-E
-
Dimensions(L*W*H):
-
875x675x1573mm
-
Weight:
-
160.0 KG
-
Platen Size:
-
Other
-
Product name:
-
Bronzing embossing machine
-
Advantage:
-
High Efficiency Automatic Working
-
Feature:
-
High Efficiency
Scope of application:
Widely use in the clothes, bags, shoes, leather and other relevant industries thermal transfer for label.
Features:
1, Intellectualized human- machine interface, Chinese/English/Vietnamese systems, easy to operate.
2, Use the high stability rotary cylinder, infeeding label faster, higher precision.
3, Can form a dedicated label printer, can print the label timely according to the requirements.
4, Easy to operate, worker only need put the material according the locating piece, novices can easy to handle, greatly reduce the factory training cost, and the output will not decrease when the skilled worker leaves.
5, High precision, the maximum yield 1200pcs/hour.
6, Temperature, pressure, pressing time can be adjusted according to the press effect, and also can set the trouble alarm of temperature trouble alarm, pneumatic pressure to ensure the product quality.
|
Model No. |
Machine measure(mm) |
Wood case measure(mm) |
N.W/ G.W (kgs) |
Capacity |
|
ZY-HTP-E |
875x675x1573 |
975x775x1520 |
160/200 |
1200pcs/hour |
|
Voltage |
Air pressure |
Power |
Heat transfer temperature |
|
|
AC220V50HZ |
0.45~0.55mpa |
1000W |
30~280℃ |
Contrast:
|
|
Capacity |
The impact of skilled and novice |
Operator |
Feeding way |
Infeeding label way |
Precision of putting label |
|
Traditional machine |
800pcs/hour |
big |
1 |
Manual |
manual infeeding label |
±1mm |
|
ZY-HTP-E |
1200pcs/hour |
small |
1 |
Manual |
Automatic infeeding label |
±0.1mm |
Precautions and maintenance of equipment
1. Install the template at the center of print workbench.
2. Don't adjust the balance of the panel on a large scale.
3. Any part of the body can not be put into the print workbench to avoid crush and burn.
4. Regularly drain the water in the air compressor to improve the life of pneumatic components.
5. Keep the equipment clean and moving parts lubricant.
