Quick Details
-
Product name:
-
touch screen foil film
-
Calibration method:
-
Automatic
-
Touch points:
-
10 /20/40touch points
-
Operating System:
-
XP, 7,8,10,linux, above android 4.0
-
Interface:
-
USB 2.0(full-speed)
-
Application:
-
For projector/LCD screen
-
Lifespan:
-
9years
-
driver compatibility:
-
drive-free,plug and play
-
Thru-glass capability:
-
Maximum 10mm
Quick Details
-
Type:
-
Capacitive
-
Brand Name:
-
YAMA
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
touch screen foil film
-
Calibration method:
-
Automatic
-
Touch points:
-
10 /20/40touch points
-
Operating System:
-
XP, 7,8,10,linux, above android 4.0
-
Interface:
-
USB 2.0(full-speed)
-
Application:
-
For projector/LCD screen
-
Lifespan:
-
9years
-
driver compatibility:
-
drive-free,plug and play
-
Thru-glass capability:
-
Maximum 10mm

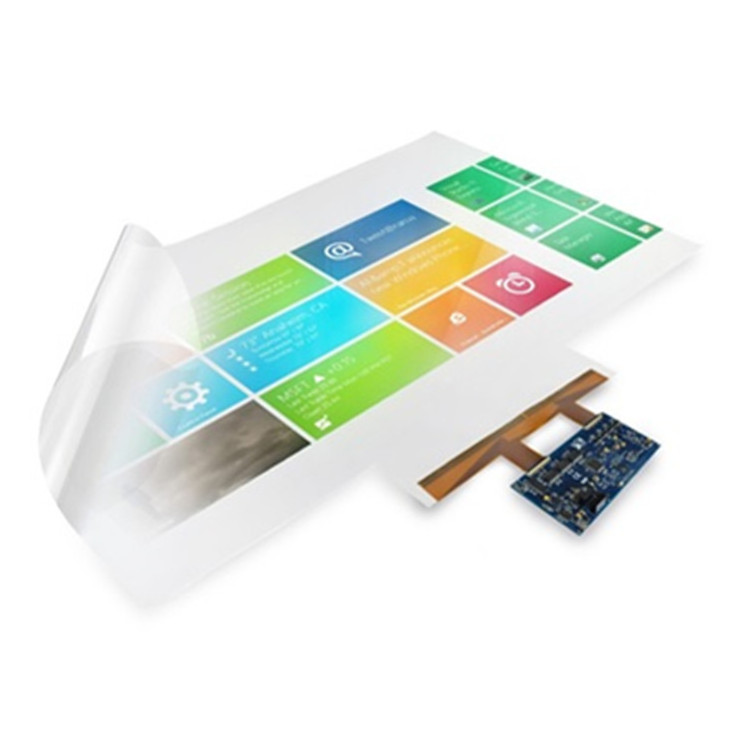

32inch multitouch usb interactive touch screen Foil film
Touch screen foil film specification:
Touch Foil Film(Interactive Projection Foils) can be applied directly to the inside of the window and
activated from outside.It also can be applied onto the TFT-LCD screen.
Standard Size:
7'',8'',9'',10.1'',12'',15'',17'',19'',22'',24'',27'',30'',40'',42'',46'',47'',50'',52'',55'',57'',60'',70'' 80'',84'',90'',100''
Installation: Attached to the glass, LCD or other media
Accessories:Each Touch Foil Film complete with USB cable, software/drivers, software user guide, earthing cable and installation guide.
Connect port: USB. Driver: windows 7,windows8
Light transmittance: 99.7%
Position: 1mm (relative position), 3mm (absolute position), No drift
Respond speed: 0.01s-0.05s according to the thickness of glass
Lift time: 7-9years lifespan.
Working temperature: -20 -+70 C. Working humidity: 0% - 95%
Tightness: Confirm to NEMA4 and IP64 standard
Interactive touch foil film specification:
|
Detection Method: |
Projected Capacitance technology using horizontal vertical wires |
|
Screen Sizes: |
From: 7’’up to 120" . Available in 4: 3 & 16: 9 format. |
|
Position accuracy: |
Approximately 3 mm absolute, 1 mm relative. No drift |
|
Alignment: |
Software drivers provide a calibration facility |
|
Sensitivity: |
Adjustable by software. Can be programmed for different thickness of glass. |
|
Speed of response: |
Depends upon glass thickness. Typically 50 to 100ms. |
|
Output: |
USB 2.0 |
|
Operating system: |
Windows XP & Vista. Windows7 windows8 Android,Linux,MAC |
|
Temperature : |
-20 ℃ to +70 ℃ |
|
Humidity Controller: |
0% to 95%. |
|
Light Transmission: |
Over 93% |
How to use touch screen foil film?
1. Projector+ rear projection film+ touch foil film+glass windows
2. LCD screen+touch foil film+ glass windows
touch screen foil film advantage:
1. Super-thin ≤100um
2. transparent appearance over 93%
2. High definition, Stable touch
3. Well-positioned ,and support multi touch points
4. Through the glass or other objects to touch just like gesture
5. The size can be customized
Touch Foil Film CE,ROHS Certifications
Packing: Cylinder
Shiping: By sea, by air and by expresses delivery
1.Trade terms
>>
FOB,CIF,EXW
2.Payment terms
>>
TT,Western Union,PayPal,
Credit card,E-checking
3.Payment condition
>>
50% deposit in advance,50% balance before delivery
4.Delivery time
>>
5~7days after deposit,3~4 working days for inventory
5.Packing
>>
Neutral carton,wooden case for large size
6.Shipping
>>
By sea,by air and by express
