Quick Details
-
Brand Name:
-
ZAIHUI
-
Model Number:
-
PERC, All Black, Half Cell
-
Certificate:
-
OEM
-

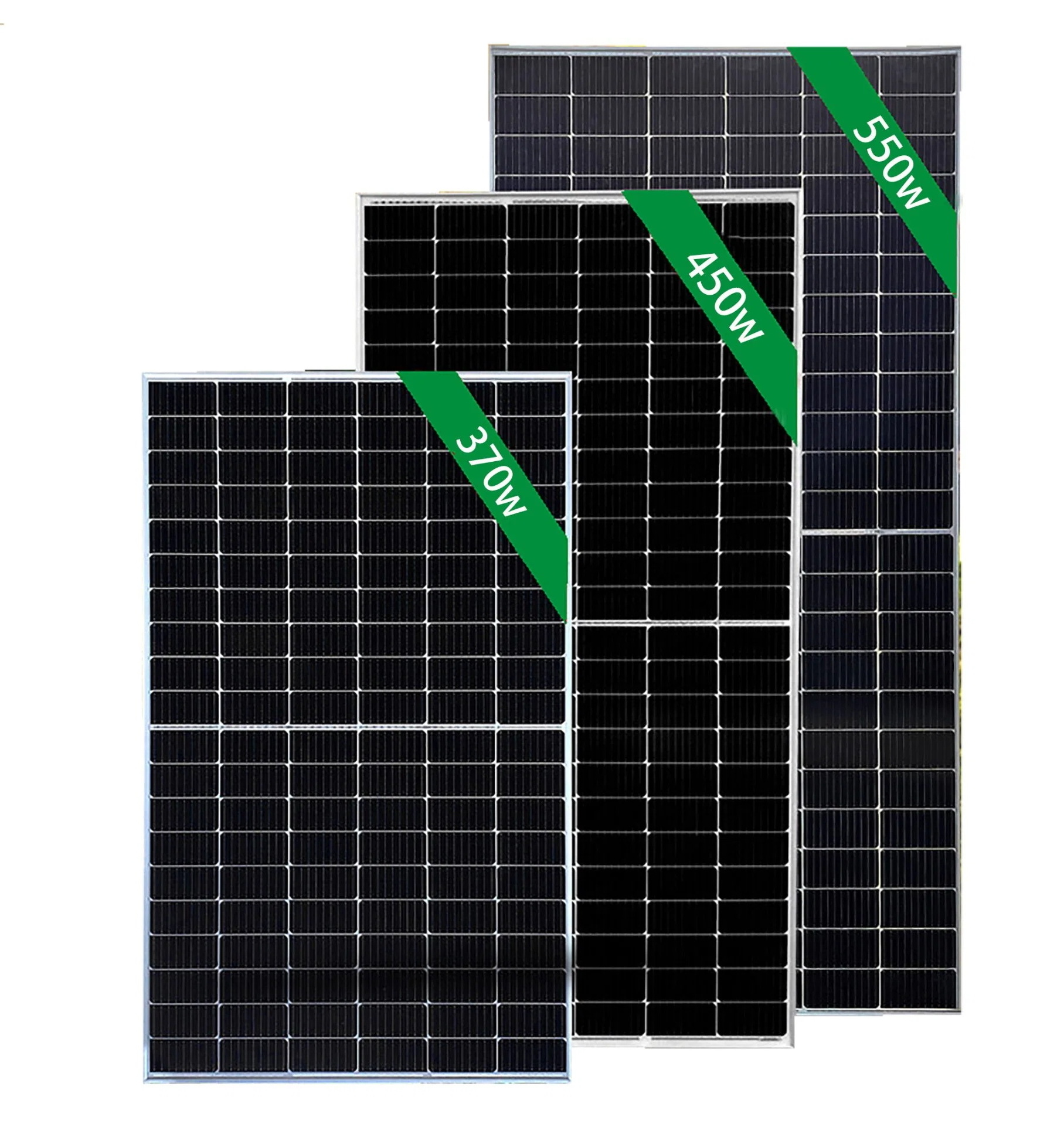

Product name:
-
Solar Cell Panel
-
Application:
-
Solar Power System
-
Material:
-
Monocrystaline Silicon
-
Efficiency:
-
20%-23.5%
-
Keyword:
-
Solar Cells
-
Model Type:
-
Monocrytalline Solar Cells
-
Power watt:
-
480W/485W/490W/495W/500W/505W/510W/515W
-
Brand:
-
ZAIHUI
-
Weight:
-
23.5kg
-
OEM Order:
-
Acceptable
Quick Details
-
Type:
-
PERC, MWT, IBC, HJT, hbc, N-TYPE, TOPCON, PET
-
Cell Efficiency:
-
18-550W
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZAIHUI
-
Model Number:
-
PERC, All Black, Half Cell
-
Certificate:
-
OEM
-
Product name:
-
Solar Cell Panel
-
Application:
-
Solar Power System
-
Material:
-
Monocrystaline Silicon
-
Efficiency:
-
20%-23.5%
-
Keyword:
-
Solar Cells
-
Model Type:
-
Monocrytalline Solar Cells
-
Power watt:
-
480W/485W/490W/495W/500W/505W/510W/515W
-
Brand:
-
ZAIHUI
-
Weight:
-
23.5kg
-
OEM Order:
-
Acceptable
Product Description
Product Paramenters
|
MECHANICAL DATA
|
|
|
|
|||
|
Module Dimensions
|
2278*1134mm*35mm
|
|
|
|||
|
Weight
|
28.5kg
|
|
|
|||
|
Glass
|
Single glass, 3.2mm coated tempered glass
|
|
|
|||
|
Junction-Box
|
Split junction box, IP68, 3 diodes
|
|
|
|||
|
Cables
|
4mm2, positive 400 / negative 200mm, length can be customized
|
|
|
|||
|
Cell Orientation
|
144cells(6*24)
|
|
|
|||
|
ELECTRICAL CHARACTERISTICS
|
|
|
|
|
||||
|
Minimum performance at standard test conditions, stc1 (power tolerance 0~+5w)
|
|
|
|
|
||||
|
Model
|
LR5-72HTH-570
|
LR5-72HTH-575
|
LR5-72HTH-580
|
LR5-72HTH-585
|
||||
|
Max. Power
|
570
|
575
|
580
|
585
|
||||
|
Open Circuit Voltage
|
51.91
|
52.06
|
52.21
|
52.36
|
||||
|
Short Circuit Current
|
14.07
|
14.14
|
14.20
|
14.27
|
||||
|
Max. Power Voltage
|
43.76
|
43.91
|
44.06
|
44.21
|
||||
|
Max. Power Current
|
13.03
|
13.10
|
13.17
|
13.24
|
||||
|
Efficiency²
|
22.1
|
22.3
|
22.5
|
22.6
|
||||
Packing & Delivery
Packing
:1200PCS/Carton
Deliver time:15-20 days
