Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dahan
-
Weight (KG):
-
125 kg
-
Product name:
-
belt conveyor
-
Keyword:
-
conveyor
-
Motor:
-
Vertical Vibrating Motor
-
Feature:
-
High Effciency
-
Machine type:
-
linear
-
Used for:
-
transport
-
Customized:
-
Support
-
After-sales Service Provided:
-
After-sales Service
-
belt width:
-
3mm/5mm/7mm/10mm
Quick Details
-
Power:
-
Other
-
Warranty:
-
Unavailable
-
Width or Diameter:
-
300mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dahan
-
Weight (KG):
-
125 kg
-
Product name:
-
belt conveyor
-
Keyword:
-
conveyor
-
Motor:
-
Vertical Vibrating Motor
-
Feature:
-
High Effciency
-
Machine type:
-
linear
-
Used for:
-
transport
-
Customized:
-
Support
-
After-sales Service Provided:
-
After-sales Service
-
belt width:
-
3mm/5mm/7mm/10mm
Product Introduce
Light belt conveyors are different from fixed belt conveyors and are mainly used in the chemical, electronic, and food processing industries. It has the characteristics of small transportation volume, low belt speed and stable operation. Compared with belt conveyors, due to the higher precision, the production cost is relatively large. The main specifications are 400mm, 500mm, 600mm, 800mm, etc., and the height is determined according to the actual production situation.
How to choose belt conveyor suitable for you?
(1)What’s capacity?
(2)How long you need conveying distance?
(3)What’s material you need conveying?
(4)What’s max inclined angle?
(2)How long you need conveying distance?
(3)What’s material you need conveying?
(4)What’s max inclined angle?
Tell me those data, we can help you choose the best belt conveyor for you.
Product Details
Main Features
1) Mobile belt conveyor is suitable for limited space, it can be normal operation whether indoors or outdoors,but to minimize the rainy day operations.
2) Moving and through performance is pretty, can be directly loading operations, material handling and other occasions. it can be applied logistics loading and unloading operations.
3) Easy to operate, the machine is equipped with electrical control box contains a master switch, a lift switch. Without human duty, the boot can work.
|
Belt width
(mm)
|
Conveying length(m)
Power(kw)
|
|
|
Conveying speed
(m/s)
|
Conveying amount
(t/h)
|
||
|
B400
|
≤10
|
12-15
|
15-30
|
1.25-2.0
|
30-60
|
||
|
|
3
|
3-4
|
4-7.5
|
|
|
||
|
B500
|
≤10
|
12-15
|
15-30
|
1.25-2.0
|
40-80
|
||
|
|
3
|
4-5.5
|
5.5-7.5
|
|
|
||
|
B650
|
≤10
|
12-15
|
15-30
|
1.25-2.0
|
80-120
|
||
|
|
4
|
7.5
|
7.5-11
|
|
|
||
|
B800
|
≤10
|
12-15
|
15-30
|
1.25-2.0
|
120-200
|
||
|
|
4
|
7.5
|
7.5-15
|
|
|
||
|
B1000
|
≤10
|
10-20
|
20-40
|
1.25-2.0
|
200-320
|
||
|
|
5.5
|
7.5-11
|
11-22
|
|
|
||
|
B1200
|
≤10
|
10-20
|
20-40
|
1.25-2.0
|
290-480
|
||
|
|
7.5
|
7.5-15
|
15-30
|
|
|
||
|
B1400
|
≤10
|
10-20
|
＜20-40
|
1.25-2.0
|
400-680
|
||
|
|
11
|
15-22
|
22-45
|
|
|
||
|
B1600
|
≤10
|
10-20
|
＜20-50
|
1.25-2.0
|
600-1080
|
||
|
|
15
|
22-30
|
30-75
|
|
|
||
|
B1800
|
≤10
|
10-20
|
＜20-50
|
1.0-2.0
|
200-1500
|
||
|
|
18.5
|
30-45
|
45-110
|
|
|
||
|
B2000
|
≤10
|
10-20
|
＜20-40
|
1.0-2.0
|
1000-2000
|
||
|
|
22
|
45-55
|
55-132
|
|
|
||
|
B2400
|
≤10
|
10-20
|
＜20-40
|
1.0-2.0
|
1500-3000
|
||
|
|
30
|
55-75
|
75-185
|
|
|
||

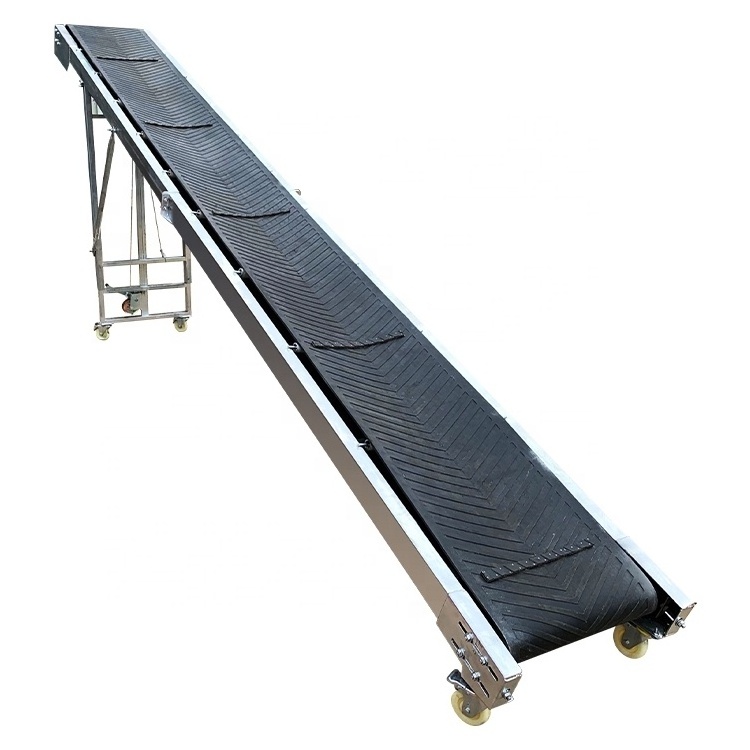

Product Photograph
Application
Belt conveyor can be used in mining, coal industry, crusher and bulk or composite material screening. Applicable to steel,port, coal, power, cement and other industries. Key markets include coal-fired power plants; Coal, metal and non-metallic mines; Steel mills and foundries; Pulp and paper mills; Grain, food and chemical processing business; Cement and concrete producers; And bulk transport facilities.
Related Products
Packing & Delivery
1) We offer free,professional,fumigation-free,and standards wooden case according to product size,and 1 set/case.If you have special equipment please just inform us.
2) We usually use international well-known logistics companies,according to your shipping address.If you
have a designated forwarder company,please let us know.
2) We usually use international well-known logistics companies,according to your shipping address.If you
have a designated forwarder company,please let us know.
Why choose Dahan
We have established an efficient product quality control system in accordance with ISO9001&CE Quality Control System standard.
Each process comes with a detailed quality record, and only the qualified products will be subjected to further processing. Thus we can guarantee that all the vibrating screen machine, vibrator motor, vibrating feeder and conveyor system are up to client’s requirements.
Each process comes with a detailed quality record, and only the qualified products will be subjected to further processing. Thus we can guarantee that all the vibrating screen machine, vibrator motor, vibrating feeder and conveyor system are up to client’s requirements.
