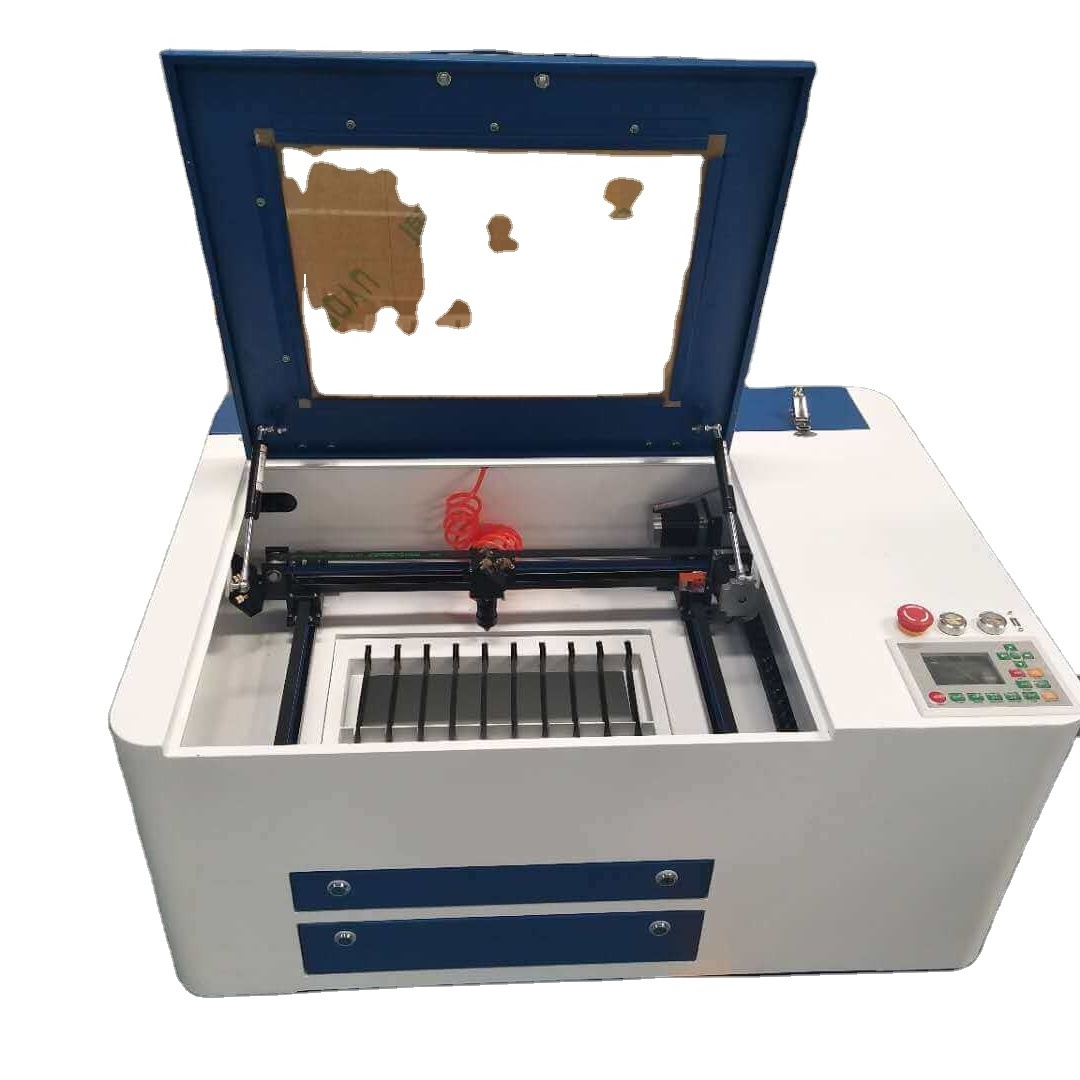

mini laser engraver silicone bracelets, machine to make rubber stamp

mini laser engraver silicone bracelets, machine to make rubber stamp

FOB Reference Price: Get Latest Price

≥1 Sets

US $1500

≥10 Sets

US $400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Graphic Format Supported:: AI, BMP, Dwg, DXF, PLT

Cooling Mode:: WATER COOLING

Place of Origin:: China

Brand Name:: EXTRACNC

Dimension(L*W*H):: 810*510*250

Weight (KG):: 240 KG

Certification:: ISO

data transfer interface ::: USB

software::: CorelLaser

laser power::: 40W

working table::: Aluminum plate

supply voltage::: 110/220V±10%,50/60Hz

machine color::: blue and white

Max cutting speed:: 600mm/s

Cutting thickness:: 0-15mm

Quick Details

Engraving Area:: 300*200mm

Laser Type:: CO2

Engraving Speed:: 12000mm/min

Graphic Format Supported:: AI, BMP, Dwg, DXF, PLT

Cooling Mode:: WATER COOLING

Place of Origin:: China

Brand Name:: EXTRACNC

Dimension(L*W*H):: 810*510*250

Weight (KG):: 240 KG

Certification:: ISO

data transfer interface ::: USB

software::: CorelLaser

laser power::: 40W

working table::: Aluminum plate

supply voltage::: 110/220V±10%,50/60Hz

machine color::: blue and white

Max cutting speed:: 600mm/s

Cutting thickness:: 0-15mm

Mini laser engraver silicone bracelets, machine to make rubber stamp

Looking the distributors all over the world

Applicable Material

The Computerized Mini Laser Engraving Machine is suitable for various materials, such as bamboo piece, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, fabrics, paper ,film, canvas , Acrylic, Plastics and painted/coated metals (metals that are not coated or painted will require a LMM spray). If you want to make sure this laser engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and I will test it for you. Just email me for details.

Applicable Industry

This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, , shoemaking, furniture , model industry, craftwork and other industries.

Advantage of our mini laser engraving machine

1. DSP offline control system with USB interface. It accepts all major graphics formats via USB connection and work without computer.

2. High working speed, max could be up to 1200mm/s. A. It adopts high performance motor, guarantee high working speed, B. It uses square X, Y rails, which can improve stability.

3. Strong software function, compatible with Coreldraw, Autocad and so on.

4. Motorized up-down honeycomb worktable. 150mm adjustable by motor, allows thick object to put inside.

5. Portable to move. Small size but with large workarea, more convenient to move.

6. Well designed appearance.

The parameter of our nini laser engraving machine

Laser Power	40W
Supply Voltage	110/220V ±10% ,50/60Hz
Working Size	300mmx200mm
Working table	Aluminum plate
Up and down size	50mm
Table control mode	Manual
Max engraving Speed	60000mm/min
Max cutting speed	600mm/s
Locating Precision	<0.01mm
Min shaping character	Character 2x2mm ,Letter 1x1mm
Resolution	0.0125mm
Cutting thickness	0-15mm
Control Configuration	DSP
Data transfer Interface	USB
System Environment	WINDOWS XP/Win7/8
Graphic file format	BMP,PLT,AI,CDR,DXF
256 Color separation output	Support
360 degree slope engraving	Support
Off line working	Support
Cooling Way	Water Cooling
Operating temperature	5 ° C -35 ° C
Water protecting sensor and alarm	Yes
Net Weight	30kg
Machine dimension	810x510x260mm
