Quick Details
-
Voltage:
-
Customers' Requirements
-
Dimension(L*W*H):
-
1900*1450*1400
-
Weight:
-
1.1T
-
Air capacity:
-
7m3/min
-
Marketing Type:
-
New Product 2023
-
Product name:
-
7 bar 8 bar 10 bar Portable Screw Air Compressor For Drilling Rig
-
Local Service Location:
-
Philippines Mexico Russia
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE & ISO
-
Brand:
-
Sollant
-
Cooling:
-
Air Cooilng
-
Feature:
-
Durable
-
Motor:
-
IP54
-
Compressed medium:
-
Air Gas
-
MOQ:
-
1 Set
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sollant
-
Model Number:
-
SLTDP-29
-
Voltage:
-
Customers' Requirements
-
Dimension(L*W*H):
-
1900*1450*1400
-
Weight:
-
1.1T
-
Air capacity:
-
7m3/min
-
Marketing Type:
-
New Product 2023
-
Product name:
-
7 bar 8 bar 10 bar Portable Screw Air Compressor For Drilling Rig
-
Local Service Location:
-
Philippines Mexico Russia
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE & ISO
-
Brand:
-
Sollant
-
Cooling:
-
Air Cooilng
-
Feature:
-
Durable
-
Motor:
-
IP54
-
Compressed medium:
-
Air Gas
-
MOQ:
-
1 Set
Product Description

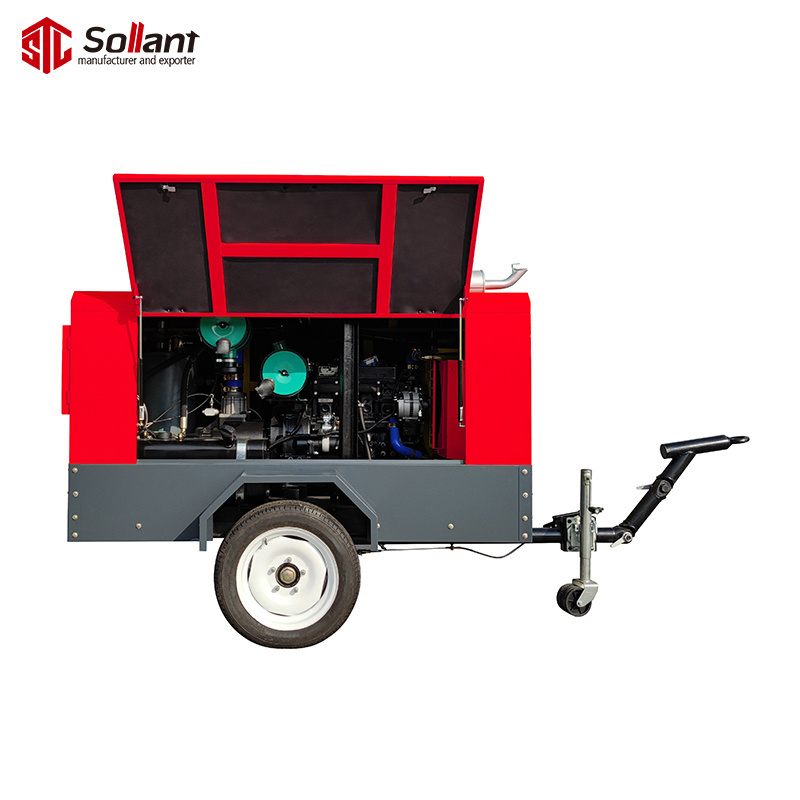

7 bar 8 bar 10 bar Portable Screw Air Compressor For Drilling Rig
|
Product Name
|
7 bar 8 bar 10 bar Portable Screw Air Compressor For Drilling Rig
|
|
Model
|
SLT-7/7
|
|
Type/lifting method
|
Diesel, mobile/forklift
|
|
The compression medium
|
Air
|
|
Exhaust Temperature（℃）
|
≤65℃
|
|
Rated exhaust pressure (MPa)
|
0.7
|
|
Rated volume flow (m³/min)
|
7
|
|
Diesel engine parameters
|
29kw, 1500rmp
|
|
Diesel fuel tank capacity (L)
|
60
|
|
Oil capacity (L)
|
6
|
|
Coolant capacity (L)
|
11
|
|
Dimension（mm）L*W*H
|
2100*1560*1400
|
|
Total weight（T）
|
1.1
|
|
Outlet pipe diameter
|
G1"(1 inch tube, sealed, internal thread)
|
|
Model
|
Power/Horsepower (KW/HP)
|
Minimum fuel consumption (g/kw/h)
|
Outlet size
|
Dimensions
|
|
SLTDP-3/7
|
Yunnei29/40
|
180
|
25
|
1630*1200*1420
|
|
SLTDP-5/7
|
Xichai37/50
|
180
|
25、32
|
1630*1200*1420
|
|
SLTDP-7/7
|
Xichai55/75
|
180
|
25、25
|
1630*1200*1420
|
|
SLTDP-10/8
|
Xichai70/95
|
180
|
25、25
|
1630*1200*1420
|
|
SLTDP-13/10
|
Cunmins 92/125
|
180
|
25、40
|
2200*1750*2000
|
|
SLTDP-16/8
|
Cunmins 132/180
|
160
|
25、40
|
2900*1630*1720
|
|
SLTDP-16/15
|
Cunmins 140/190
|
180
|
25、50
|
2400*1750*2000
|
|
SLTDP-15/13
|
Cunmins 140/190
|
180
|
25、50
|
2400*1750*2000
|
|
SLTDP-17/8
|
Cunmins 140/190
|
180
|
25、50
|
2400*1750*2000
|
|
SLTDP-17/13
|
Cunmins 140/190
|
180
|
25、50
|
2400*1750*2000
|
|
SLTDP-18/17
|
Cunmins 162/220
|
160
|
25、50
|
3040*2000*2200
|
|
SLTDP-21/13
|
Cimmins 162/220
|
160
|
25、50
|
3040*2000*2200
|
|
SLTDP-21/17
|
Cunmins 191/260
|
160
|
25、50
|
3040*2000*2200
|
|
SLTDP-17/25
|
Cunmins 228/310
|
160
|
25、50
|
3040*2000*2200
|
|
SLTDP-25/17
|
Cunmins 228/310
|
160
|
25、50
|
3040*2000*2200
|
|
SLTDP-18/20
|
Cunmins 162/220
|
160
|
25、50
|
3040*2000*2200
|
|
SLTDP-20/20
|
Cunmins 191/260
|
160
|
25、50
|
3040*2000*2200
|
|
SLTDP-20/25
|
Cunmins 228/310
|
160
|
25、50
|
3040*2000*2200
|
|
SLTDP-28/15
|
Cunmins 228/310
|
160
|
25、50
|
3040*2000*2200
|
|
SLTDP-24/22
|
Cunmins 228/310
|
160
|
25、50
|
3040*2000*2200
|
|
SLTDP-29/25
|
Cunmins 310/420
|
160
|
25、50
|
3600*2000*2200
|
|
SLTDP-31/25
|
Cunmins 310/420
|
160
|
25、50
|
3600*2000*2200
|
|
SLTDP-35/30
|
Cunmins 410/550
|
160
|
25、50
|
3800*2000*2580
|
Applications
: mining, hydropower, oil and gas exploitation, borehole, shipyard, construction, chemical industry, quarry, sandblasting, pipeline pressure test, public works, etc.
Q1: Are you a factory or trade company?
A1: We are an integration of industry and trade. The factory and international trade department are in the same place.
Q2: What the exact address of your company?
A2: C109, No.215, Songri Center, Beihongqiao, Jiading District, Shanghai, China
Q3: Warranty terms of your machine?
A3:24 months for the whole machine, 36 months for air end, technical support for life.
Q4: How long is your delivery?
A4: 25-30 days after receiving your 30% down payment.
Q5: Terms of payment?
A5: T/T and L/C at sight.
Q6: What is the MOQ?
A6: 1 PC.
Q7: Can you accept OEM orders?
A7: Yes, with a professional design team, OEM orders are highly welcome.
Q8: Can you accept color customization?
A8: Yes we can.
Q9: Will you provide some spare parts for the air compressor?
A9: Yes, of course.
Q10: What's your factory's production capacity?
A10: About 1000 units per month.Thank you.
A1: We are an integration of industry and trade. The factory and international trade department are in the same place.
Q2: What the exact address of your company?
A2: C109, No.215, Songri Center, Beihongqiao, Jiading District, Shanghai, China
Q3: Warranty terms of your machine?
A3:24 months for the whole machine, 36 months for air end, technical support for life.
Q4: How long is your delivery?
A4: 25-30 days after receiving your 30% down payment.
Q5: Terms of payment?
A5: T/T and L/C at sight.
Q6: What is the MOQ?
A6: 1 PC.
Q7: Can you accept OEM orders?
A7: Yes, with a professional design team, OEM orders are highly welcome.
Q8: Can you accept color customization?
A8: Yes we can.
Q9: Will you provide some spare parts for the air compressor?
A9: Yes, of course.
Q10: What's your factory's production capacity?
A10: About 1000 units per month.Thank you.
