Quick Details
-
Brand Name:
-
luwei
-
Standard or Nonstandard:
-
Standard
-
Connection:
-
threaded
-
Threaded:
-
Npt bspt bsp
Quick Details
-
Port Size:
-
1/4"--2"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
lwfp-046
-
Brand Name:
-
luwei
-
Standard or Nonstandard:
-
Standard
-
Connection:
-
threaded
-
Threaded:
-
Npt bspt bsp

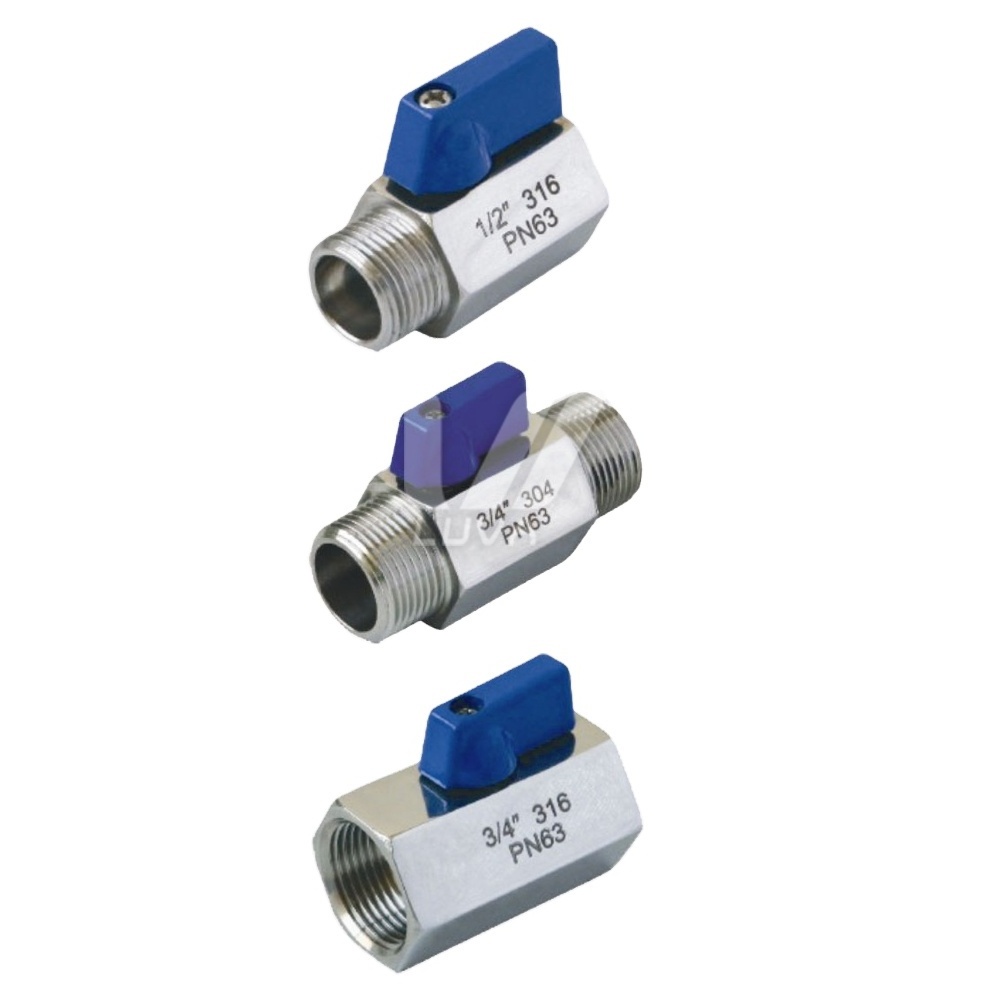

PN63 3/4 female male threaded stainless steel mini ball valve
Banner
wholeheartedly welcome new and old customers coming negotiations, cooperation! Create brilliant!
Product Description
Product Display
wholeheartedly welcome new and old customers coming negotiations, cooperation! Create brilliant!
| Description | |||
| Product Name | mini ball valve | ||
| Modle | lwfp-046 | ||
| Design | full port | ||
| Material | SS304/SS316 | ||
| Working pressure | 1000WOG/PN63 | ||
| Size range | 1/4"--2"(DN8-DN50) | ||
| End Connection | BSP/BSPT/NPT/DIN2999/DIN259 Threaded | ||
| Mode of operation | Manual | ||
| Options | with or with locking device | ||
| Nominal pressure | PN1.6 | ||
| Strength testing pressure | PT:2.4,3.8,6.0,9.6M.pa | ||
| Seat testing pressure(hight pressure) | 1.8,2.8,4.4,7.1Mpa | ||
| Applicable media | Q11F-1C water oil gas /Q11F-1P Nitric acid /Q11F-1R Acetic acid | ||
| Applicable temperature | -40℃to180℃ | ||
| Product standard | ASME B16.34 | ||
| Wall thickness standard | ASME B16.34 GB12224 | ||
