Quick Details
-
Drilling Speed:
-
Normal Speed
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Xiashi
-
Model Number:
-
Z5030
-
Dimension(L*W*H):
-
1080*620*2150mm
-
Power (kW):
-
0.85/1.1KW
-
Weight (KG):
-
450 KG
-
name:
-
Z5030 vertical drilling machine price pillar type
-
Max drilling capacity:
-
30mm
-
Column dia.:
-
120mm
-
Spindle travel:
-
135mm
-
Spindle taper:
-
MT3
-
Spindle speeds range and steps:
-
65-2600rpm and 12 steps
-
Dimension of worktable size:
-
500*440mm
-
Table travel:
-
490mm
-
vertical drilling machine:
-
drilling machine
-
drilling machine for sale:
-
metal drilling machine
Quick Details
-
type:
-
Pillar Drilling Machine
-
Max. Drilling Dia. (mm):
-
30
-
Range of Spindle Speed(r.p.m):
-
65 - 2600 r.p.m
-
Drilling Speed:
-
Normal Speed
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Xiashi
-
Model Number:
-
Z5030
-
Dimension(L*W*H):
-
1080*620*2150mm
-
Power (kW):
-
0.85/1.1KW
-
Weight (KG):
-
450 KG
-
name:
-
Z5030 vertical drilling machine price pillar type
-
Max drilling capacity:
-
30mm
-
Column dia.:
-
120mm
-
Spindle travel:
-
135mm
-
Spindle taper:
-
MT3
-
Spindle speeds range and steps:
-
65-2600rpm and 12 steps
-
Dimension of worktable size:
-
500*440mm
-
Table travel:
-
490mm
-
vertical drilling machine:
-
drilling machine
-
drilling machine for sale:
-
metal drilling machine
Z5030 vertical drilling machine price pillar type
Feature
1. drilling machine Z5030
2. Professional factory
3. high precision
4. Max. drilling diameter: 30mm
Main Specification
| MODEL | 5040 | 5035 | 5030 |
| MAX DRILL CAPACITY (mm) | 40 | 35 | 30 |
| MAX TAPPING DIAMETER (mm) | M27 | M24 | M20 |
| Column diameter(mm) | 160 | 140 | 120 |
| Spindle travel (mm) | 180 | 160 | 135 |
| spindle axis to column generating line (mm) | 360 | 330 | 320 |
| Max distance between spindle nose to table(mm) | 590 | 590 | 550 |
| Max distance between spindle nose to base (mm) | 1180 | 1180 | 1100 |
| Spindle tapper (mm) | MT4 | MT4 | MT3 |
| spindle speed range (r/min) | 42~2050 | 75~2500 | 65~2600 |
| spindle speed series | 12 | 12 | 12 |
| spindle feeds (mm/r) | 0.07 0.15 0.26 0.40 | 0.1,0.2,0.3 | 0.1,0.2,0.3 |
| working table size (mm) | 550X470 | 500*440 | 500*440 |
| table travel (mm) | 550 | 550 | 409 |
| dimension of base table (mm) | 450X440 | 400*390 | 400*390 |
| Total height (mm) | 2330 | 2300 | 2050 |
| Main motor (kw) | 2.2/2.8 | 1.5/2.2 | 0.85/1.1 |
| coolant motor (W) | 40 | 40 | 40 |
| GW/NW (kg) | 750/680 | 670/600 | 500/440 |
| Packing size (cm) | 108X62X245 | 108X62X230 | 108X62X215 |

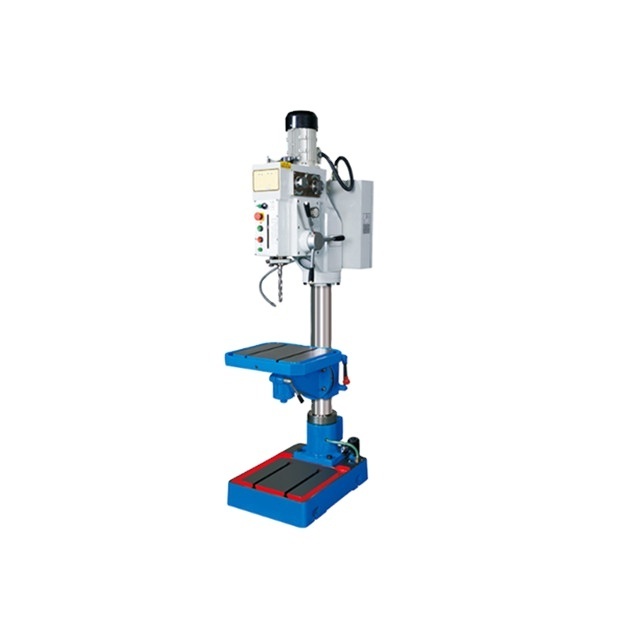

Picture for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
